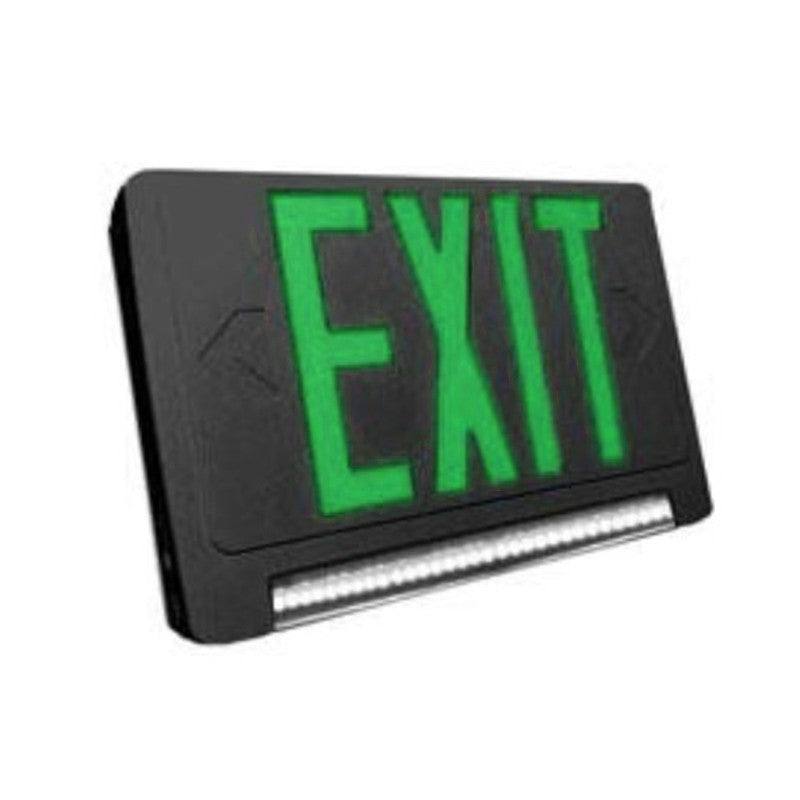

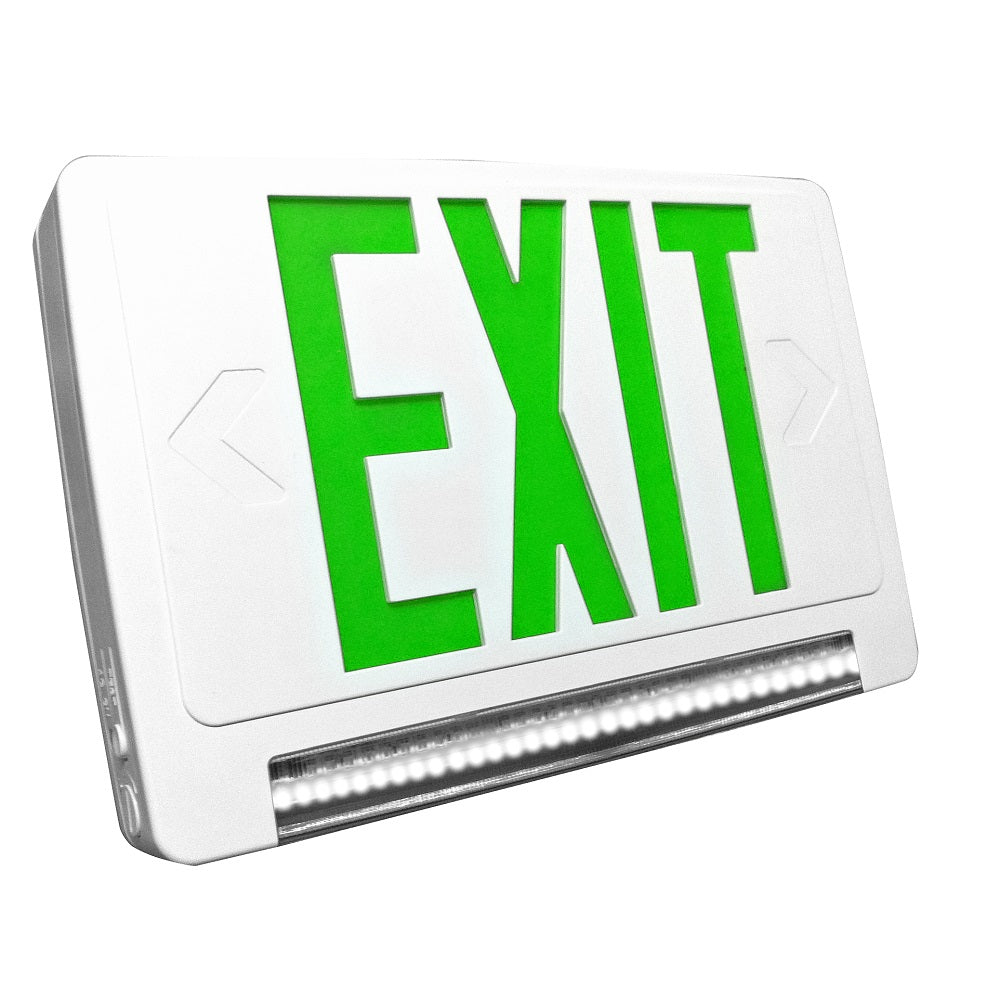

The All LED Exit & Emergency Lightpipe Thermoplastic Combo CLPU is a high-efficiency, code-compliant emergency lighting solution engineered for superior performance and modern architectural applications. Featuring advanced lightpipe technology, this unit delivers enhanced illumination uniformity and extended coverage, making it ideal for commercial, industrial, and institutional environments.

Equipped with ultra-bright white LED emergency lighting, each lightpipe produces 4.5 watts of output (36 LEDs), ensuring powerful and consistent light distribution along egress paths. The system utilizes a chrome-plated metallized reflector combined with a UV-stabilized acrylic lightpipe lens, optimizing light output while maintaining durability over time.

The integrated LED exit sign offers long-lasting red or green illumination, ensuring high visibility and energy efficiency. Designed with reliability in mind, the unit includes a 4.8V maintenance-free NiCd battery that provides a minimum of 90 minutes of emergency backup power during outages.

For ease of maintenance and compliance, the unit features a power-on/charge indicator LED and a push-to-test switch, allowing quick and simple system checks to meet required safety standards. The internal solid-state transfer switch ensures seamless transition to emergency mode, while the automatic two-rate charger restores battery capacity within 24 hours.

Installation is fast and flexible thanks to the included EZ-snap mounting canopy, allowing top or end mounting, along with a universal wall-mount knockout pattern.

With added remote capacity of 1.0 watt, this unit provides additional flexibility for expanded emergency lighting setups.

Technical Specifications

General Features:

• Product Type: LED Exit & Emergency Lightpipe Combo (CLPU)
• Housing: Durable thermoplastic construction
• Mounting: Wall, top, or end mount (EZ-snap canopy included)
• Exit Illumination: Red or Green LED
• Optics: Lightpipe technology with UV-stabilized acrylic lens
• Reflector: Chrome-plated metallized reflector

Emergency Lighting:

• Light Source: Ultra-bright white LEDs
• Output: 4.5W per lightpipe (36 LEDs x 0.125W)
• Light Distribution: Enhanced via lightpipe design

Electrical:

• Input Voltage: Dual 120V/277V
• Remote Capacity: 1.0W standard

Battery & Backup:

• Battery Type: 4.8V NiCd (Nickel-Cadmium)
• Backup Duration: Minimum 90 minutes
• Recharge Time: 24 hours
• Charger: Fully automatic solid-state, two-rate charger
• Transfer Switch: Internal solid-state automatic operation

Indicators & Controls:

• Indicator Light: Charge rate / Power ON LED
• Test Feature: Push-to-test switch for code compliance

Installation Features:

• EZ-snap mounting canopy (top/end mount)
• Universal knockout pattern for wall mounting
