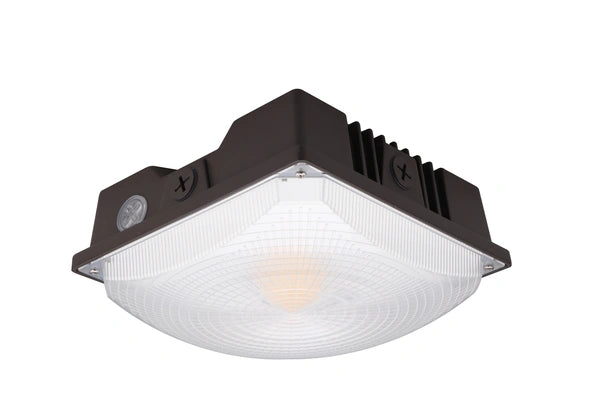

75W Square LED Canopy Light | 9.600Lm Max | 120/277V | 3-CCT Selectable | Commercial Led CLCN11-75WBSP1DA1

Upgrade exterior and covered commercial spaces with the high-performance CLCN11-75WBSP1DA1 Square LED Canopy Light, engineered for superior durability, energy efficiency, and customizable illumination. Built with a rugged die-cast aluminum alloy housing and finished in an attractive bronze finish, this premium 75W LED canopy fixture is ideal for parking garages, gas stations, loading docks, walkways, entrances, carports, and security lighting applications.

This versatile canopy light features tunable CCT technology, allowing you to select between 3000K warm white, 4000K cool white, and 5000K daylight to match your project’s lighting needs. It delivers up to 9600 lumens of bright, uniform illumination, providing excellent visibility and safety in outdoor and covered environments.

Designed for harsh weather conditions, this fixture is IP65 rated, making it suitable for wet locations and protected against dust and water intrusion. The integrated striped clear plastic lens ensures wide, even light distribution with a 160° beam angle, minimizing shadows and improving coverage.

Electrical performance is optimized with 120-277V universal voltage, power factor >0.9, and THD <20%, ensuring stable operation and efficient energy use. With CRI >80, colors appear more natural and clear for pedestrians, vehicles, and surveillance visibility.

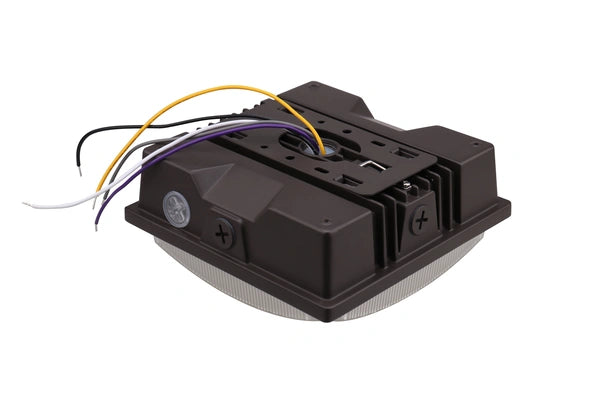

This canopy fixture supports 0-10V dimming, allowing greater lighting control, energy savings, and compatibility with occupancy sensors or daylight harvesting systems.

Rated for 50,000 hours, DLC Premium Listed, and UL Certified, the CLCN11-75WBSP1DA1 is built for long-term reliability and backed by a 5-year limited warranty.

Technical Specifications:

• Model Number: CLCN11-75WBSP1DA1
• Item #: L75WTUNCNSCL11
• Product Type: Square LED Canopy Light
• Wattage: 75W
• Lumen Output: 9000 / 9600 / 9600 lumens
• Selectable CCT: 3000K / 4000K / 5000K
• Efficiency: 122-135 lm/W
• CRI: >80
• Beam Angle: 160°
• Voltage: 120-277V
• Power Factor: >0.9
• THD: <20%
• Dimming: 0-10V
• Housing: Die-Cast Aluminum Alloy
• Lens: Striped Clear Plastic Lens
• Finish: Bronze
• IP Rating: IP65 Wet Location Rated
• Dimensions: 10.01 x 10.01 x 4.15 in
• Operating Temperature: -22°F to 113°F (-30°C to 45°C)
• Rated Life: 50,000 hours
• Certifications: DLC Premium Listed, UL Certified
• Warranty: 5-Year Limited

Ideal Applications:

• Parking garages
• Gas station canopies
• Walkways and breezeways
• Building entrances
• Loading docks
• Carports
• Security lighting zones

Choose the CLCN11-75WBSP1DA1 Square LED Canopy Light for durable construction, tunable lighting flexibility, and dependable outdoor performance.
