Corona Aluminum Large Umbrella Path Light | 12VAC/DC | Corona Lighting CL-616

$60.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

UL Listed

Illuminate pathways, garden beds, and outdoor landscapes with the Corona Lighting CL-616 Large Umbrella Area Light. Built from heavy-duty die-cast aluminum housing and matching stem with a 1/2" NPT male threaded hub, this low-voltage fixture offers superior weather resistance and durability against outdoor elements. It features a clear polycarbonate sprinkler guard lens that protects the internal lamp from moisture and direct water spray.

Equipped with a Single Contact (S.C.) bayonet socket for easy tool-free lamp replacement, the CL-616 operates on 12V AC/DC systems and supports a variety of S.C. Bayonet LED options, including 3W Bluetooth mesh smart RGB-WW or CCT, and 2W or 2.5W standard LED lamps. The fixture is prewired with a 3-foot 18-2 direct burial cable, includes an 8-1/2" ABS plastic ground spike, and is available in three architectural finishes: Black, Granite, and Bronze.

Key Features:

  • Heavy-Duty Aluminum Construction: Durable die-cast aluminum housing and stem designed for long-term outdoor performance.

  • Weather-Protected Lens: Clear polycarbonate sprinkler guard lens guards against water penetration and mechanical impact.

  • Tool-Free S.C. Bayonet Socket: Single Contact bayonet base allows quick, tool-free lamp maintenance and upgrades.

  • Versatile 12V LED Lamp Compatibility: Accepts 12V S.C. Bayonet LEDs, including 3W Bluetooth mesh smart RGB-WW/CCT and 2W/2.5W standard LEDs.

  • Direct Burial Wiring: Prewired with a 3-foot 18-2 SPT2-W cable for fast connection to low-voltage landscape lighting transformers.

Technical Specification Table

Technical Specification Corona Lighting CL-616 Product Specifications
Model Number CL-616
Product Type Large Umbrella Area Light
Housing Material Die-Cast Aluminum
Stem Specifications Die-Cast Aluminum Pipe with 1/2" NPT Male Threaded Hub
Lens Type Clear Polycarbonate Sprinkler Guard Lens
Socket Type Single Contact (S.C.) Bayonet Socket
Lamp Options 12V S.C. Bayonet LED (3W BT Smart RGB-WW / CCT; 2W LED; 2.5W LED; or No Lamp)
Operating Voltage Range 9-17V AC/DC (CCT/BT Lamps) | 8-21V AC/DC (Standard LEDs)
Required Transformer Remote 12V Low Voltage Transformer Required
Lead Wire 3 ft. 18-2 SPT2-W Direct Burial Wire
Included Mounting 8-1/2" Black ABS Ground Spike with 1/2" NPT Male Hub

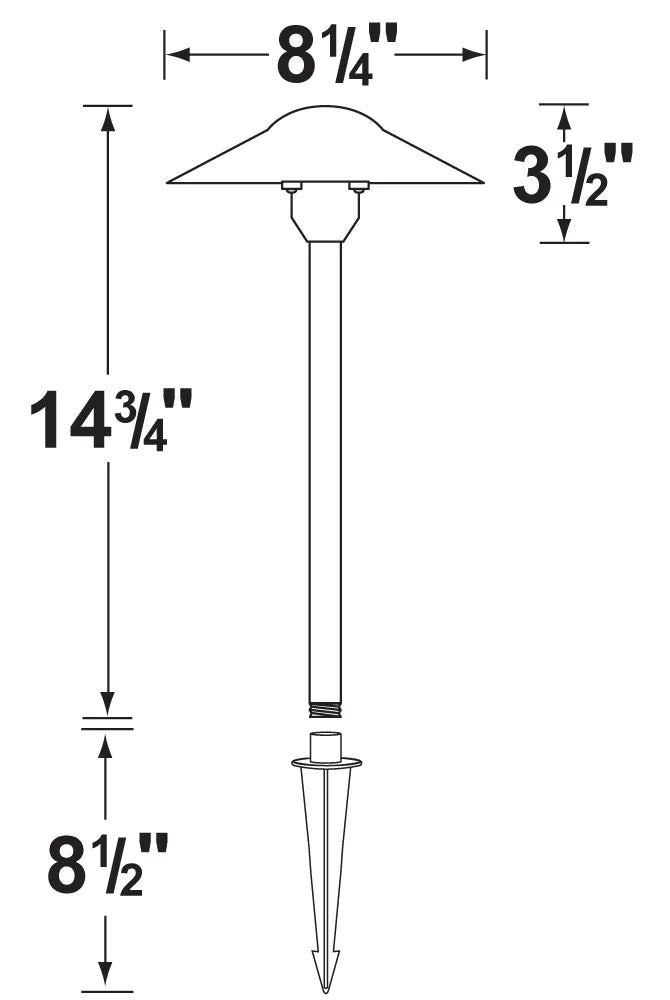

Dimensions Hood Diameter: 8-1/4" | Overall Height: 14-3/4"
Shipping Weight 2.0 lbs

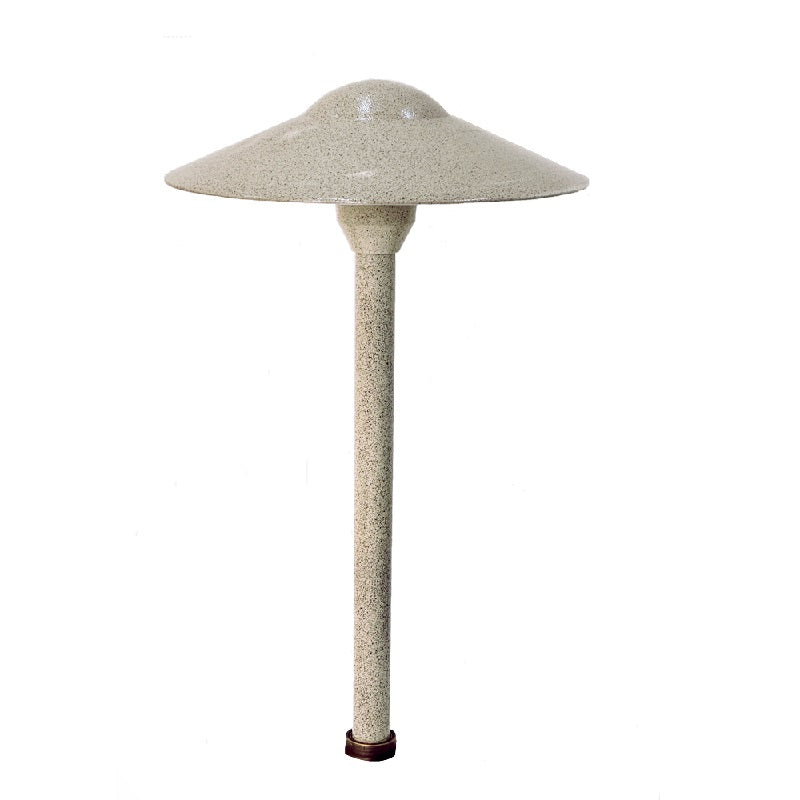

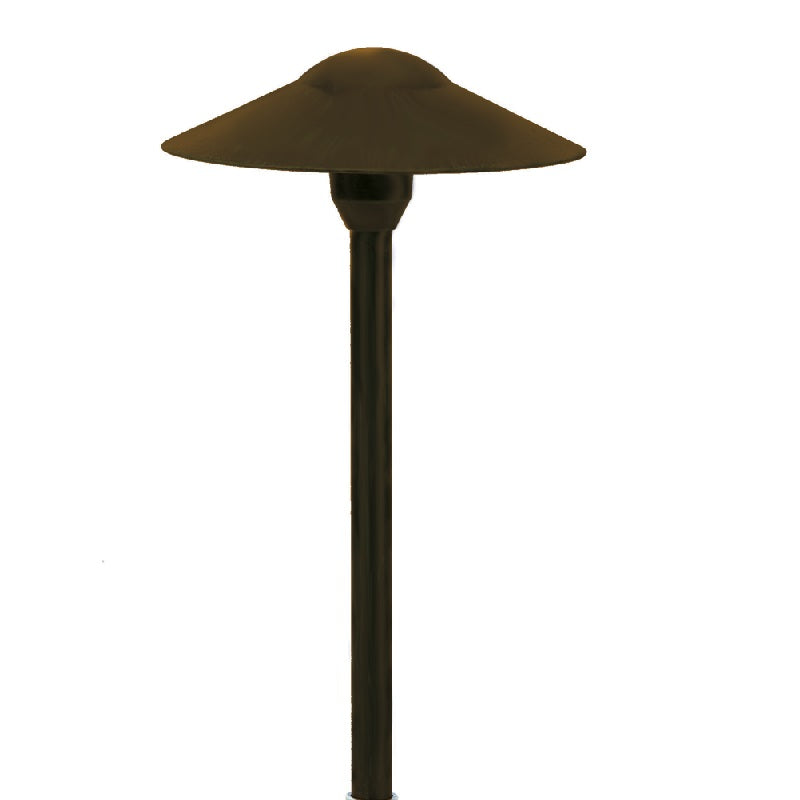

Finish Options Black (BK), Granite (GT), Bronze (BZ)
Warranty 1-Year Limited Warranty on Housing

Product Logic & Ordering Catalog Matrix

Catalog Number Material Base / Socket Included Mounting Wiring Available Finishes Voltage
CL-616-BK Die-Cast Aluminum S.C. Bayonet 8-1/2" ABS Ground Spike 3' 18-2 Direct Burial Black 12V AC/DC
CL-616-GT Die-Cast Aluminum S.C. Bayonet 8-1/2" ABS Ground Spike 3' 18-2 Direct Burial Granite 12V AC/DC
CL-616-BZ Die-Cast Aluminum S.C. Bayonet 8-1/2" ABS Ground Spike 3' 18-2 Direct Burial Bronze 12V AC/DC

Packaging & Logistics Specifications

Packaging Parameter Specifications
Product Weight 2.0 lbs
Included Hardware 8-1/2" ABS Plastic Ground Spike (1/2" NPT Top Hub)
Recommended Connectors CX-LOC Quick-Locking Wire Connectors (Sold Separately)
