Hooded Bullet Up-Light Directional Light | 470 Lumens Max | Corona Lighting CL-550B
- SKU: CL-550B-AB
- Category: Best Sellers, Corona Lighting
Certs:
Highlight architectural elements, trees, and tall landscape features with the Corona Lighting CL-550B Economy Brass Hooded Bullet Up-Light. Constructed from heavy-duty, corrosion-resistant cast brass, this architectural-grade spotlight combines solid brass construction with an extended hood design to minimize glare and control spill light. It features a clear, heat-resistant convex glass lens that shields the interior lamp assembly from environmental moisture, dust, and outdoor wear.
Equipped with a top-grade fixed ceramic bi-pin socket with an integrated retention clip, the CL-550B accepts standard 12V MR-16 lamps (available in 5W Bluetooth mesh smart RGB-WW, 3.5W, 5W, or 6W LED options, as well as without a lamp). The fixture features an adjustable cast brass swivel knuckle with a thumb screw and a 1/2" NPT male threaded hub for precise aiming. Prewired with a 3-foot 18-2 direct burial wire lead and supplied with an injection-molded ground spike, it is available in Antique Bronze (AB) and Black Brass (BB) finishes.
Key Features:
-
Corrosion-Resistant Cast Brass: Architectural-grade cast brass body delivers exceptional strength and corrosion resistance in harsh soils.
-
Extended Anti-Glare Hood: Integrated hood profile reduces direct lamp glare and shields light spill for precise accent illumination.
-
Heat-Resistant Convex Glass Lens: Protective convex lens sheds water effortlessly while resisting high thermal stress.
-
Adjustable Cast Brass Swivel Knuckle: Swivel knuckle with thumb screw and 1/2" NPT male threaded hub allows tool-free directional adjustment.
-
Tool-Free MR-16 Ceramic Socket: Top-grade ceramic bi-pin socket with retention clip ensures firm contact and simple lamp servicing.
Technical Specification Table
| Technical Specification | Corona Lighting CL-550B Product Specifications |
| Model Number | CL-550B |
| Product Grade | Architectural Grade |
| Product Type | Hooded Bullet Up-Light / Spot Light |
| Housing Material | Corrosion-Resistant Cast Brass |
| Lens Type | Clear, Heat-Resistant Convex Glass Lens |
| Socket Type | Fixed Ceramic MR-16 Bi-Pin Socket with Retention Clip |
| Lamp Compatibility | 12V MR-16 (5W BT Smart RGB-WW; 3.5W, 5W, 6W LED; or No Lamp) |
| Operating Voltage Range | 9V–17V AC/DC |
| Required Power Source | Remote 12V Low-Voltage Transformer Required |
| Lead Wire | 3 ft. 18-2 SPT2-W Direct Burial Wire |
| Knuckle Specification | Adjustable Cast Brass Swivel with Thumb Screw & 1/2" NPT Male Hub |
| Included Mounting | Injection-Molded ABS Spike with 1/2" NPT Female Hub |

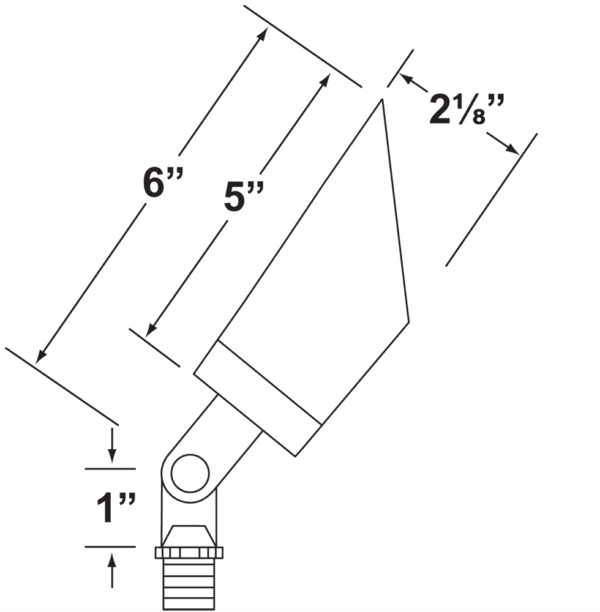

| Dimensions | Head Diameter: 2-1/8" | Length: 6" |
| Shipping Weight | 1.50 lbs |
| Available Finishes | Antique Bronze (AB), Black Brass (BB) |
| Warranty | 10-Year Warranty on Housing |
Product Logic & Ordering Catalog Matrix
| Catalog Number | Housing Material | Socket Base | Included Lamp Option | Voltage Range | Included Mounting | Available Finishes |
| CL-550B-AB | Cast Brass | MR-16 Bi-Pin | No Lamp | 9V-17V AC/DC | Ground Spike | Antique Bronze (AB) |
| CL-550B-BB | Cast Brass | MR-16 Bi-Pin | No Lamp | 9V-17V AC/DC | Ground Spike | Black Brass (BB) |
| CL-550B-AB-L-ED3.5 | Cast Brass | MR-16 Bi-Pin | 3.5W MR-16 LED | 9V-17V AC/DC | Ground Spike | Antique Bronze (AB) |
| CL-550B-AB-L-ED5 | Cast Brass | MR-16 Bi-Pin | 5W MR-16 LED | 9V-17V AC/DC | Ground Spike | Antique Bronze (AB) |
| CL-550B-AB-L-ED6 | Cast Brass | MR-16 Bi-Pin | 6W MR-16 LED | 9V-17V AC/DC | Ground Spike | Antique Bronze (AB) |
| CL-550B-AB-BT | Cast Brass | MR-16 Bi-Pin | 5W BT Smart RGB-WW | 9V-17V AC/DC | Ground Spike | Antique Bronze (AB) |
Packaging & Logistics Specifications
| Packaging Parameter | Specifications |
| Shipping Weight | 1.50 lbs |
| Included Hardware | Injection-Molded ABS Ground Spike (1/2" NPT Female Hub) |
| Recommended Wire Connectors | CX-LOC Quick-Locking Wire Connectors (Sold Separately) |
View Spec Sheet
