CL-511 Die-Cast Aluminum 12v LED Landscape Light
CL-511 Die-Cast Aluminum 12v LED Landscape Light CL-511 Die-Cast Aluminum 12v LED Landscape Light

Corona CL-511 Die-Cast Aluminum 12v LED Landscape Light


SKU(s)
SKU:
Category: LandScape Lighting
Shipping/Return Policy

Product Description

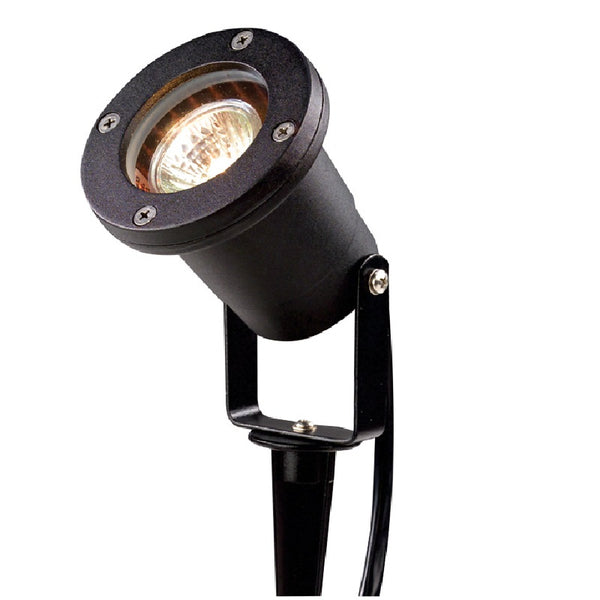

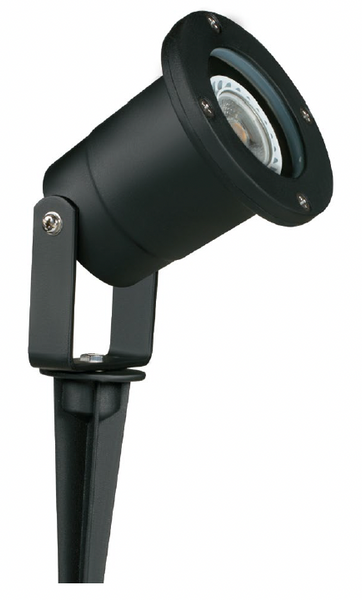

CL-511 Die-Cast Aluminum 12V LED Landscape Light

The CL-511 features a durable die-cast aluminum housing with a polyester UV powder-coated finish in black. Its clear, tempered glass lens with a silicone gasket ensures heat resistance and weather-tight protection. Equipped with a top-grade ceramic bi-pin socket and retention clip, it supports 12V MR-16 lamps up to 50W, available in 3.5W or 5W LED options or without a lamp. Prewired with a 3-foot direct burial cord, this fixture includes an adjustable cast aluminum knuckle and mounting spike for precise directional lighting, backed by reliable weather sealing and expert design.

  • HOUSING: Die-cast aluminum.
  • LENS: Clear, tempered, and heat resistant glass with silicone gasket.
  • SOCKET: Top grade fixed ceramic bi-pin socket, with retention clip.
  • LAMP: 12V, MR-16, 50W (halogen) max.
  • WIRING: Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available separately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
  • KNUCKLE: Adjustable die-cast aluminum knuckle with Phillips shaped screw and 1/2" NPT threaded male hub on bottom.
  • MOUNTING: 8” Black ABS spike with 1/2" NPT threaded female hub.
  • ELECTRICAL: Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
  • WARRANTY: One (1) year warranty on fixture housing against manufacturer’s defects.
CL-511 Fixture Diagram
Lamp Number Watts Beam Spread Spread Text Beam Lumen Color Temp Light Color Rated Hours Halogen Equiv
L-ED16-3W-FL 3.5 45° FL Flood 270 2700K Warm White 50,000 25 Watt Halogen
L-ED16-3W-WF 3.5 60° WF Wide Flood 270 2700K Warm White 50,000 25 Watt Halogen
L-ED16-3W-SP 3.5 15° SP Spot 270 2700K Warm White 50,000 25 Watt Halogen
L-ED16-5W-SP 5 15° SP Spot 350 2700K Warm White 50,000 40 Watt Halogen
L-ED16-5W-FL 5 45° FL Flood 350 2700K Warm White 50,000 40 Watt Halogen
L-ED16-5W-WF 5 60° WF Wide Flood 350 2700K Warm White 50,000 40 Watt Halogen
L-ED16-COB5W-SP 5 15° SP Spot 450 2700K Warm White 50,000 50 Watt Halogen
L-ED16-COB5W-FL 5 38° FL Flood 450 2700K Warm White 50,000 50 Watt Halogen
L-ED16-COB5W-WF 5 60° WF Wide Flood 450 2700K Warm White 50,000 50 Watt Halogen
L-ED16-COB5W-SP3K 5 15° SP Spot 470 3000K Cool White 50,000 50 Watt Halogen
L-ED16-COB5W-FL3K 5 38° FL Flood 470 3000K Cool White 50,000 50 Watt Halogen
L-ED116-COB5W-WF3K 5 60° WF Wide Flood 470 3000K Cool White 50,000 50 Watt Halogen
L-ED16-6W-SP 6 15° SP Spot 600 2700K Warm White 50,000 75 Watt Halogen
L-ED16-6W-FL 6 38° FL Flood 600 2700K Warm White 50,000 75 Watt Halogen
L-ED16-6W-WF 6 60° WF Wide Flood 600 2700K Warm White 50,000 75 Watt Halogen
L-ED16-6W-SP-3K 6 15° SP Spot 600 3000K Cool White 50,000 75 Watt Halogen
L-ED16-6W-FL-3K 6 38° FL Flood 600 3000K Cool White 50,000 75 Watt Halogen
L-ED16-6W-WF-3K 6 60° WF Wide Flood 600 3000K Cool White 50,000 75 Watt Halogen

CL-511 Compatible Accessories

Accessory Part Number Description
Universal Connector CX-839 Durable, weather-resistant in-line connector for direct burial applications. Simplifies field wiring and ensures a secure low-voltage connection.
Silicone Wire Nut CX-854 Pre-filled with silicone sealant to maintain a waterproof electrical connection. Ideal for outdoor landscape lighting installs.
Risers CL-Rxx Optional risers available in various heights (6", 12", 18") to elevate fixture for path lighting or planting bed applications.
Canopy Mount CL-CAN Flat surface mount canopy for junction box installations. Powder-coated to match fixture housing colors.
Tree Mount Bracket CL-TB Secure mounting bracket for affixing fixtures to trees or vertical surfaces. Stainless steel straps optional.
Adjustable Louver CL-LVR Internal glare shield/louver for directional light control and reduced beam glare. Compatible with MR16 optics.
Rock Guard CL-RG Protective rock guard with integrated glare control for ground-level installs in gravel, stone, or mulch.
Mounting Spike CL-SPIKE Standard 8" black ABS ground spike with ½" NPT hub. Compatible with adjustable knuckle mount fixtures.
Junction Box CL-JBOX Outdoor-rated, gasket-sealed electrical junction box for surface or recessed wiring configurations.
Colored Filters CL-FILTER Optional MR16 color filters for beam tinting. Available in blue, green, red, and amber. Sold separately.
