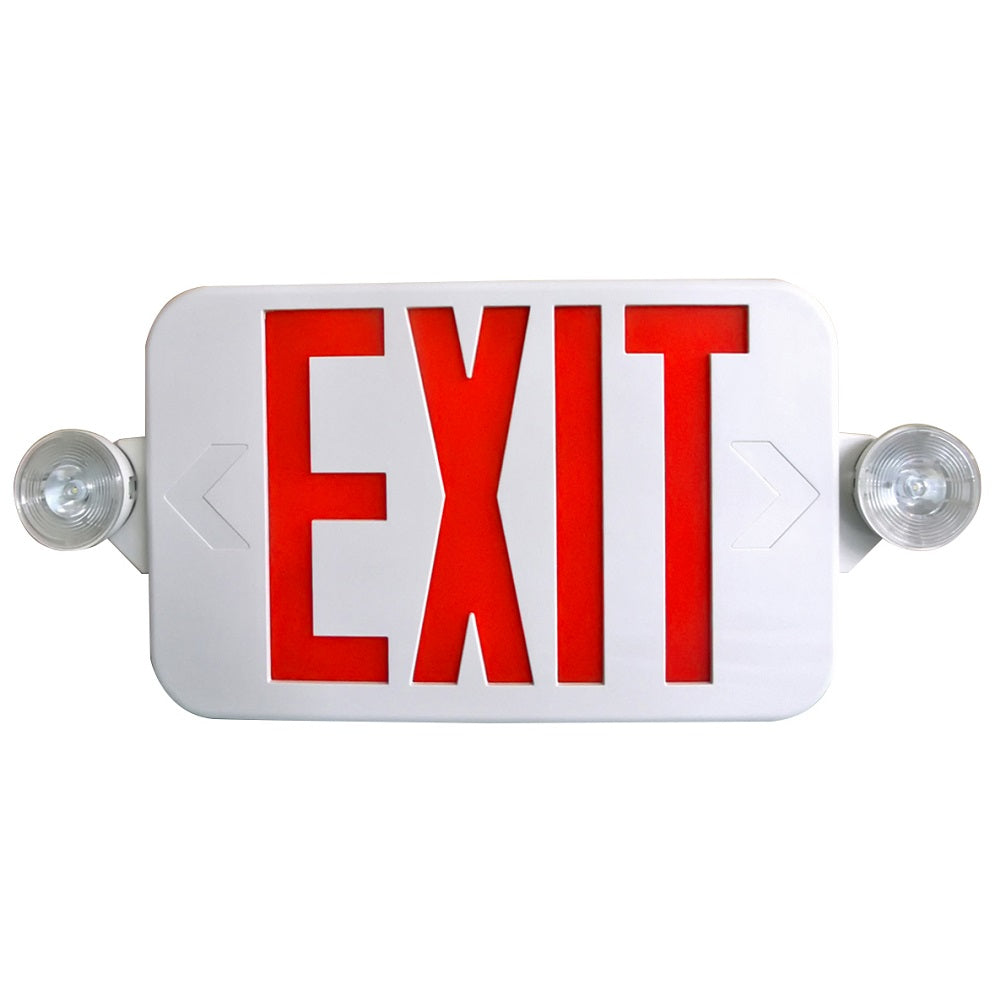

The Low Profile All LED Exit & Emergency Thermoplastic Combo CEU is a high-performance, space-saving solution designed to meet modern life safety and building code requirements. Engineered for efficiency, durability, and ease of installation, this unit combines a bright LED exit sign with fully adjustable emergency lighting in a sleek, low-profile thermoplastic housing.

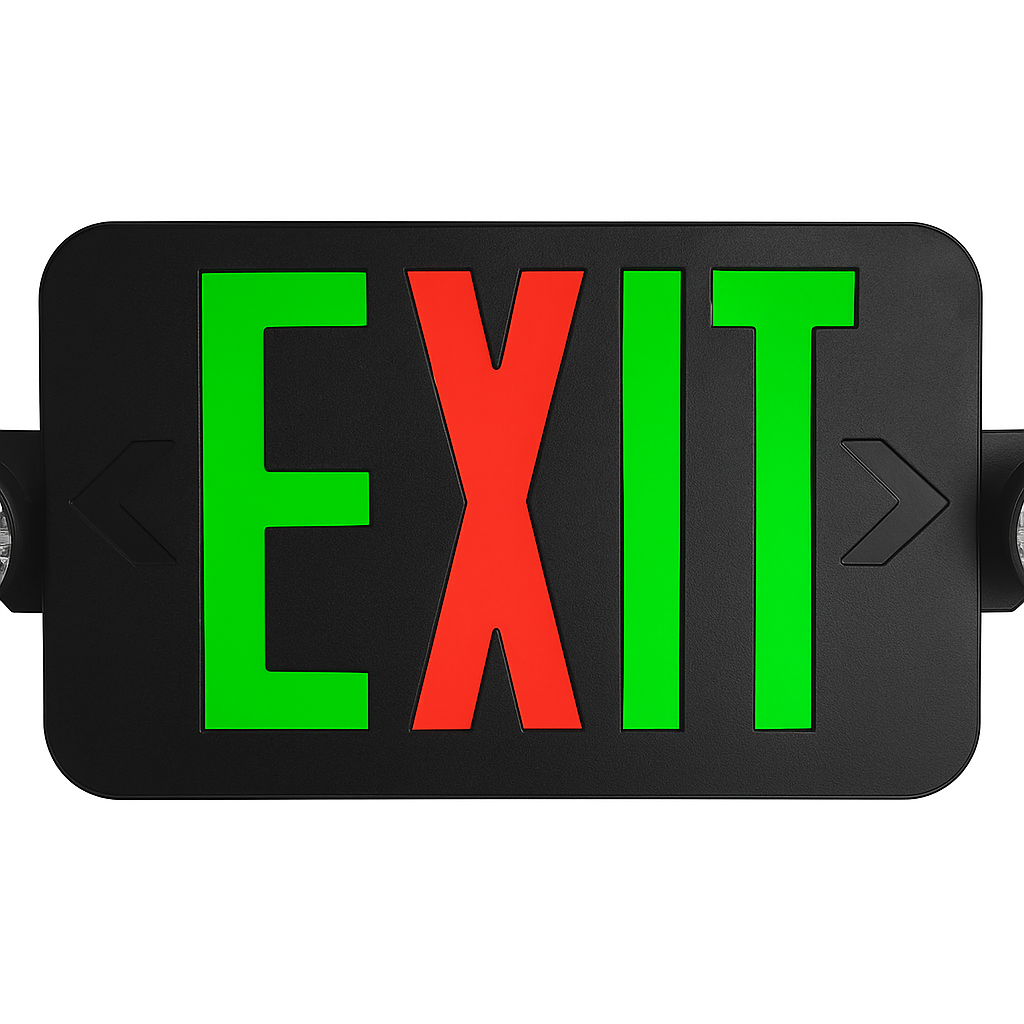

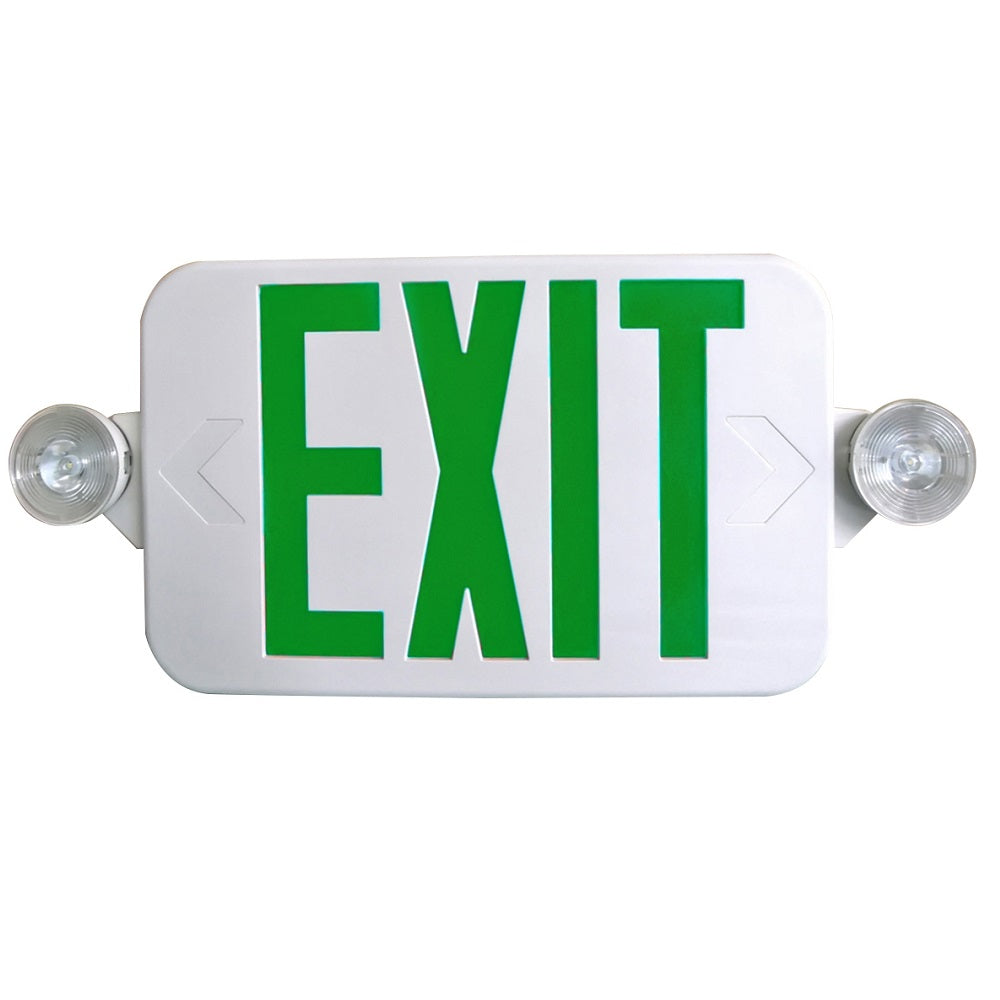

Featuring field-selectable red or green LED illumination, this combo unit offers flexibility for various applications while maintaining excellent visibility in emergency situations. The ultra-bright white LED lamp heads are fully adjustable, ensuring optimal light distribution along egress paths.

Built with energy efficiency in mind, the unit uses long-lasting LED technology that significantly reduces maintenance and operational costs. The integrated 3.6V maintenance-free NiCd battery provides a minimum of 90 minutes of emergency illumination, ensuring safety during power outages.

A bi-color LED indicator simplifies maintenance by clearly displaying system status—green for normal operation and red for battery check—while the automatic solid-state transfer switch ensures seamless transition to backup power when needed.

Designed for quick and versatile installation, the unit includes an EZ-snap mounting canopy for top or end mounting, along with a universal knockout pattern for wall mounting.

Ideal for commercial, industrial, and institutional environments, this LED exit and emergency combo delivers reliable performance, code compliance, and long-term durability.

Technical Specifications

General Features:

• Product Type: LED Exit & Emergency Combo (CEU)
• Housing: Flame-retardant thermoplastic, low-profile design
• Mounting: Wall, top, or end mount (EZ-snap canopy included)
• Face Illumination: Red/Green selectable LED
• Lamp Heads: Adjustable, ultra-bright white LEDs

Electrical:

• Input Voltage: Dual 120V/277V standard
• Optional Voltage: 120V/230V
• Lamp Head Wattage: 0.5W per head
• Light Source: Energy-efficient LEDs (exit sign + emergency heads)

Battery & Backup:

• Battery Type: 3.6V NiCd (Nickel-Cadmium)
• Backup Duration: Minimum 90 minutes
• Recharge Time: 24 hours
• Charger: Solid-state, automatic two-rate charger
• Transfer Switch: Internal solid-state automatic operation

Indicators & Safety:

• Status Indicator: Bi-color LED (Green = normal, Red = battery check)
• Compliance: Meets emergency lighting and exit sign safety standards

Installation Features:

• Universal knockout pattern for wall mounting
• EZ-snap canopy for fast installation
• Integrated lamp, reflector, and lens assembly
