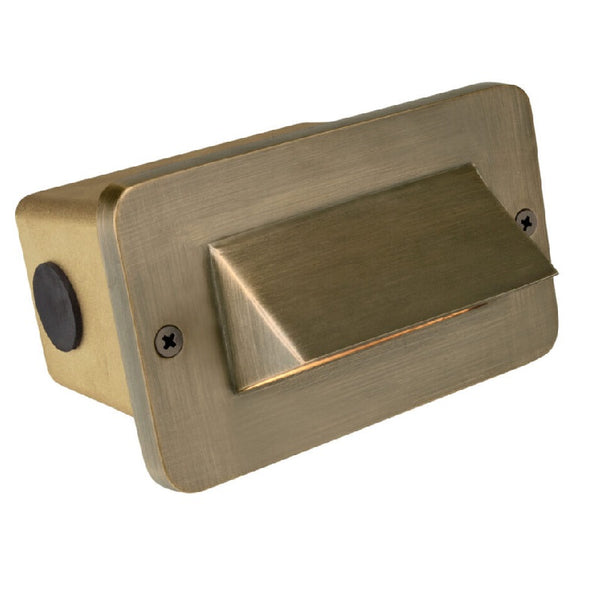

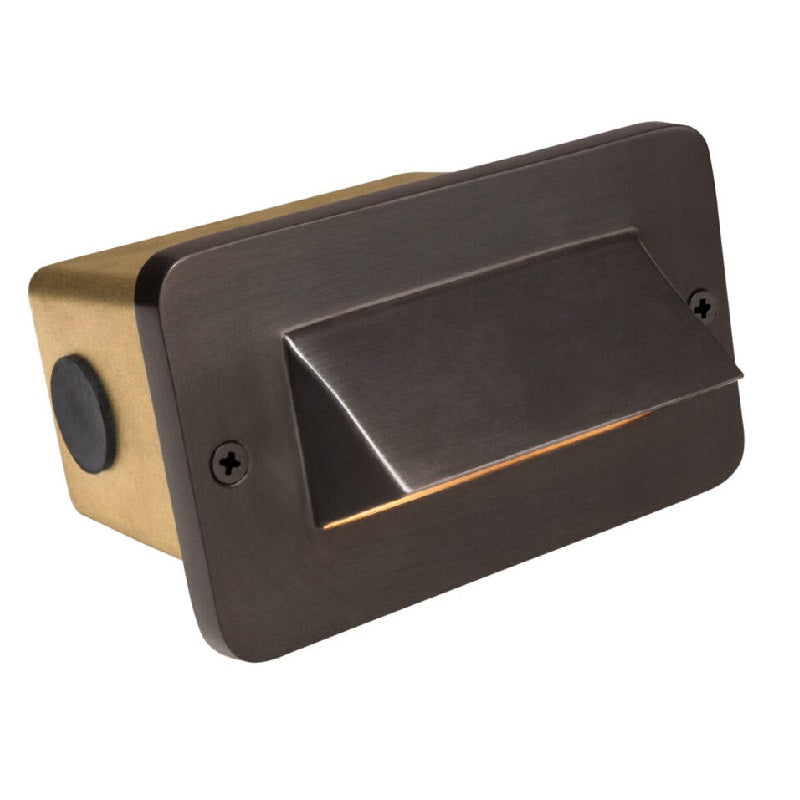

1 Louver Brass Step Light | Antique Bronze & Gun Metal | 12V SC Bayonet
| SKU(s) | CL-364B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/8" |
| Height | 3-1/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The 1 Louver Brass Step Light is a premium architectural-grade outdoor lighting fixture, designed for stairways, walkways, retaining walls, and masonry applications. Built with heavy-duty corrosion-resistant solid brass, it ensures long-term durability in harsh outdoor environments while maintaining a classic aesthetic. Available in Antique Bronze and Gun Metal finishes, this step light adds both safety and elegance to any residential or commercial landscape design.
Featuring a frosted, heat-resistant glass lens and a single brass louver, this fixture provides shielded, glare-free illumination, making it ideal for pathways, decks, and steps. The SC Bayonet socket with aluminum reflector supports 12V SCB lamps up to 27W halogen (lamp not included), and is also LED compatible, allowing for efficient and long-lasting lighting options.
For ease of installation, the fixture comes prewired with a 3ft 18-2 SPT1-W direct burial cord. The recessed mount back box with 3x 1/2" NPT inlets provides versatile mounting options, particularly well-suited for concrete, brick, and masonry surfaces.
Backed by a limited lifetime warranty on the solid brass housing, this 1 Louver Step Light combines robust construction, timeless style, and reliable performance.
Key Features:
Solid brass construction with Antique Bronze & Gun Metal finishes
1 louver design for glare-free, directional lighting
Frosted, heat-resistant glass lens for diffused illumination
SC Bayonet socket with aluminum reflector
Lamp type: 12V SCB, 27W halogen max (lamp not included)
LED compatible for energy-saving options
Prewired with 3ft 18-2 SPT1-W direct burial cord
Recessed mount back box with 3x 1/2" NPT inlets
Best used in concrete, brick, and masonry installations
Limited lifetime warranty on brass housing
$153.00 /each
| SKU(s) | CL-717B-AB |
| Color | Antique Bronze | Black | Gun Metal | Silver |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze & Black Brass & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 6" |
| Height | 18" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$54.00 /each
| SKU(s) | CL-MINI-BK |
| Color | Black |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 230LM |
| Color Temp | 3000K |
| Width | 1-1/4" |
| Height | 7-1/4" |
| LED Life | 30.000 Hrs |
| Wire | 10ft SPT-1W wire |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$158.45 /each
| SKU(s) | CL-221-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 210LM |
| Color Temp | 3000K |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 5-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$126.00 /each
| SKU(s) | CL-368B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8-1/4" |
| Height | 3-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
