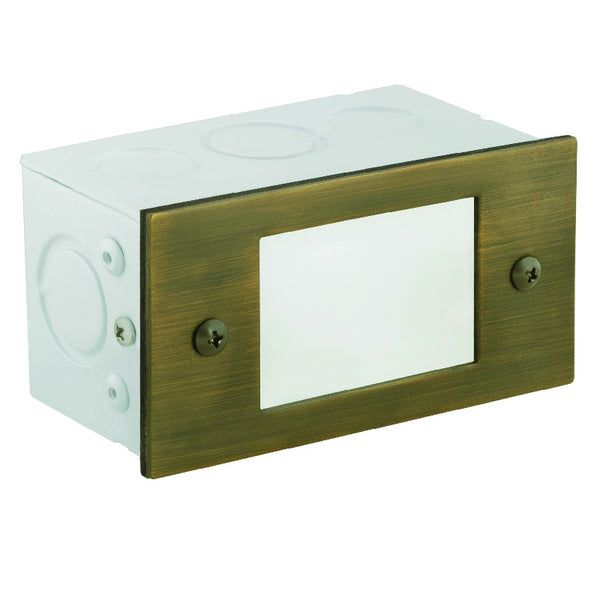

Brass Lensed Boxed Step Light | Multiple Finishes | 12V SCB
| SKU(s) | CL-360B-AB |
| Color | Antique Bronze | Silver | Old Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Old Copper & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Length | 3-3/8" |
| Height | 2-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Brass Lensed Boxed Step Light combines architectural design with rugged durability, making it an excellent choice for masonry, brick, or concrete step lighting. Built from solid brass with a white powder-coated steel recessed mount box, this fixture is available in Antique Bronze, Gun Metal, and Old Copper finishes, providing elegant options to complement any outdoor space.
The fixture is fitted with a high-impact white polycarbonate lens, sealed and secured to the brass faceplate for enhanced protection and glare control. Inside, it uses a top-grade fixed S.C. Bayonet socket, supporting a 12V SCB lamp (18W max, halogen or LED equivalent – lamp not included).
Each step light comes prewired with a 12-inch direct burial cord for fast installation. For secure electrical connections, optional CX-839 universal connectors or CX-854 silicone-filled wire nuts are recommended. Designed for recessed surface mounting, the unit installs easily into brick, concrete, or other masonry surfaces and includes mounting screws.
Engineered for efficiency, the step light operates within a 9–17V range with LED lamps and requires a remote 12V magnetic transformer (sold separately). This fixture is outdoor-rated only and backed by a limited lifetime warranty on the brass housing against manufacturer’s defects.
Key Features:
Architectural recessed step light with brass faceplate
Available in Antique Bronze, Gun Metal, and Old Copper finishes
High-impact white polycarbonate lens reduces glare and ensures durability
Top-grade S.C. Bayonet socket for 12V SCB lamp (18W max, not included)
Prewired with 12-inch direct burial cord for convenience
Mounts recessed into brick, concrete, or masonry surfaces
Outdoor use only – designed for long-term durability
Operates in a 9–17V range with LED lamps
Requires remote 12V magnetic transformer (sold separately)
Limited lifetime warranty on brass housing
$102.65 /each
| SKU(s) | CL-647C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-1/2" |
| Length | 3-1/2" |
| Height | 16-1/4" |
| Diameter | 3-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$180.00 /each

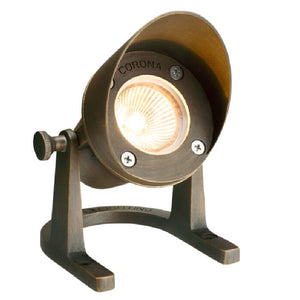

| SKU(s) | CL-308-AB |
| Color | Antique Bronze |
| Size | 30" | 50" | 100" |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 4-1/2" |
| Length | 4" |
| Height | 5-3/4" |
| Diameter | 4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$108.00 /each

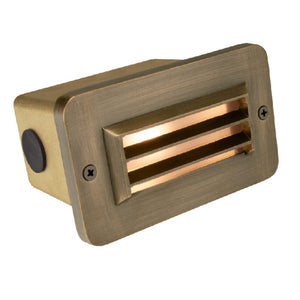

| SKU(s) | CL-365B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/8" |
| Height | 3-1/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$54.00 /each
| SKU(s) | CL-MINI-BK |
| Color | Black |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 230LM |
| Color Temp | 3000K |
| Width | 1-1/4" |
| Height | 7-1/4" |
| LED Life | 30.000 Hrs |
| Wire | 10ft SPT-1W wire |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
