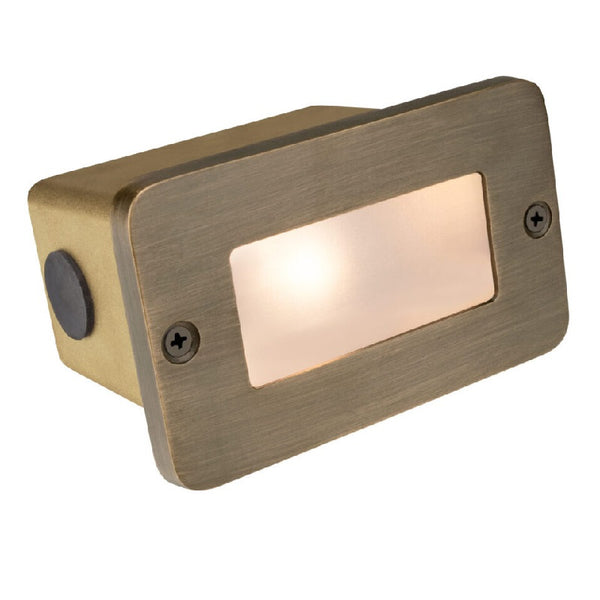

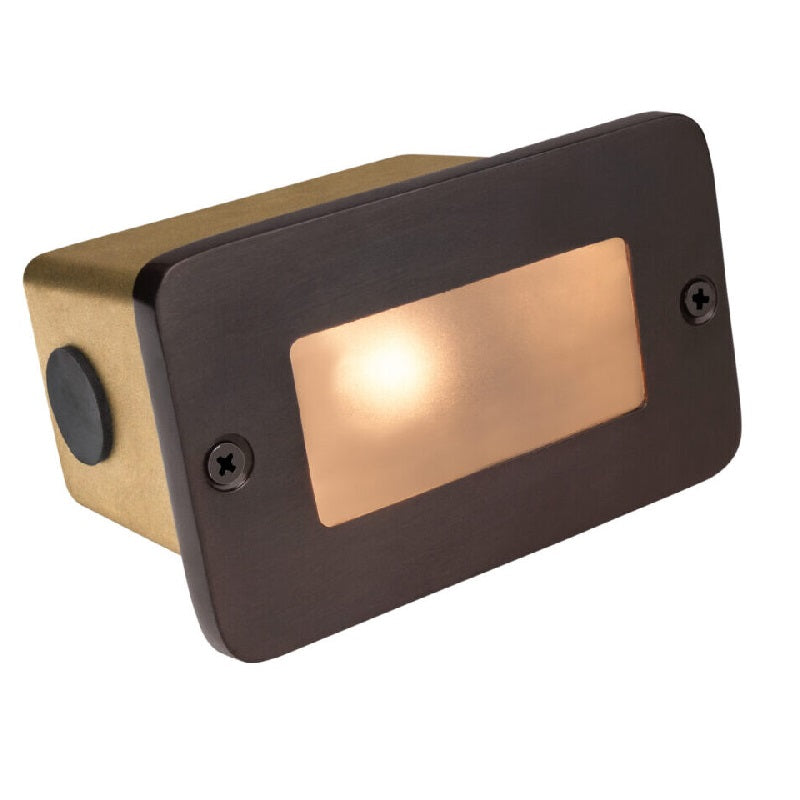

Brass Lensed Step Light | Antique Bronze & Gun Metal | 12V SC Bayonet
| SKU(s) | CL-363B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/8" |
| Height | 3-1/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Brass Lensed Step Light is a premium architectural-grade outdoor lighting solution, designed to deliver long-lasting performance, safety, and refined style for pathways, stairways, walls, and masonry installations. Built from heavy-duty corrosion-resistant solid brass, this fixture is available in both Antique Bronze and Gun Metal finishes, offering timeless elegance with exceptional durability.
The fixture features a frosted, heat-resistant glass lens that softens and diffuses the light output, providing comfortable, glare-free illumination ideal for enhancing visibility and ambiance. Equipped with an SC Bayonet socket mounted on an aluminum reflector, it supports 12V SCB lamps up to 27W halogen (lamp not included). The fixture is also LED compatible, allowing for energy-efficient upgrades.
For convenience, the unit comes prewired with a 3ft 18-2 SPT1-W direct burial cord. Installation is simple and secure with the recessed mount back box featuring 3x 1/2" NPT inlets, making it perfect for brick, concrete, and other masonry applications.
Backed by a limited lifetime warranty on the brass housing, this lensed step light provides a reliable and elegant lighting solution for residential and commercial landscapes.
Key Features:
Solid brass construction for durability and weather resistance
Available finishes: Antique Bronze and Gun Metal
Frosted, heat-resistant glass lens for soft, diffused illumination
SC Bayonet socket with aluminum reflector for optimal light performance
Lamp type: 12V SCB, 27W halogen max (lamp not included)
LED compatible for energy-saving options
Prewired with 3ft 18-2 SPT1-W direct burial cord
Recessed mount back box with 3x 1/2" NPT inlets
Ideal for concrete, brick, and masonry installations
Limited lifetime warranty on brass housing
$145.85 /each

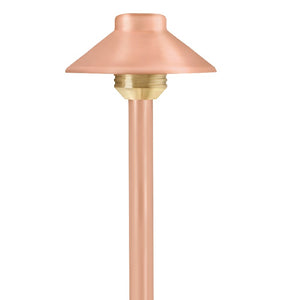

| SKU(s) | CL-648C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Raw Copper |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 19-1/2" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$43.25 /each
| SKU(s) | CL-361-BK |
| Color | Black | Rust | White | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze, Rust & White |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | CL-343B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-3/8" |
| Length | 3-3/8" |
| Height | 3-3/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$194.45 /each

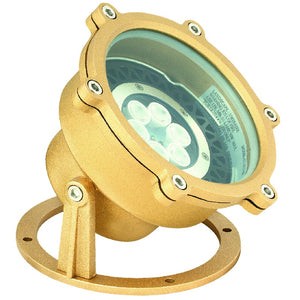

| SKU(s) | CL-313-BR |
| Color | Natural Brass |
| Size | 30" |
| Lamp | No-Lamp | 6W | 13W |
| Color | Natural Brass |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 610LM / 1150LM |
| Color Temp | 2700K |
| Width | 5-1/2" |
| Length | 5-1/4" |
| Height | 3-5/8" |
| Diameter | 5-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
