EasyLED Dome Stainless Steel Bollard | 1,180 Lumens Max | 120/277V | QSSI BOQ-SS-HA
- SKU: BORWQF1X15UHASS
- Category: LED Bollards, QSSI
The QSSI 1800K CCT LED Stainless Steel Round Dome Bollard is an eco-friendly architectural outdoor lighting solution engineered for dark sky preservation and environmentally sensitive coastal applications. Designed as an energy-efficient alternative to traditional Low Pressure Sodium (LPS) systems (replacing 35W SOX LPS lamps), this fixture emits a narrow-spectrum amber light with a dominant wavelength of 588.8–592.6nm, closely matching LPS wavelengths (589nm & 589.6nm) while drastically reducing power consumption and maintenance overhead.
Constructed from formed 316L stainless steel housing with a domed cap and flush mounting base, the bollard features an IP65-sealed LED compartment equipped with vandal-resistant screws and an internal ballast tray for easy servicing. Available with a Soft Shine low-glare white cone reflector (BORWQ), a standard LED cone reflector (BORLQ), or internal louvers (BOLQ), it operates on a 120-277V driver with standard 0-10V dimming and 2kV internal surge protection. With an L70 rated lifespan of 147,000 hours at 25°C, it is ideal for retail centers, educational campuses, public parks, coastal resorts, and municipal facilities.
Key Features:
-
Dark Sky & Wildlife Friendly (1800K CCT): Delivers narrow-spectrum amber illumination (1800K nominal, 1700K–2200K range) designed for dark sky compliance and LPS system replacements.
-
316L Stainless Steel Enclosure: Heavy-duty formed 316L stainless steel body delivers ultimate marine-grade corrosion resistance against salt air, harsh moisture, and chemicals.
-
Energy-Efficient LPS Alternative: Replaces 35W Low Pressure Sodium (SOX) systems with a low 16.5W system power draw.
-

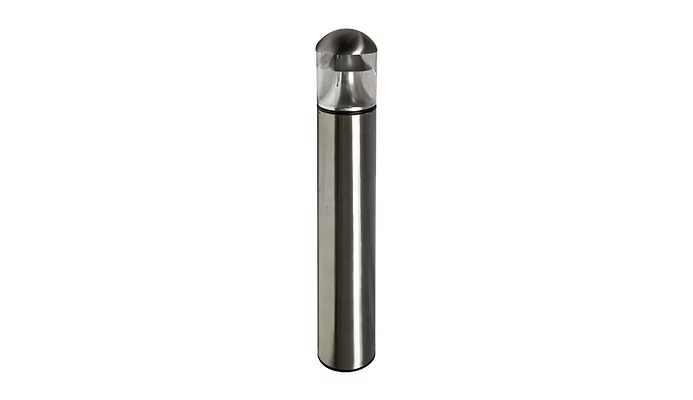

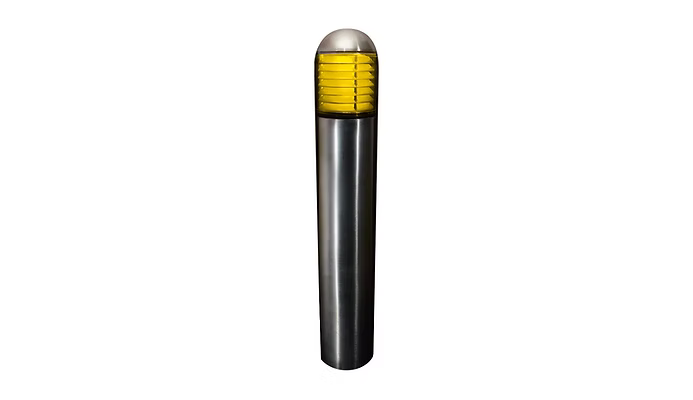

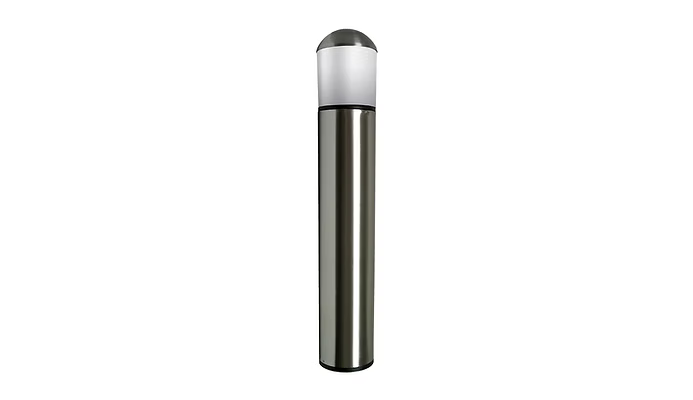

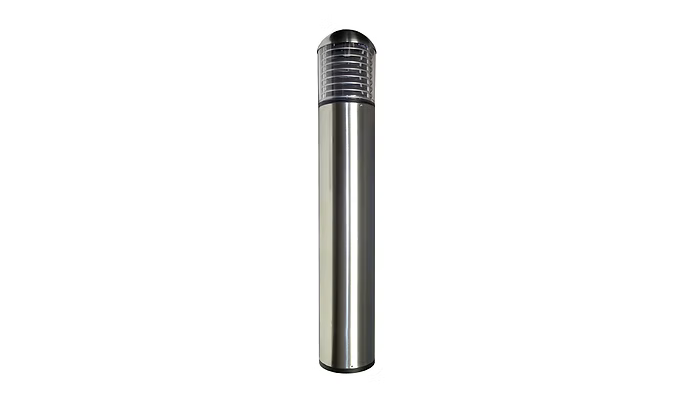

Multiple Optical Profiles: Offered with a Soft Shine White Cone Reflector, Standard LED Cone Reflector, or Internal Louvers for tailored light shielding.
-
Commercial Electrical Standards: 120-277V AC driver with standard 0-10V dimming (100% to 10%), PF > 0.90, THD < 20%, and 2kV internal surge protection.
Technical Specification Table
| Technical Specification | QSSI 1800K Stainless Steel Bollard Specifications |
| Series Model |
1800K CCT LED Stainless Steel Round Dome Bollard |
| Base Model Configurations |
BORWQ (Soft Shine White Cone) | BORLQ (LED Cone) | BOLQ (Internal Louvers) |
| Housing Material |
Formed 316L Stainless Steel with Domed Top & Flush Base |
| Lens / Cover Options |
Clear UV-Stabilized Polycarbonate or SoftLED LumaLens Opal Polycarbonate |
| Dimensions |
Outer Diameter: Ø7" (178mm) | Overall Height: 41.75" (1,060mm) |
| LED Board Wattage |
15W Array |
| System Input Power |
16.5W (17W Input Power) |
| LED Drive Current |
116 mA |
| LPS Equivalent |
35W SOX Low Pressure Sodium |
| Light Output (Lumens) |
Cone Reflectors: 1,178 lm (69 LPW) | Louvers: 595 lm (35 LPW) |
| Color Temperature / Wavelength |
1800K CCT Nominal (Dominant Wavelength: 588.8nm – 592.6nm) |
| Optical Distribution |
Type V Wide Beam Spread |
| Input Voltage & Frequency |
120-277V AC, 50/60Hz |
| Driver & Dimming Specs |
Electronic Driver, 0-10V Dimming Standard (100% to 10%), PF >0.90, THD <20% |
| Surge Protection |
Standard Internal 2kV Surge Protection |
| BUG Ratings |
Cone Reflectors: B1-U3-G1 | Louvers: B0-U2-G0 |
| Operating Temperature |
Range: -40°C to +40°C (-40°F to +104°F) |
| Lumen Maintenance (L70) |
147,000 Hours @ 25°C | 67,000 Hours @ 50°C |
| Certifications & Compliance |
ETL Listed for Wet Locations, ANSI/UL 1598, 8750, IP65 Sealed, TAA/BAA Compliant |
| Finish |
Stainless Steel (SS) |
| Warranty |
5-Year Limited Warranty |
Product Logic & Ordering Catalog Matrix
| Model Base PDF | Optics PDF | Array Wattage PDF | Driver PDF | CCT PDF | Lens PDF | Finish PDF | Factory Options PDF |
|
BORWQ (Soft Shine White Cone) BORLQ (LED Cone) BOLQ (Internal Louvers) |
F (Wide Beam Spread) |
1X15 (15W Array / 16.5W Sys) |
U (120-277V) |
HA (1800K CCT) |
(Blank) Clear Polycarbonate L (SoftLED LumaLens Opal)
(BORWQ White Cone Only)* |
SS (Stainless Steel) |
SF (Single Fuse) DF (Double Fuse) SP (Surge Protection) GF1 (15A 120V GFCI Outlet) GSB (180° Black Glare Shield) GSZ (180° Bronze Glare Shield) GSC (180° Custom Glare Shield) S5 (Microwave Sensor w/ Dimming) BU (90-Min Battery Backup) BUC (Cold Start Battery Backup) |
Field-Installed Accessories & Replacement Parts
| Part Number | Description & Function |
| BOLAN4 |
4" Anchor Bolt Kit: Includes mounting bracket and three (3) 4" zinc-plated anchor bolts. |
| BOLAN8 |
8" Anchor Bolt Kit: Includes mounting bracket and three (3) 8" zinc-plated anchor bolts. |
| BOLAN12 |
12" Anchor Bolt Kit: Includes mounting bracket and three (3) 12" zinc-plated anchor bolts. |
| BOLAN15 |
15" Anchor Bolt Kit: Includes mounting bracket and three (3) 15" zinc-plated anchor bolts. |
| BREBASE-(Z/B/C) |
Retrofit Base Kit: Adapts new bollards to existing anchor bolt patterns (11.5" Dia. x 1.5" H). |
| P17125 |
Internal Microwave Sensor: 120-277V microwave motion sensor with dimming and remote programming. |
| P17126 |
Remote Programming Tool: Handheld wireless programmer for configuring P17125 motion sensor settings. |
| BOLPC |
Replacement Clear Lens: Round UV-stabilized polycarbonate vandal-resistant clear lens. |
| BOLPCLL |
Replacement Opal Lens: SoftLED LumaLens opal UV-stabilized polycarbonate array lens. |
| BORBASE |
Replacement Base Plate: Die-cast aluminum base plate with black powdercoat finish over chromate coating. |
| BOADP1 |
Outlet Box Adapter Plate: Die-cast aluminum adapter plate with gaskets for mounting outlet boxes. |
Photometric Performance Data Summary
1800K CCT LED Array (15W Board / 16.5W System Power)
-
Cone Reflectors (BORWQ / BORLQ) – Clear Lens:
-
Delivered Lumens: 1,178 lm
-
Efficacy: 69 LPW
-
BUG Rating: B1-U3-G1
-
-
Internal Louvers (BOLQ) – Clear Lens:
-
Delivered Lumens: 595 lm
-
Efficacy: 35 LPW
-
BUG Rating: B0-U2-G0
-
View Spec Sheet
