EasyLED Flat Top Bollard Light | 2,470 Lumens Max | Wet Location | BOFQ

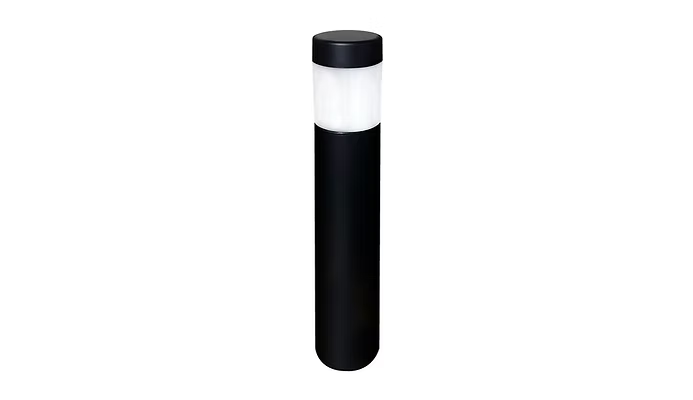

Deliver exceptional, low-glare outdoor illumination for walkways, pathways, and perimeters with the EasyLED Round Flat Top Bollard Light. Purpose-engineered to replace traditional HID lighting systems up to 70W Metal Halide (MH) or High-Pressure Sodium (HPS), this high-performance fixture dramatically cuts energy usage and ongoing maintenance costs. It provides a clean, modern aesthetic suitable for retail centers, corporate office parks, university grounds, public transit facilities, healthcare campuses, and municipal spaces.

Constructed from durable extruded aluminum, the flat top housing features a flush mounting base with vandal-resistant screws and an internal ballast tray designed for quick maintenance access. The luminaire can be customized with multiple optical configurations, including a specially designed cone reflector (or Soft Shine low-glare white cone reflector), internal louvers, or a clear prismatic borosilicate glass refractor. Lens selections include a UV-stabilized clear polycarbonate vandal-resistant lens or a SoftLED LumaLens UV-stabilized opal polycarbonate lens for smooth, uniform diffusion.

Built for long service life in harsh exterior conditions, the exterior is protected by a textured powdercoat finish (Architectural Bronze or Black) applied over a chromate conversion coating. Powered by a universal 120-277V or 347V (15W model only) electronic driver ($PF > 0.90$, $THD < 20\%$), each bollard includes standard 0-10V continuous dimming (100%–10%) and 2kV internal surge protection. The unit comes standard with an 8" zinc-plated anchor bolt mounting kit and supports factory-installed options such as internal microwave motion sensors with dimming, emergency battery backups, GFCI outlets, and 180° glare shields.

Key Features:

• 70W HID Equivalent Energy Savings: Available in 11.3W, 15.9W, and 23.8W system configurations delivering 531 to 2,461 lumens.

• Extruded Aluminum Flat Top Construction: Clean architectural profile with flush mounting base, vandal-resistant hardware, and internal ballast tray for simple field maintenance.

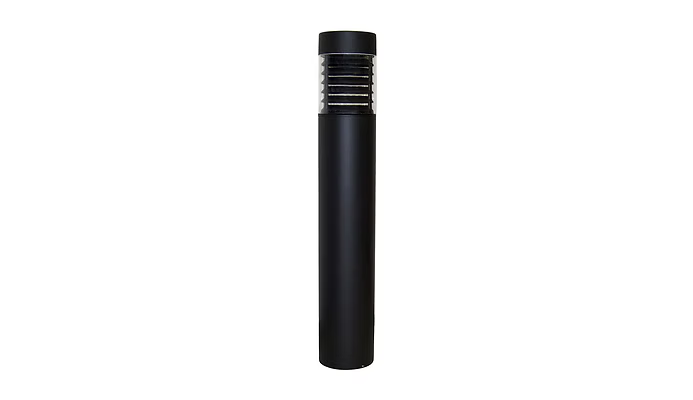

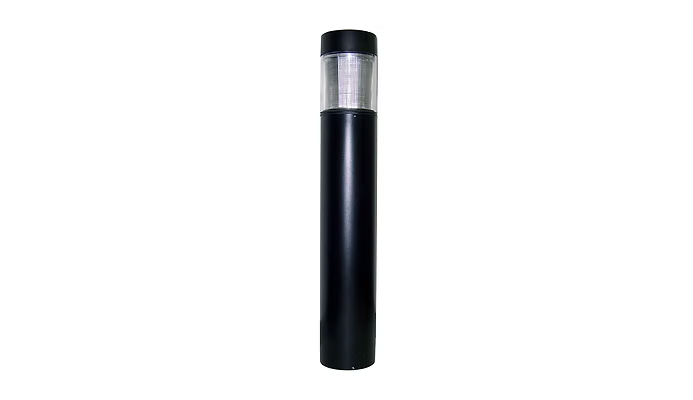

• Multiple Optical & Lens Styles: Choose between Type III or Type V distributions with LED Cone Reflectors, Soft Shine Low Glare Reflectors, Internal Louvers, or Glass Refractors.

• IP65 Wet Location Certified: ETL listed (ANSI/UL 1598, 8750) with an IP65 sealed LED compartment and UV-stabilized vandal-resistant polycarbonate or LumaLens opal shielding.

• Advanced Voltage & Control Compatibility: Operates on 120-277V or 347V circuits with 0-10V dimming and 2kV surge protection, plus optional microwave sensors, battery backups, and GFCI outlets.

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Ordering Accessories

• Standard Included Hardware:

  • Round Flat Top Extruded Aluminum Bollard Assembly.

  • Internal Ballast Tray with IP65 Sealed LED Array and Electronic Driver.

  • Standard Anchor Bolt Mounting Kit (includes 8" zinc-plated anchor bolts, bracket, nuts, and washers).

  • Internal 2kV Surge Protection Module.

• Field-Installed Accessories & Replacement Parts (Order Separately):

  • Anchor Kits: BOLAN4 (4"), BOLAN8 (8"), BOLAN12 (12"), BOLAN15 (15").

  • Retrofit Base: BREBASE (Adapts new bollards to most existing bolt patterns, 11-1/2" Dia. x 1-1/2" H).

  • Adapter & Base Plates: BORBASE (Die cast base plate), BOADP1 (Outlet box adapter plate).

  • Sensors & Remotes: P17125 (Internal microwave sensor, 120-277V), P17126 (Remote programming tool).

  • Replacement Lenses: BOLPC (Clear UV-stabilized lens), BOLPCLL (SoftLED LumaLens opal lens).
