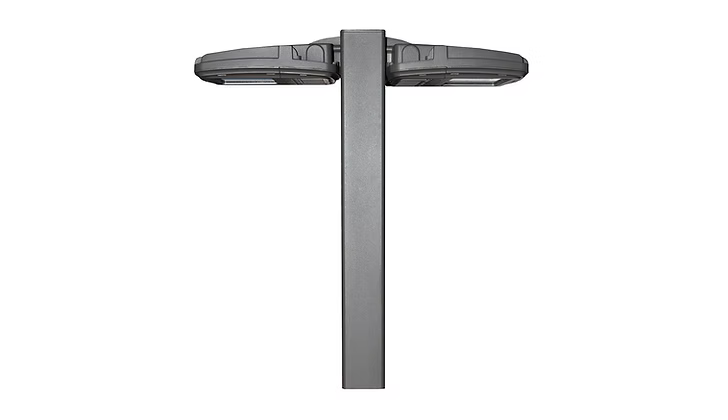

qssi-bkh2q-twin-head-led-bollard-front-view

EasyLED Mini Bentley Kitty Hawk Double Bollard | 4,900 Lumens Max | QSSI BKH2Q

$1,050.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

The QSSI EasyLED Mini Bentley Kitty Hawk Twin Head Bollard (BKH2Q) is a dual-arm architectural lighting solution engineered to maximize site coverage and dual-directional illumination. Designed to replace legacy HID systems up to 100W Metal Halide or High-Pressure Sodium per head, it features two opposing fixture heads mounted on a single extruded aluminum post shaft. Built with die-cast aluminum fixture heads, integral heat sinking, and nickel-plated stainless steel hardware, it is fully rated for demanding commercial and industrial environments.

Featuring IP66-sealed optical chambers, each head can be configured with precision Type III or Type V optics and specified with standard clear flat glass or SoftLED glare-reducing flat glass lenses. Operating on 120-277V AC or high-voltage 347-480V AC (74W total model), the BKH2Q provides 0-10V continuous dimming and internal surge protection (2kV for 44W total, 6kV for 74W total). With an L70 rated life of 320,000 hours at 25°C, it is perfect for dual-sided walkways, parking plaza islands, university quad areas, and transit platforms.

Key Features:

  • Twin-Head Dual Illumination: Dual opposing arms allow two separate light distributions from a single mounting post.

  • Heavy-Duty Build Quality: Extruded aluminum body with die-cast aluminum head assemblies, integral heat sinking, nickel-plated stainless steel hardware, and IP66 sealing.

  • 100W HID Equivalent per Head: Replaces up to 100W MH/HPS fixtures per head with total system power options of 47.6W or 86.0W.

  • High Surge Immunity: Built-in internal surge protection rated at 2kV for 44W configuration and 6kV for 74W configuration.

  • 320,000-Hour L70 Lifespan: Engineered for exceptional long-term reliability with minimal maintenance requirements.

Technical Specification Table

Technical Specification QSSI BKH2Q Twin Head Bollard Specifications
Series Model

EasyLED Mini Bentley Kitty Hawk Twin Head Bollard

Model Configuration

BKH2Q (Twin Head)

Housing Material

Extruded Aluminum Body, Die-Cast Aluminum Head Assemblies & Front Frames

Lens Options

Standard Tempered Clear Flat Glass Lens (C) | SoftLED Flat Glass Diffuser Lens (S)

Dimensions

Height (A): 48.625" (1236mm) (30" & 36" Optional)


Body Width (B): 4.75" (120mm)


Twin Head Total Width (D): 27.5" (700mm)

System Power Options

47.6W (2x22W / 44W Array) | 86.0W (2x37W / 74W Array)

Delivered Lumens (Total / Per Head)

44W Array: Up to 5,750 lm total (2,875 lm per head)


74W Array: Up to 9,668 lm total (4,834 lm per head)

Optical Distribution

Type III (NEMA 7H x 7V) | Type V (NEMA 7H x 7V)

CCT Options

3000K Warm White (74W Type V only), 4000K Cool White, 5000K Daylight

Color Rendering Index (CRI)

80+ CRI

Input Voltage Options

U: 120-277V AC, 50/60Hz (All Models)


H: 347-480V AC, 50/60Hz (74W Model Only)

Driver & Dimming Specs

Electronic Driver, 0-10V Dimming Standard (100% to 10%), PF > 0.90, THD < 20%

Surge Protection

2kV Internal Surge Protection (44W) | 6kV Internal Surge Protection (74W)

BUG Ratings (Per Head)

Type III: B1-U0-G1 | Type V: B1-U0-G0 / B2-U0-G0

Environmental Operating Temp

Operating Range: -40°C to +50°C (-40°F to +122°F)

Lumen Maintenance (L70)

320,000 Hours @ 25°C | 141,000 Hours @ 50°C

Certifications & Compliance

ETL Listed for Wet Locations, ANSI/UL 1598, 8750, IP66 Sealed, TAA/BAA Compliant

Finish Options

Textured Architectural Bronze (Z) or Custom Colors (C)

Warranty

5-Year Limited Warranty

Product Logic & Ordering Catalog Matrix

Model Base PDF Optics PDF Wattage Array PDF Driver PDF CCT PDF Lens PDF Finish PDF Height PDF Factory Options PDF

BKH2Q

C (Type III)


F (Type V)

2X22 (44W Array / 47.6W Sys)


2X37 (74W Array / 86.0W Sys)

U (120-277V)


H (347-480V)


(74W Model Only)*

3K (3000K)


4K (4000K)


5K (5000K)


(74W Type V Only)*

C (Clear Flat Glass)


S (SoftLED Glass)


(Type V Optic Only)*

Z (Bronze)


C (Custom)

(Blank) 48" Std


36 (36" Custom)


30 (30" Custom)

SF (Single Fuse)


DF (Double Fuse)


SP (Surge Protection)


GF1 (15A 120V GFCI)


S5 (Microwave Sensor)


(120-277V Only)*

Field-Installed Accessories & Replacement Parts

Part Number Description & Function
BREBASE-(Z/C)

Bollard Retrofit Base Kit: Die-cast aluminum base plate with bronze powdercoat finish (Specify Bronze or Custom). Adapts new BKH2Q bollards to most existing concrete anchor bolt patterns (11.5" Dia. x 1.5" H). Hardware included.

P17125

Internal Microwave Motion Sensor: 120-277V internal microwave motion sensor with dimming and remote programming capability.

P17126

Remote Programming Tool: Handheld wireless programmer for P17125 motion sensor settings.

KH15GLSS

Replacement SoftLED Glass Lens: SoftLED flat glass diffuser lens for glare control.

Anchor Bolts

Mounting Kit: Includes 8" zinc-plated anchor bolts (standard included hardware).

Photometric Performance Data Summary (Per Head)

2x22W LED Array (43.4W Array / 47.6W System Power Total)

  • Type III Optic (C):

    • 5000K: 2,875 Delivered Lumens per head (116 LPW) | BUG: B1-U0-G1

    • 4000K: 2,681 Delivered Lumens per head (108 LPW) | BUG: B0-U1-G1

  • Type V Optic (F):

    • 5000K: 2,742 Delivered Lumens per head (111 LPW) | BUG: B1-U0-G0

    • 4000K: 2,557 Delivered Lumens per head (103 LPW) | BUG: B1-U0-G0

2x37W LED Array (74.4W Array / 86.0W System Power Total)

  • Type III Optic (C):

    • 5000K: 4,834 Delivered Lumens per head (118 LPW) | BUG: B1-U0-G1

    • 4000K: 4,508 Delivered Lumens per head (110 LPW) | BUG: B1-U0-G1

    • 3000K: 4,351 Delivered Lumens per head (102 LPW) | BUG: B1-U0-G1

  • Type V Optic (F):

    • 5000K: 4,611 Delivered Lumens per head (113 LPW) | BUG: B2-U0-G0

    • 4000K: 4,300 Delivered Lumens per head (105 LPW) | BUG: B0-U2-G0

    • 3000K: 4,150 Delivered Lumens per head (97 LPW) | BUG: B2-U0-G0
