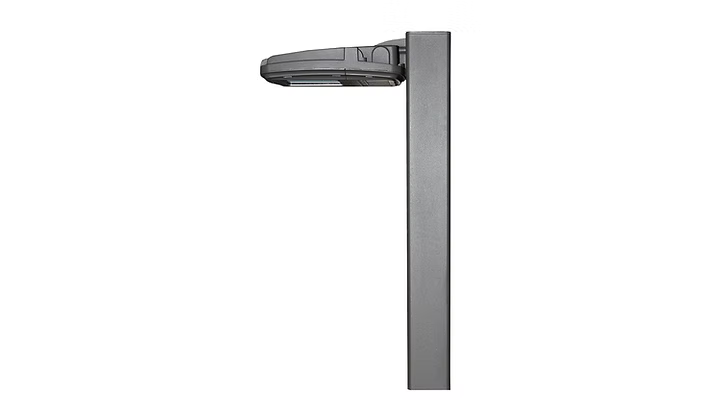

qssi-bkh1q-single-head-led-bollard-side-profile

EasyLED Mini Bentley Kitty Hawk Single Bollard | 4,900 Lumens Max | QSSI BKH1Q

$750.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

The QSSI EasyLED Mini Bentley Kitty Hawk Single Head Bollard (BKH1Q) delivers high-performance architectural pathway and site illumination, designed to replace legacy HID systems up to 100W Metal Halide or High-Pressure Sodium. Constructed with an extruded aluminum shaft, a die-cast aluminum fixture head, an integral heat-sinking structure, and nickel-plated stainless steel hardware, this single-head fixture is engineered for severe outdoor environments. It features an IP66-sealed LED compartment with a flush mounting base and vandal-resistant screws.

Available with Type III or Type V precision optical distribution patterns, the fixture can be specified with a standard clear tempered flat glass lens or a SoftLED flat glass diffuser to manage visual comfort and glare control. Operating across standard 120-277V AC circuits or high-voltage 347-480V AC options (37W model), the BKH1Q incorporates standard 0-10V continuous dimming and internal surge protection (2kV for 22W model, 6kV for 37W model). Backed by an exceptional L70 rated lifespan of up to 320,000 hours at 25°C, it is ideal for commercial plazas, educational campuses, walkways, and corporate facilities.

Key Features:

  • Single-Head Architectural Design: Sleek single-arm fixture head configuration for directional pathway and perimeter lighting.

  • Heavy-Duty Construction: Extruded aluminum shaft with die-cast aluminum head assembly, integral heat sink, nickel-plated stainless steel hardware, and IP66-sealed optical chamber.

  • 100W HID Replacement: Replaces up to 100W MH or HPS fixtures with system wattages of 23.8W or 43W.

  • High Surge Capability: Built-in internal surge protection rated at 2kV for 22W configuration and 6kV for 37W configuration.

  • Extreme Longevity: Projected L70 rated lifespan of 320,000 hours at 25°C ambient temperature.

Technical Specification Table

Technical Specification QSSI BKH1Q Single Head Bollard Specifications
Series Model

EasyLED Mini Bentley Kitty Hawk Single Head Bollard

Model Configuration

BKH1Q (Single Head)

Housing Material

Extruded Aluminum Body, Die-Cast Aluminum Head Assembly & Front Frame

Lens Options

Standard Tempered Clear Flat Glass Lens (C) | SoftLED Flat Glass Diffuser Lens (S)

Dimensions

Height (A): 48.625" (1236mm) (30" & 36" Optional)


Body Width (B): 4.75" (120mm)


Single Head Width (C): 15.625" (398mm)

System Power Options

23.8W (22W Array) | 43.0W (37W Array)

Delivered Lumens

22W Array: 2,557 lm to 2,875 lm


37W Array: 4,150 lm to 4,834 lm

Optical Distribution

Type III (NEMA 7H x 7V) | Type V (NEMA 7H x 7V)

CCT Options

3000K Warm White (37W Type V only), 4000K Cool White, 5000K Daylight

Color Rendering Index (CRI)

80+ CRI

Input Voltage Options

U: 120-277V AC, 50/60Hz (All Models)


H: 347-480V AC, 50/60Hz (37W Model Only)

Driver & Dimming Specs

Electronic Driver, 0-10V Dimming Standard (100% to 10%), PF > 0.90, THD < 20%

Surge Protection

2kV Internal Surge Protection (22W) | 6kV Internal Surge Protection (37W)

BUG Ratings

Type III: B1-U0-G1 | Type V: B1-U0-G0 / B2-U0-G0

Environmental Operating Temp

Operating Range: -40°C to +50°C (-40°F to +122°F)

Lumen Maintenance (L70)

320,000 Hours @ 25°C | 141,000 Hours @ 50°C

Certifications & Compliance

ETL Listed for Wet Locations, ANSI/UL 1598, 8750, IP66 Sealed, TAA/BAA Compliant

Finish Options

Textured Architectural Bronze (Z) or Custom Colors (C)

Warranty

5-Year Limited Warranty

Product Logic & Ordering Catalog Matrix

Model Base PDF Optics PDF Wattage Array PDF Driver PDF CCT PDF Lens PDF Finish PDF Height PDF Factory Options PDF

BKH1Q

C (Type III)


F (Type V)

1X22 (22W Array / 23.8W Sys)


1X37 (37W Array / 43.0W Sys)

U (120-277V)


H (347-480V)


(37W Model Only)*

3K (3000K)


4K (4000K)


5K (5000K)


(37W Type V Only)*

C (Clear Flat Glass)


S (SoftLED Glass)


(Type V Optic Only)*

Z (Bronze)


C (Custom)

(Blank) 48" Std


36 (36" Custom)


30 (30" Custom)

SF (Single Fuse)


DF (Double Fuse)


SP (Surge Protection)


GF1 (15A 120V GFCI)


S5 (Microwave Sensor)


(120-277V Only)*

Field-Installed Accessories & Replacement Parts

Part Number Description & Function
BREBASE-(Z/C)

Bollard Retrofit Base Kit: Die-cast aluminum base plate with bronze powdercoat finish (Specify Bronze or Custom). Adapts new BKH1Q bollards to most existing concrete anchor bolt patterns (11.5" Dia. x 1.5" H). Hardware included.

P17125

Internal Microwave Motion Sensor: 120-277V internal microwave motion sensor with dimming and remote programming capability.

P17126

Remote Programming Tool: Handheld wireless programmer for P17125 motion sensor settings.

KH15GLSS

Replacement SoftLED Glass Lens: SoftLED flat glass diffuser lens for glare control.

Anchor Bolts

Mounting Kit: Includes 8" zinc-plated anchor bolts (standard included hardware).

Photometric Performance Data Summary

22W LED Array (21.7W Array / 23.8W System Power)

  • Type III Optic (C):

    • 5000K: 2,875 Delivered Lumens (116 LPW) | BUG: B1-U0-G1

    • 4000K: 2,681 Delivered Lumens (108 LPW) | BUG: B0-U1-G1

  • Type V Optic (F):

    • 5000K: 2,742 Delivered Lumens (111 LPW) | BUG: B1-U0-G0

    • 4000K: 2,557 Delivered Lumens (103 LPW) | BUG: B1-U0-G0

37W LED Array (37.2W Array / 43.0W System Power)

  • Type III Optic (C):

    • 5000K: 4,834 Delivered Lumens (118 LPW) | BUG: B1-U0-G1

    • 4000K: 4,508 Delivered Lumens (110 LPW) | BUG: B1-U0-G1

    • 3000K: 4,351 Delivered Lumens (102 LPW) | BUG: B1-U0-G1

  • Type V Optic (F):

    • 5000K: 4,611 Delivered Lumens (113 LPW) | BUG: B2-U0-G0

    • 4000K: 4,300 Delivered Lumens (105 LPW) | BUG: B0-U2-G0

    • 3000K: 4,150 Delivered Lumens (97 LPW) | BUG: B2-U0-G0
