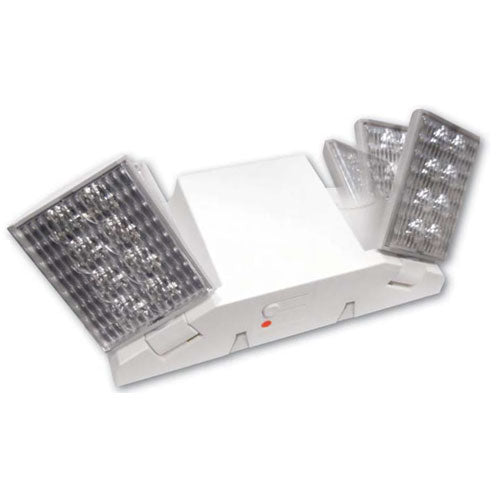

Emergency Light LED | Adjustable Optics | Thermoplastic
SKU(s) | LEDR-2 |
Width | 2 1/4" |
Length | 9 1/2" |
Height | 4 5/8" |
![]() |
Illumination
- Long life, efficient, ultra bright white LED lamp heads.
- 1W (8 LEDs x 0.125W) per head.
- High performance, chrome-plated metallized reflector and plastic lens for optimal light distribution.
- Two adjustable LED lamp heads provide optimal center-tocenter spacing.
Electrical
- Dual 120/277 voltage standard. Optional multi-tap 208/220/240 voltage available.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 3.6V long life, maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Mounting
- Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
- Top and back knockout for conduit applications.
- Suitable for wall or ceiling mount.
Housing
- Injection-molded, engineering-grade, 5VA flame retardant, high-impact, thermoplastic in white or black finish.
Options
- SPV: UL Listed for special voltage option.
Warranty/Listing
- Five year warranty on all electronics and housing. Battery pro rated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (20°C – 40°C).
