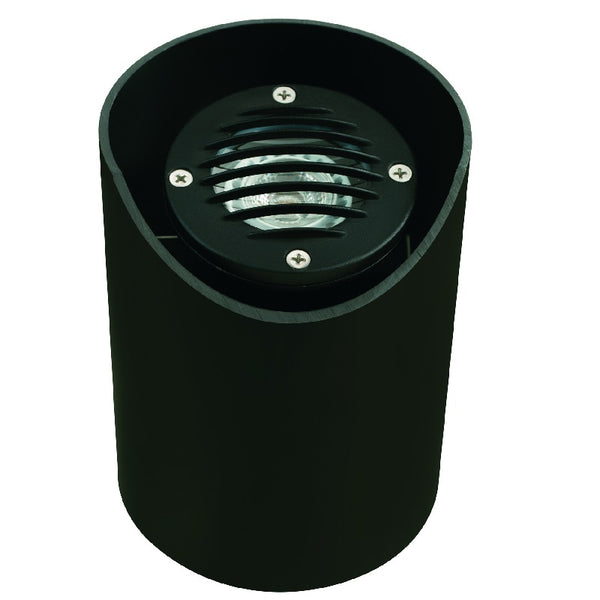

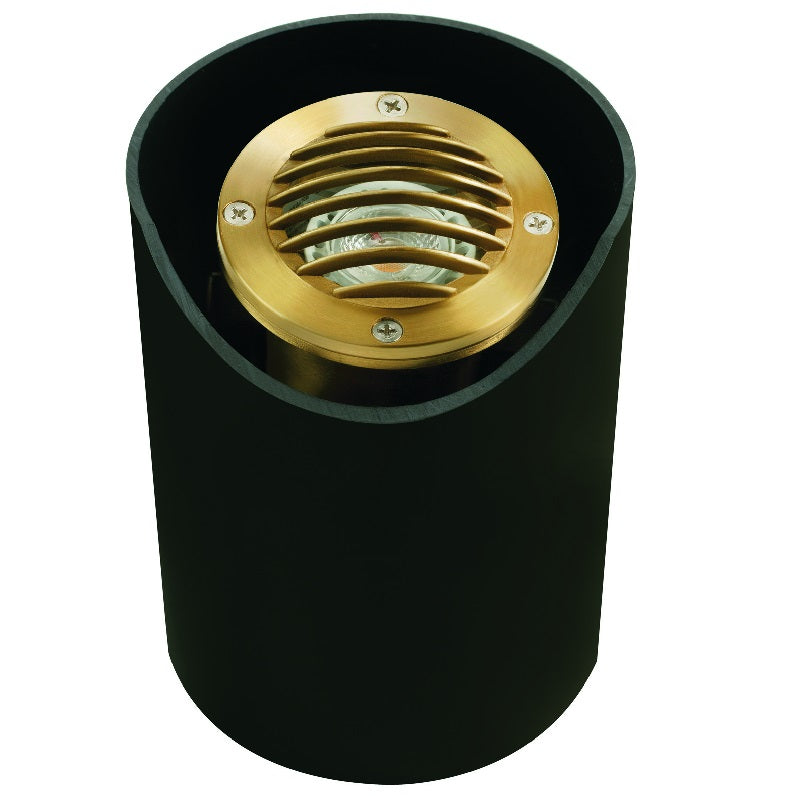

Adjustable Louvered Well Light | 12V MR-16 | Black & Brass Finishes
| SKU(s) | CL-333-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/2" |
| Length | 5-1/2" |
| Height | 8" |
| Diameter | 5-1/2" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Adjustable Louvered Well Light is a professional-grade in-ground landscape lighting fixture designed to provide precise illumination with glare control. Constructed from durable aluminum, composite, or natural brass, it is available in black and natural brass finishes to complement a variety of outdoor designs.
The louvered faceplate reduces glare while creating a refined lighting effect, making it ideal for pathways, trees, walls, and architectural accents. The fixture is mounted inside a reversible PVC sleeve with flat or angled cut, providing stable in-ground support. Its adjustable housing allows for precise aiming, ensuring the light highlights exactly where it is needed.
A clear, tempered, heat-resistant glass lens sealed with a silicone gasket ensures long-lasting weather protection. The fixture includes a top-grade ceramic bi-pin socket with retention clip to hold the lamp securely in place.
The Adjustable Louvered Well Light supports 12V MR-16 lamps up to 50W (halogen) and is fully compatible with LED MR-16 lamps operating within a 9–17V range. Prewired with a 3-foot 18-2 SPT2-W direct burial cord, it is installation-ready. Optional connectors like the CX-839 universal connector or CX-854 silicone-filled wire nut are available separately.
Designed for direct burial or concrete encasement with the included PVC sleeve, this fixture requires a remote 12V transformer (sold separately).
Backed by a one-year warranty on the fixture housing, the Adjustable Louvered Well Light is a reliable, value-grade solution for professional outdoor lighting projects.
$36.00 /each
| SKU(s) | CL-353-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 4" |
| Diameter | 4" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$45.95 /each
| SKU(s) | CL-360-BK |
| Color | Black | Bronze | Rust | White |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black & Bronze & Rust & White |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-1/8" |
| LED Life | 25.000 Hrs |
| Wire | 25ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$225.00 /each
| SKU(s) | CL-723-T-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$73.85 /each
| SKU(s) | CL-641-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 12" / 18" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
