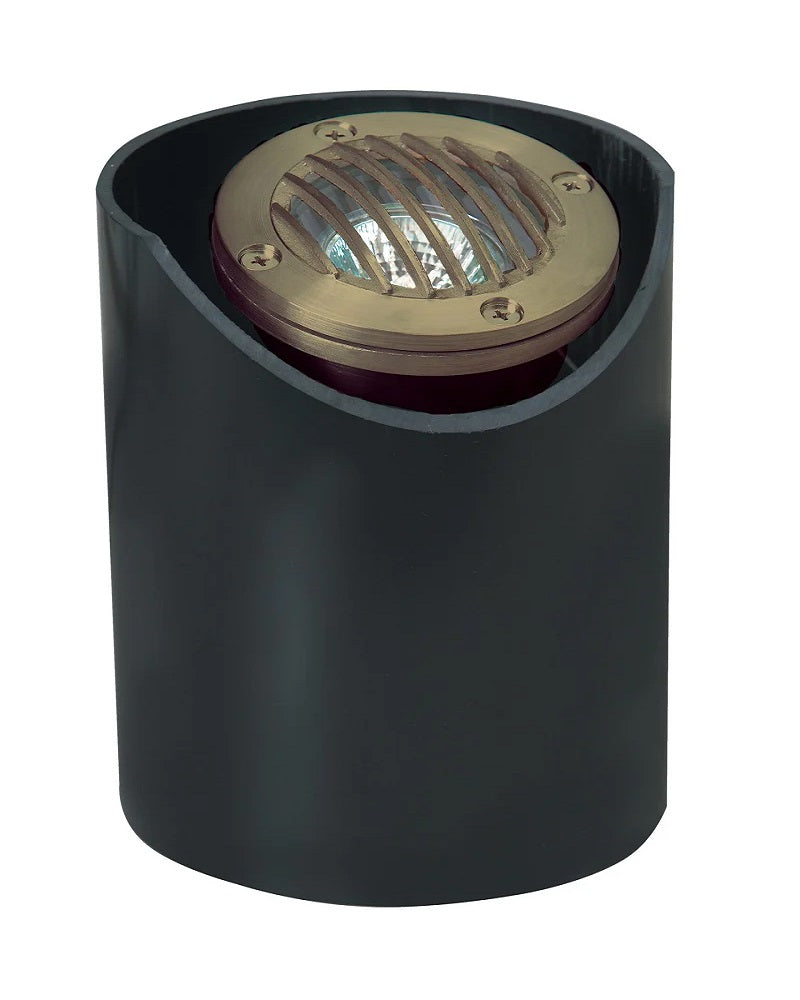

Adjustable Louvered Well Light | 12V In-Ground MR16
| SKU(s) | CL-233-AB |
| Color | Antique Bronze | Stainless Steel |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Stainless Steel |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K & 3000K |
| Width | 5-1/2" |
| Length | 3-7/8" |
| Height | 8" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

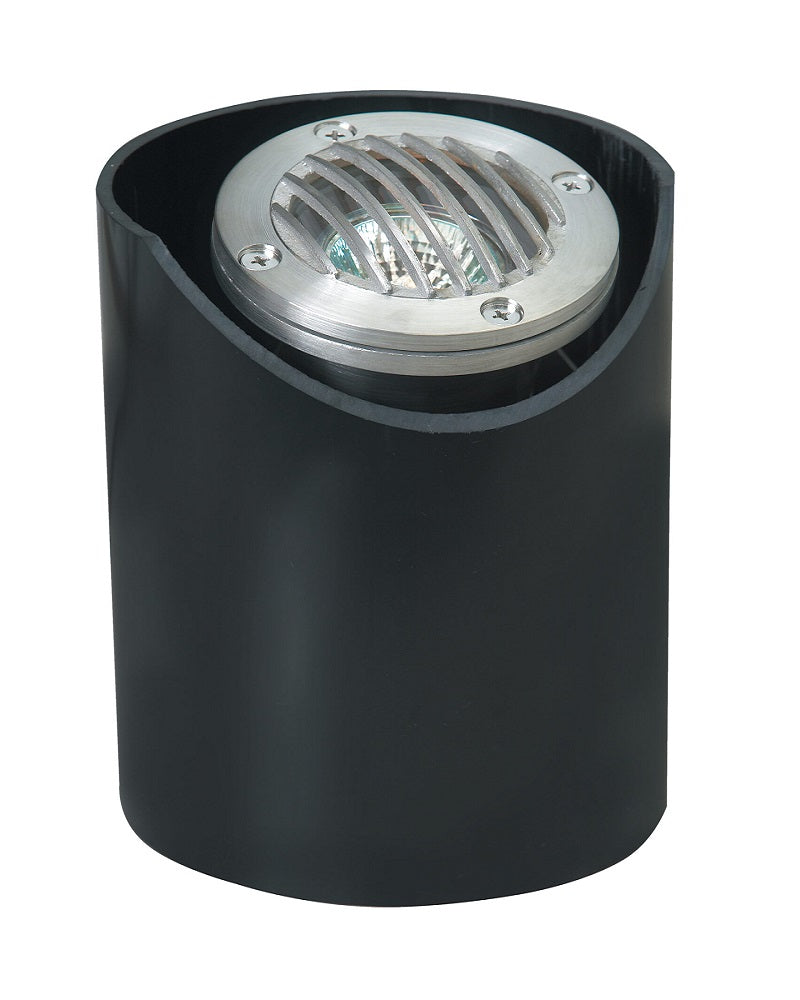

The Adjustable Louvered Well Light offers a perfect blend of rugged performance, refined aesthetics, and directional lighting control for your landscape design. Made from solid brass and corrosion-resistant 316 marine-grade stainless steel, this architectural-grade fixture is ideal for upscale residential or commercial outdoor applications.
Featuring an internal adjustable mechanism and louvered cover, the fixture allows you to customize the beam angle while minimizing glare and light spill. It’s housed inside a reversible PVC sleeve with both flat and angled ends, enabling flexible installation and optimal aiming.
Compatible with 12V MR-16 lamps up to 50W, the fixture includes a heat-resistant convex lens and an extra flat lens for optional drive-over installation. The ceramic bi-pin socket ensures secure lamp connection, while the 3-foot prewired direct burial cord allows for hassle-free setup. A wide voltage range (9–17V) supports LED integration with standard 12V transformers.
Engineered for long-term reliability, this fixture is backed by a limited lifetime warranty on the housing.
$106.25 /each
| SKU(s) | CL-367C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Raw Copper |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 9" |
| Height | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$75.65 /each
| SKU(s) | CL-371B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Height | 2-5/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | CL-342B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-3/8" |
| Length | 3-3/8" |
| Height | 3-3/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$196.25 /each

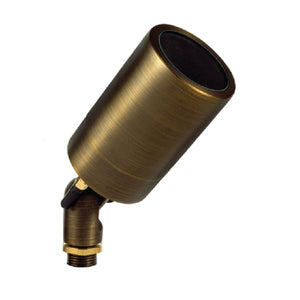

| SKU(s) | CL-404-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 4" |
| Length | 2-1/2" |
| Height | 2-3/8" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
