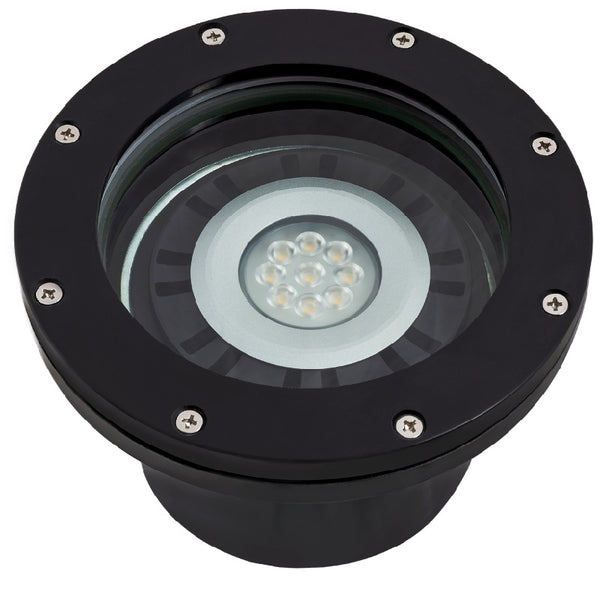

Composite PAR36 Lensed Well Light | In-Ground Outdoor Fixture
| SKU(s) | CL-314-NM |
| Color | Black |
| Lamp | No-Lamp | 6W | 13W |
| Color | Black |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 3-1/2" + 7/8" |
| Diameter | 6-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Composite PAR36 Lensed Well Light is a durable in-ground lighting solution designed for outdoor applications where long-lasting performance and UV stability are essential. Constructed from injection-molded fiberglass, this fixture resists fading, corrosion, and environmental wear, making it ideal for residential and commercial landscapes.
The fixture accommodates a 12V PAR36 lamp up to 50W (halogen or LED), with LED options available in 6W, 10W, or 13W for energy-efficient performance. Its clear protective lens ensures consistent illumination while shielding the lamp from dirt, moisture, and debris.
Equipped with a top-grade screw-in terminal socket, the design allows secure lamp installation and reliable electrical connections. The unit is factory prewired with a 3-foot 18-2 SJT-W direct burial cord, with optional silicone-filled wire nuts (CX-854) or quick-locking connectors (CX-LOC) available for simplified installation.
Designed for in-ground direct burial or concrete encasement, the fixture integrates seamlessly into landscapes, hardscapes, pathways, and architectural accent applications. Compatible with remote 12V transformers (sold separately), it operates across a 9–24V LED voltage range, ensuring flexibility in a wide variety of outdoor lighting projects.
Backed by a limited one-year warranty, the Composite PAR36 Lensed Well Light in Black finish provides dependable performance at a value grade, making it an excellent choice for budget-friendly, professional-quality installations.
$146.75 /each
| SKU(s) | CL-723-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$100.85 /each
| SKU(s) | CL-394-BK |
| Color | Black | Bronze |
| Lamp | 2.5W |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 25ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$41.45 /each

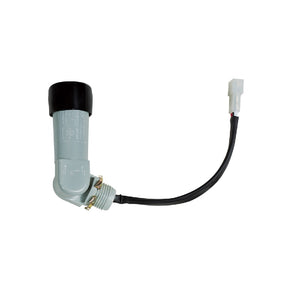

| SKU(s) | T-TR-FIP |
| Color | Black |
| Voltage | 4-12VDC |
| Width | 3-1/2" |
| Height | 1-1/4" |
| Certs |
|
|
View Spec Sheet
|
$63.95 /each
| SKU(s) | CL-632-VG |
| Color | Green |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Green |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 5-3/4" |
| Length | 5-3/4" |
| Height | 27" |
| Diameter | 5-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
