Adjustable Down Light | Long Shroud Bullet Fixture | 12V MR-16
| SKU(s) | CL-101-BK |
| Color | Black | Bronze | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze & White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 7-1/4" |
| Diameter | 2-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

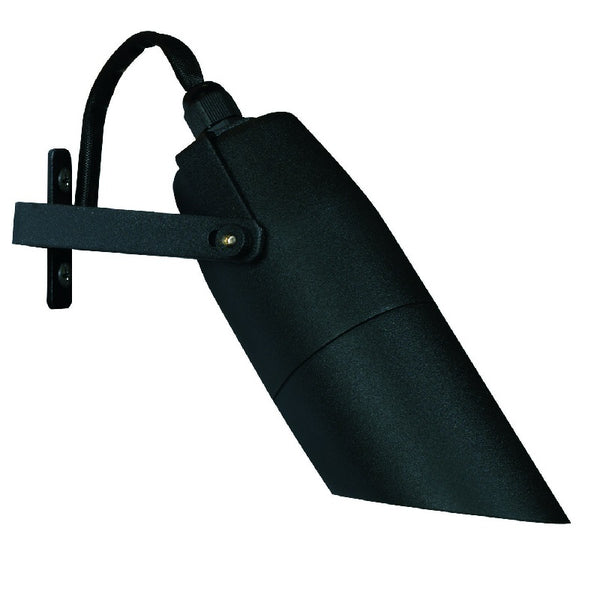

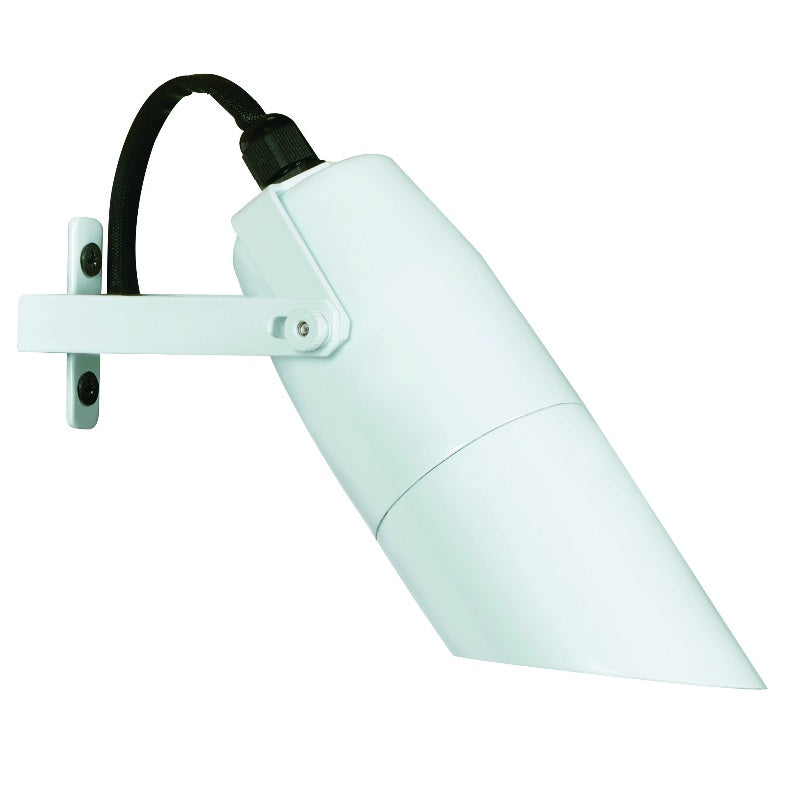

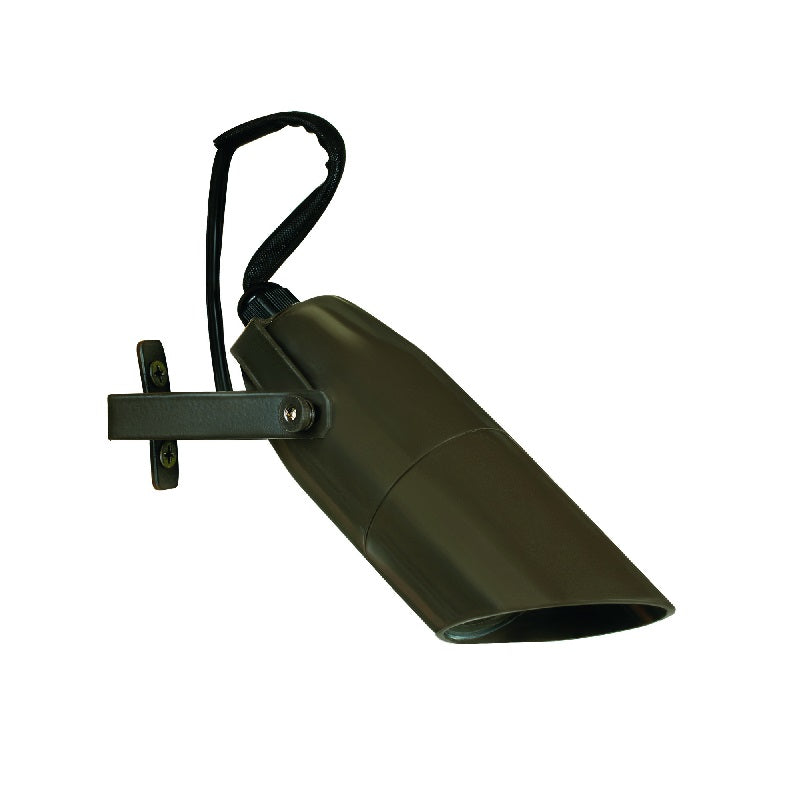

The Adjustable Down Light with Long Shroud is a professional-grade architectural fixture designed for precise outdoor illumination of landscapes, walls, pathways, signage, and architectural features. Constructed from die-cast copper-free aluminum, this bullet light is available in three durable finishes: black, bronze, and white—offering both style and performance for long-lasting outdoor use.
The fixture features a long shroud design, enhancing glare control and light direction for cleaner, more focused illumination. A clear, tempered, heat-resistant flat glass lens protects the lamp while ensuring consistent light output. It comes with a top-grade loose bi-pin socket and spring-loaded design, supporting 12V MR-16 lamps up to 35W (halogen), as well as LED lamps operating in the 9–17V voltage range for energy-efficient applications.
Prewired with a 5-foot 18-2 SPT1-W direct burial cord, the Adjustable Down Light ensures reliable connections. Optional universal connectors (CX-839) or silicone-filled wire nuts (CX-854) are available separately for weatherproof installations.
The die-cast aluminum yoke and mounting bracket provide full horizontal and vertical adjustability, allowing precision alignment to highlight key outdoor features. Designed exclusively for outdoor use, the fixture requires a remote 12V transformer (sold separately).
Backed by a five-year warranty on the housing, the Adjustable Down Light with Long Shroud delivers superior performance, durability, and professional-grade lighting control for residential and commercial projects.
$68.45 /each
| SKU(s) | CL-314-NM |
| Color | Black |
| Lamp | No-Lamp | 6W | 13W |
| Color | Black |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 3-1/2" + 7/8" |
| Diameter | 6-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$84.65 /each
| SKU(s) | CL-324-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 3-3/4" |
| Diameter | 3-7/8" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$61.25 /each
| SKU(s) | CL-638-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 21" |
| Diameter | 4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$84.65 /each
| SKU(s) | CL-326-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 3-3/4" |
| Diameter | 3-7/8" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
