Machined Aluminum Bullet Down Light | 12V MR-16
| SKU(s) | CL-121-BK |
| Color | Black | Bronze | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze & White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 7" |
| Diameter | 2-3/8" |
| LED Life | 25.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

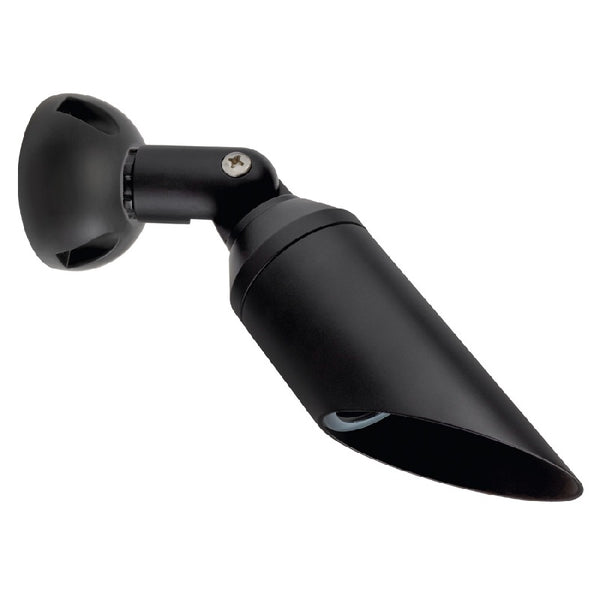

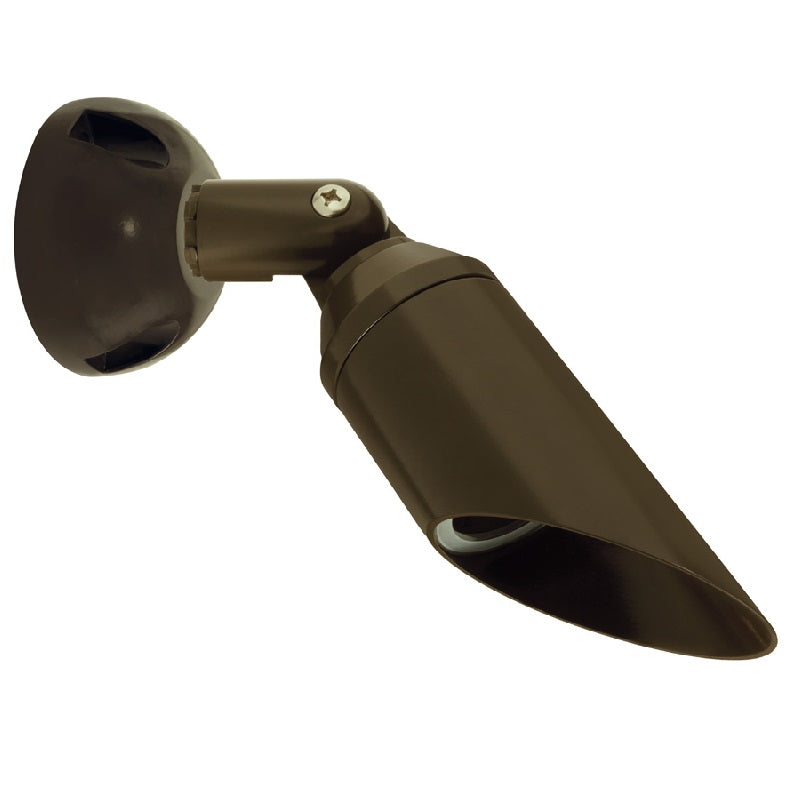

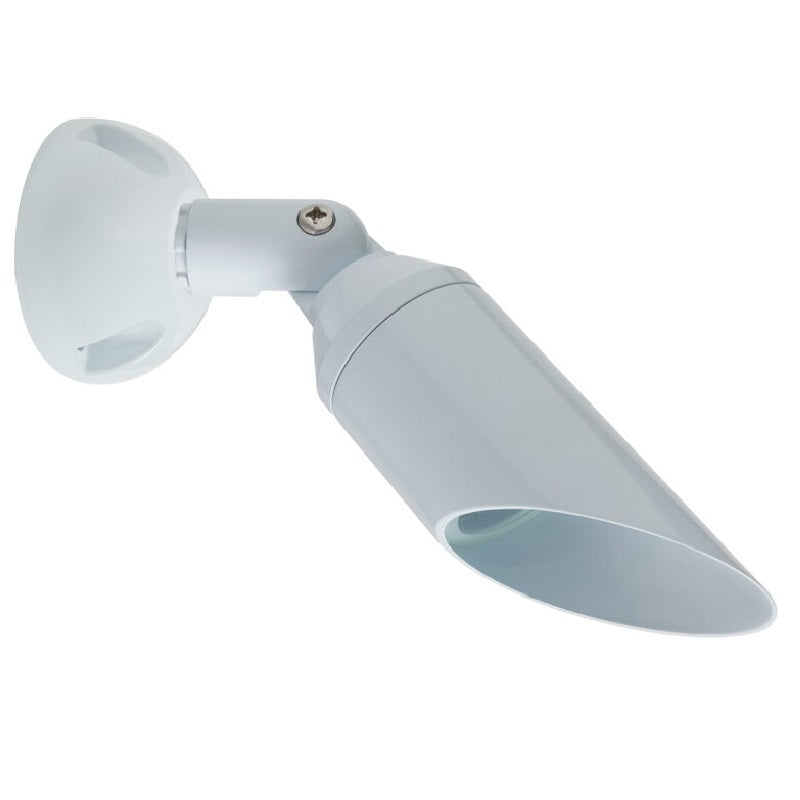

The Machined Aluminum Bullet Down Light is a premium architectural-grade outdoor fixture engineered for durability, precision, and style. Built from corrosion-resistant machined aluminum, this bullet light is available in black, bronze, and white finishes, making it a versatile choice for professional landscape and architectural lighting projects.
The fixture is equipped with a clear, tempered, and heat-resistant glass lens to protect the lamp while ensuring consistent, high-quality illumination. It features a top-grade fixed ceramic bi-pin socket with a secure lamp retention clip, supporting 12V MR-16 LED lamps in 3.5W, 5W, 6W options—or it can be supplied without a lamp. The electrical system supports a voltage range of 9–17V, requiring a remote 12V transformer (sold separately).
Prewired with a 3-foot 18-2 SPT1-W direct burial cord and underground connectors, the Machined Aluminum Bullet Down Light offers a reliable, weatherproof installation. The fixture also includes an adjustable machined aluminum knuckle with a stainless steel Philips screw and a ½” NPT threaded male hub, paired with an aluminum raised canopy mount with a ½” NPT threaded female hub for secure mounting.
Backed by an industry-leading 10-year warranty on the housing, this down light delivers long-lasting performance, precision aiming, and professional-grade illumination for pathways, walls, trees, signage, and architectural accents.
$73.85 /each
| SKU(s) | CL-641-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 12" / 18" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$100.85 /each
| SKU(s) | CL-301-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 14-1/2" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$68.45 /each
| SKU(s) | CL-314-NM |
| Color | Black |
| Lamp | No-Lamp | 6W | 13W |
| Color | Black |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 3-1/2" + 7/8" |
| Diameter | 6-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$59.45 /each
| SKU(s) | CL-660-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 12" / 18" |
| Diameter | 4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
