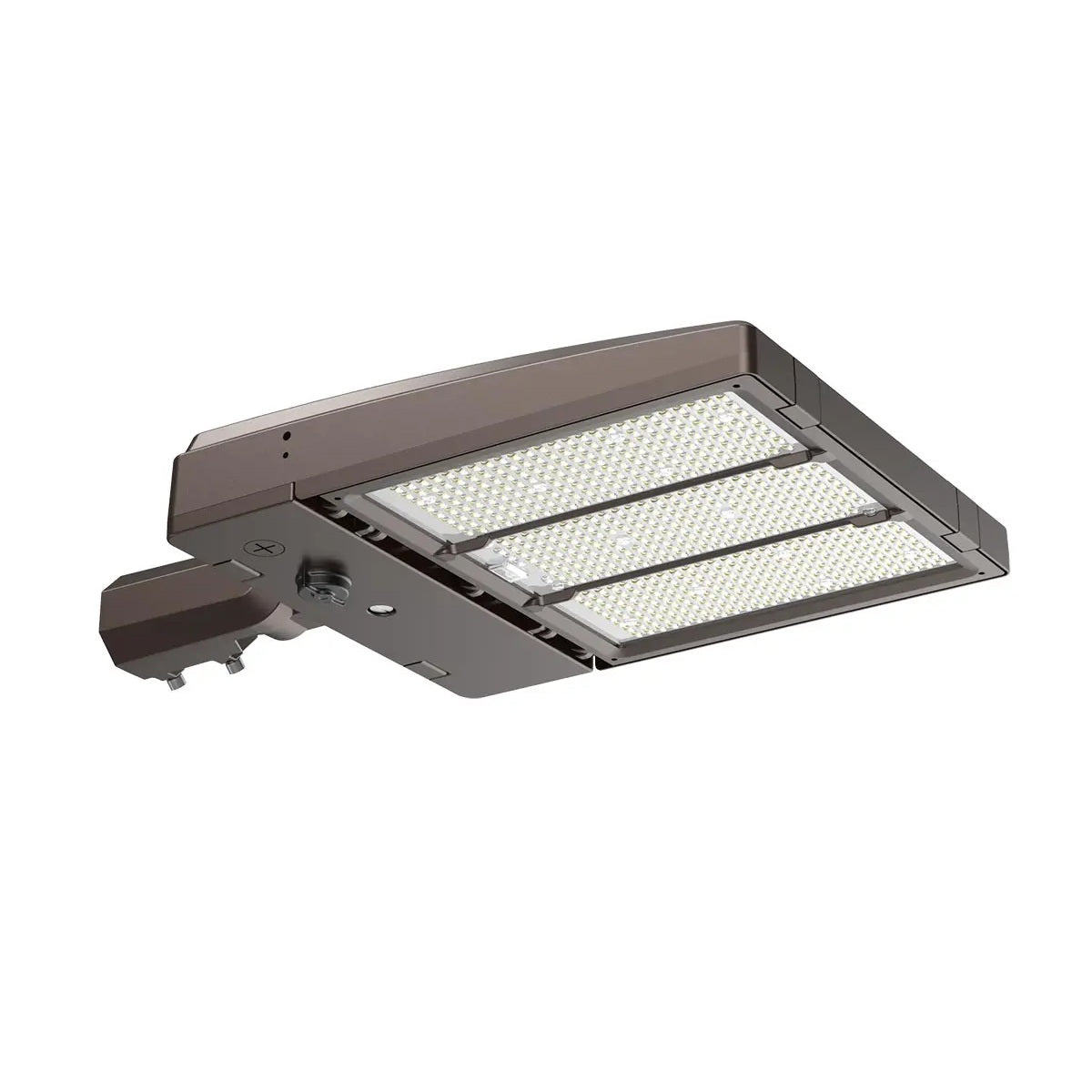

LED Ace Area Light | 45K Lm Max | 120/277V | CCT Selectable | LinmoreLED AA1

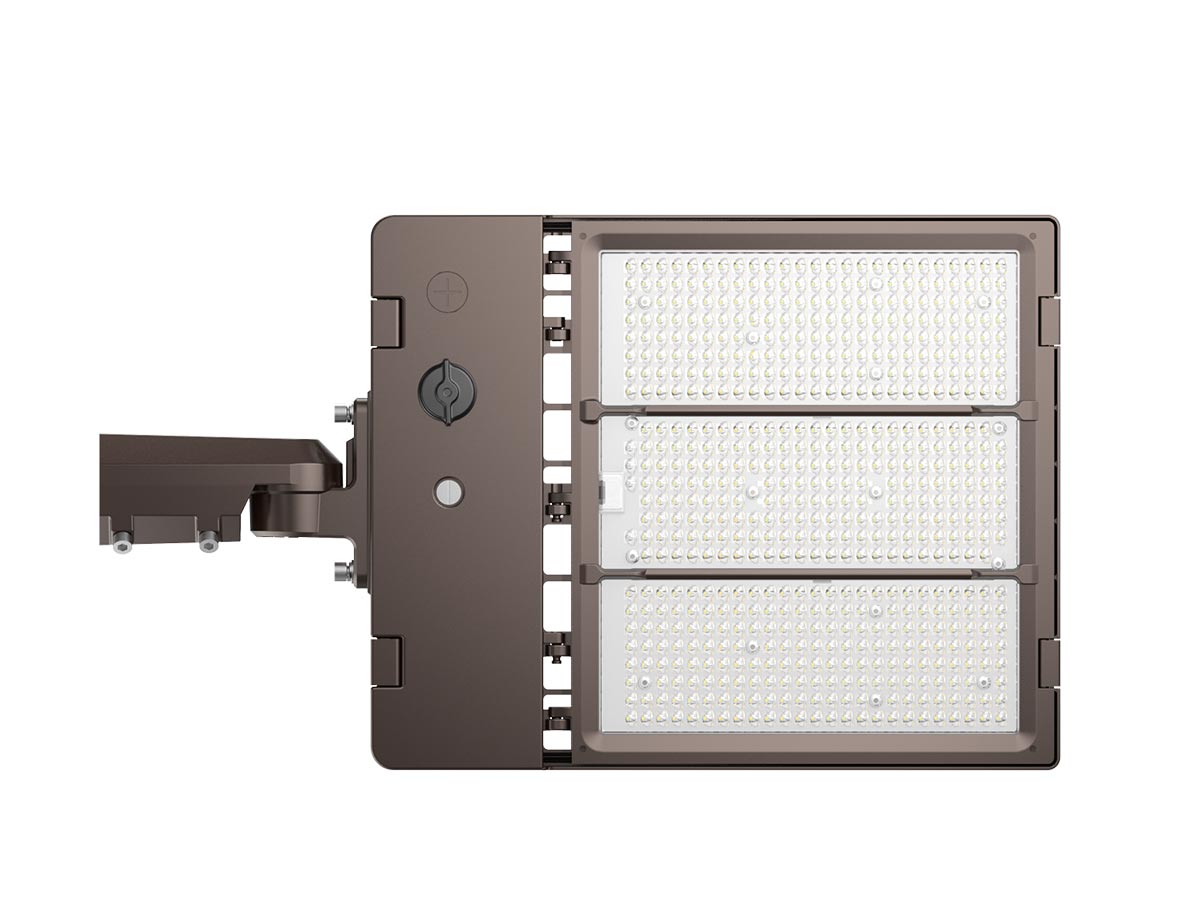

Streamline large-scale commercial layouts, municipal parking grids, and high-security structural perimeters with the groundbreaking Ace LED Area Light (AA1). Engineered to redefine high-intensity exterior illumination, this commercial area light combines an architectural, low-profile aesthetic with unprecedented mechanical versatility for electrical contractors and facility managers. The AA1 platform eliminates the logistical burden of stocking multiple standalone lighting fixtures by integrating dual physical field-control selectors directly into its die-cast aluminum core. Installers can easily adapt to changing site illumination layouts, alternating between three color temperatures (3000K, 4000K, or 5000K) and four independent power stages per housing size, optimizing energy footprints on standard 120-277V or heavy-duty 277-480V (50/60Hz) power infrastructures.

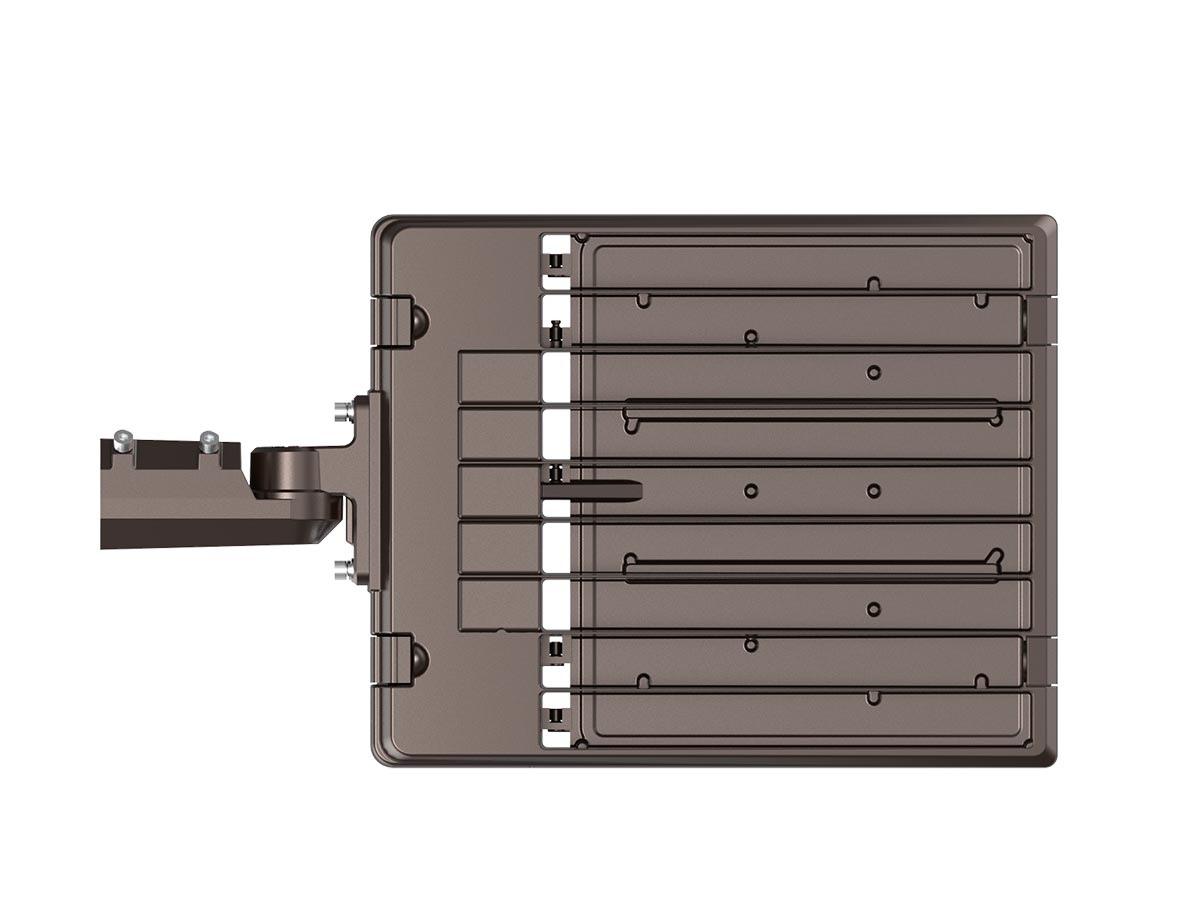

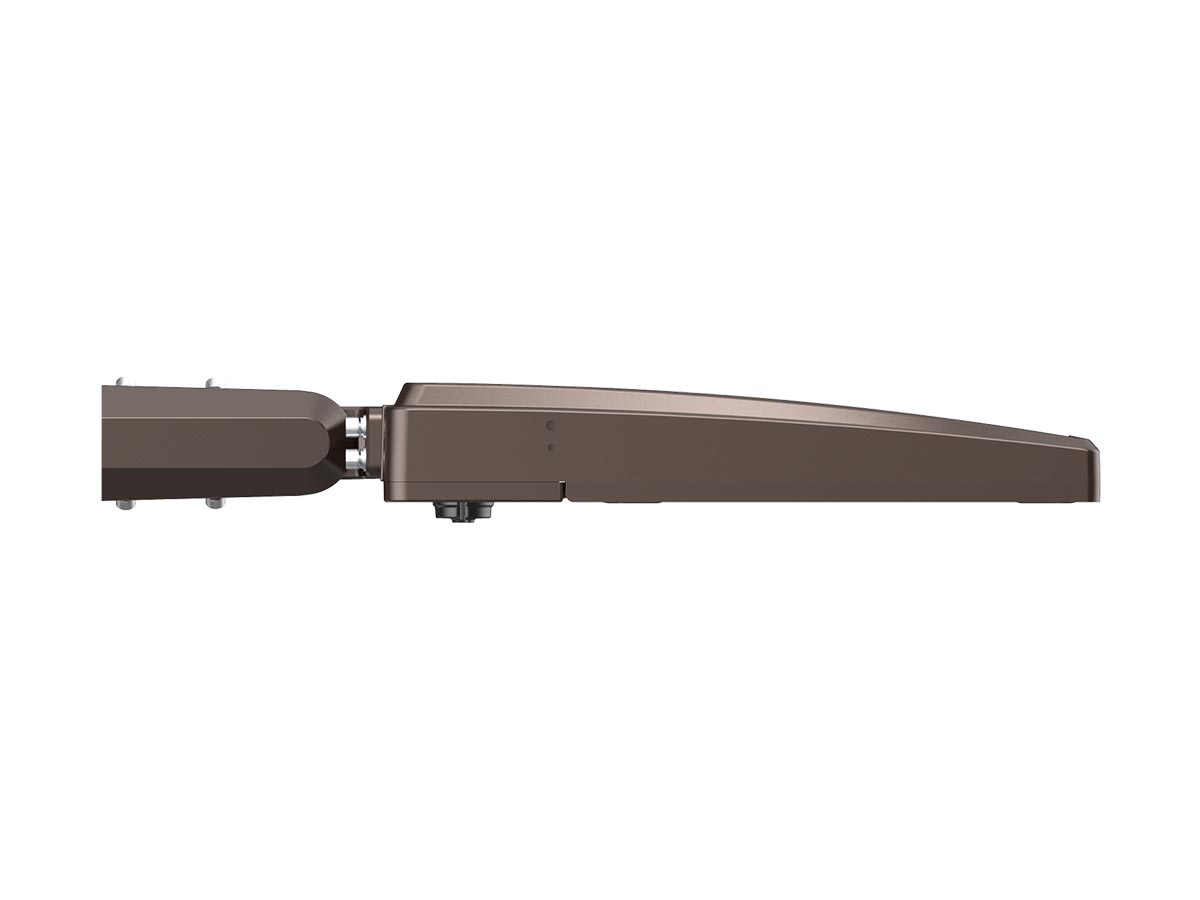

The structural engineering of the Ace AA1 shifts away from traditional tool-dependent maintenance. Utilizing an advanced dual-compartment framework, the fixture features dual sets of robust, tool-less mechanical latches. Opening the first pair allows the UV-stable clear polycarbonate optic shield to be swapped in seconds, allowing contractors to alternate between Type II (T2), Type III (T3), Type IV (T4), and Type V (T5) photometric beam configurations on the fly without breaking its dust-tight and moisture-sealed IP65 and IK08 impact ratings. Opening the second pair of latches reveals an isolated driver compartment, streamlining component field replacements.

Smart Expansion with the EZ-Connect™ System:

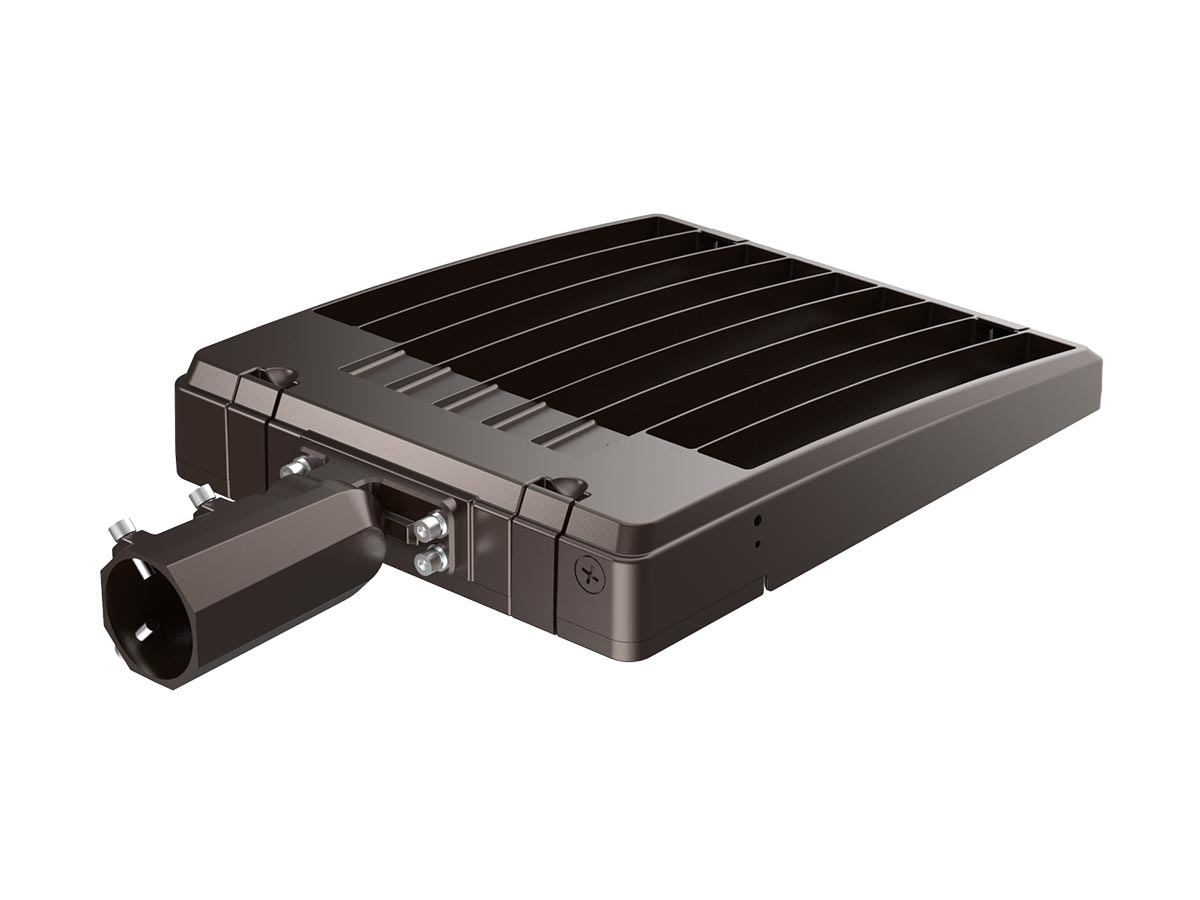

Future-proofing outdoor infrastructure is seamless thanks to the integrated EZ-Connect™ Receptacle. Positioned cleanly on the low-profile housing cover, this receptacle uses a tool-free Twist and Lock system that permits late-stage site modifications. Field crews can snap on standalone dusk-to-dawn photocells, line-of-sight PIR/Microwave occupancy motion sensors, or advanced UltraLink Bluetooth® Networked Lighting Control (NLC) Mesh hardware anytime after installation without altering interior wire runs. Standardized with a robust 10kV surge protection network, an 80+ CRI score, and smooth 0-10V dimming infrastructures that dial output down from 100% to complete shutoff, this multi-wattage fixture provides durable commercial performance across extreme regional temperature shifts ranging from -40°F up to 122°F.

Key Applications:

• Automotive Dealerships & Showcase Lots: Provides clear, broad color rendering that sharpens visibility and highlights merchandise lines.

• Commercial Retail & Office Parks: Secures broad walking perimeters and exterior building assets with balanced, glare-controlled lighting.

• Outdoor Parking Lots & Roadways: Reduces blind spots and enhances public pedestrian safety with high-lumen, customizable beam configurations.

• Sports Courts & Public Recreational Parks: Delivers high-level vertical footcandles and structural durability needed for demanding multi-sport environments.

Technical Specification
