90° Opposing Brass Marker Well Light | 12V MR16 In-Ground Fixture
| SKU(s) | CL-205-AB |
| Color | Antique Bronze | Black |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Black Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K & 3000K |
| Width | 3-3/4" |
| Length | 3-3/4" |
| Height | 6" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

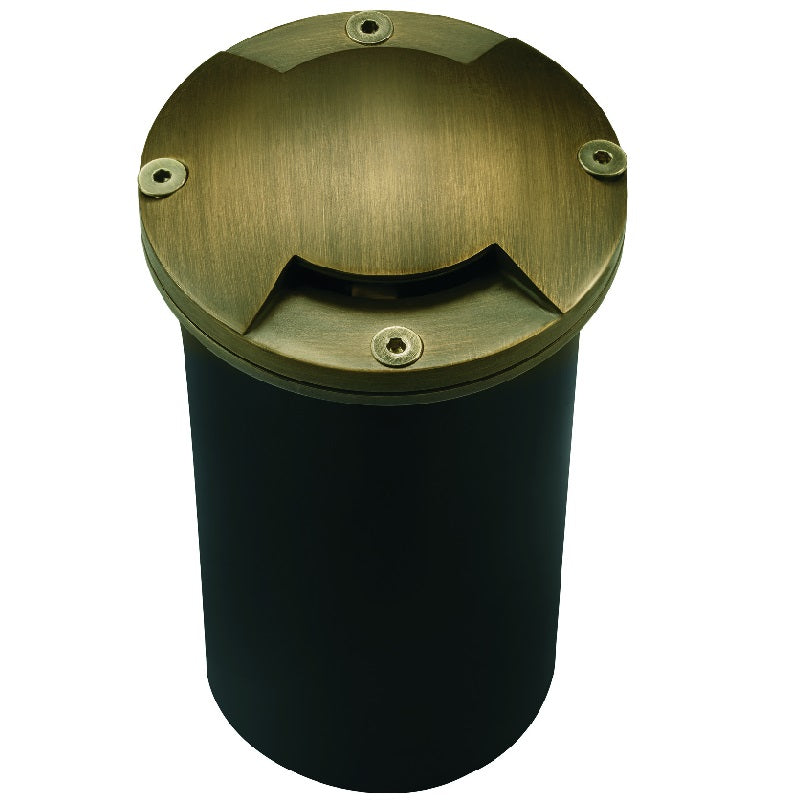

The 90° Opposing Brass Marker Well Light with PVC Sleeve is a premium, low-voltage, directional in-ground lighting fixture designed to deliver balanced illumination in opposite-facing directions, making it ideal for lighting pathways, driveways, garden borders, or architectural features from both sides simultaneously.
Crafted from solid cast brass, this rugged fixture is available in Antique Bronze and Black Brass finishes, offering corrosion resistance and long-lasting outdoor performance. Housed in a PVC sleeve with stainless steel retention clips, it installs securely in soil or concrete, blending seamlessly with your landscape.
The fixture includes two opposing openings with raised flat glass lenses made of clear, tempered, and heat-resistant glass, ensuring durability and optimal light dispersion. It uses a 12V MR16 lamp (up to 50W halogen or compatible LED), held by a high-quality ceramic bi-pin socket with a retention clip for added security.
Prewired with a 3-foot 18-2 SPT2-W direct burial cord, the light is ready for integration with standard landscape wiring. A remote 12V transformer is required for operation (sold separately), and LED-compatible voltage regulation (9V–17V) ensures energy efficiency and long-term savings.
Perfect for high-end residential and commercial landscape designs, this fixture comes backed by a limited lifetime warranty on the housing.
$75.65 /each
| SKU(s) | L-EDBA-3W-BT |
| Color | White |
| Wattage | 0.5W - 3W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 200LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7/8" |
| Length | 7/8" |
| Height | 1-7/8" |
| Diameter | 7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$35.15 /each
| SKU(s) | CL-503-BK |
| Color | Black | Green |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Green |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3" |
| Length | 3" |
| Height | 7-3/4" |
| Diameter | 3" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-EDT3-3W-BT |
| Color | White |
| Wattage | 0.5W - 3W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 200LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7/8" |
| Length | 7/8" |
| Height | 1-3/8" |
| Diameter | 7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$187.25 /each
| SKU(s) | CL-213-SS |
| Color | Stainless Steel |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | 316 Marine Stainless Steel |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 10-1/2" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
