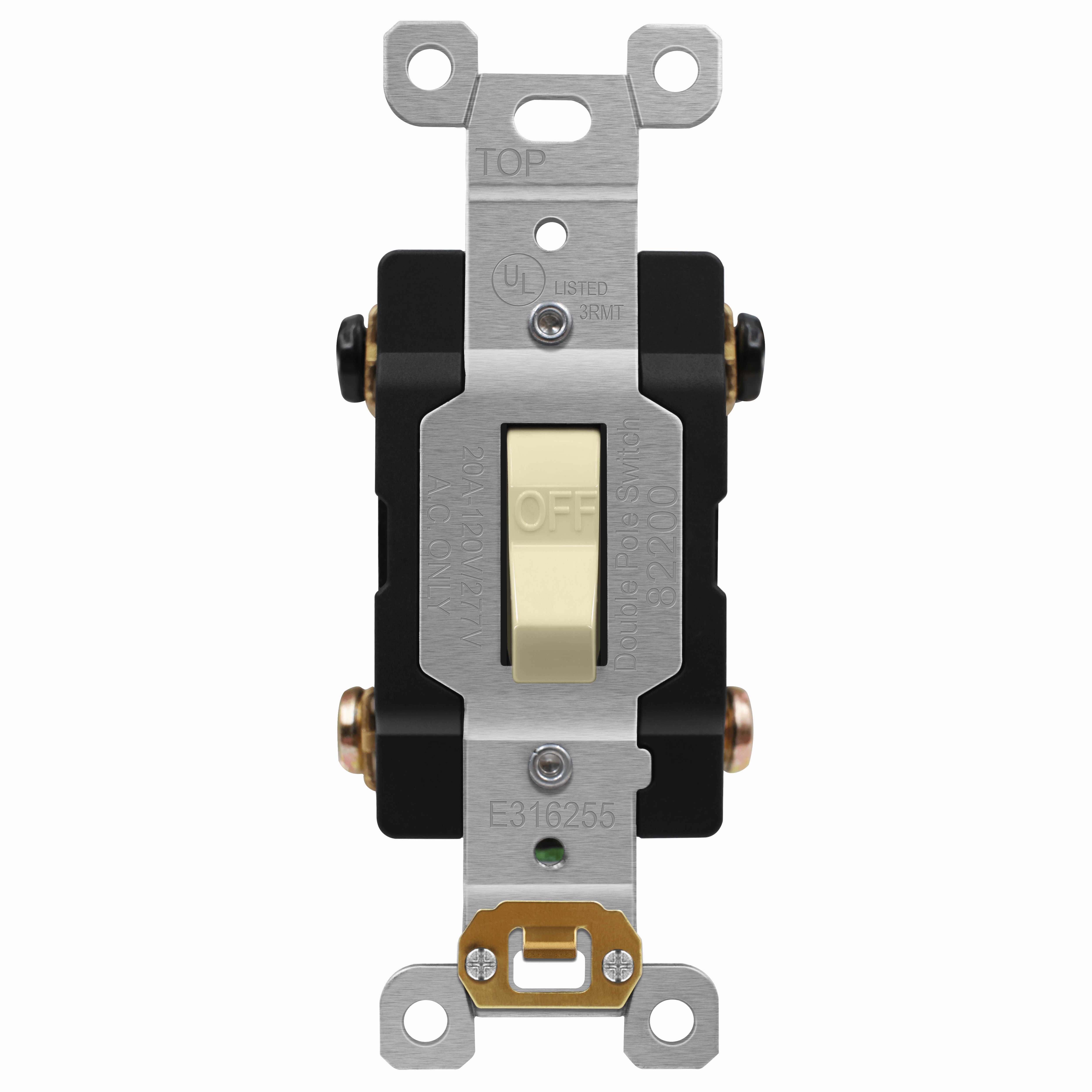

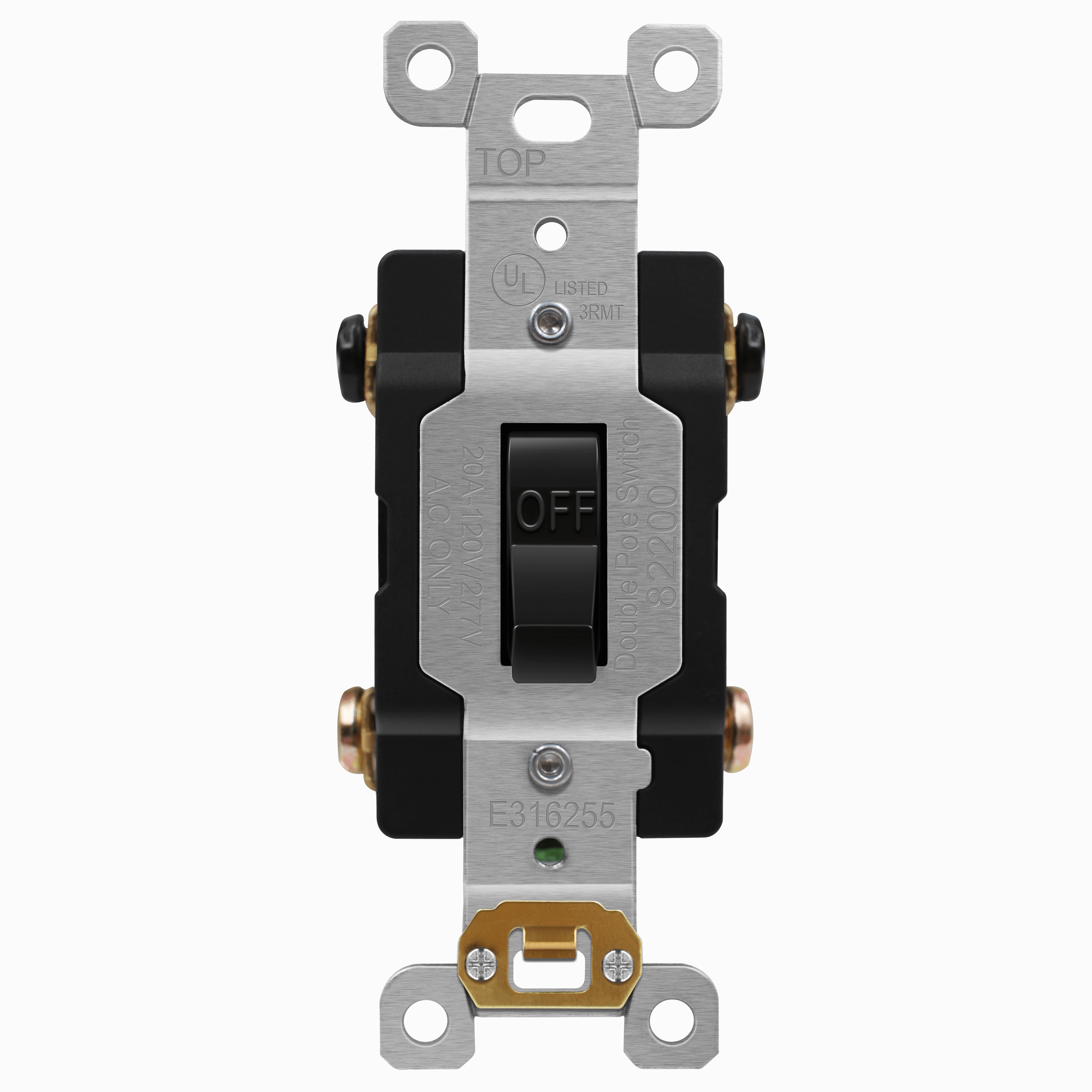

20Amp 1-Gang 2-Pole Toggle Switch | 120/277V | Commercial Grade | Side & Push Wire | Enerlites 82200

The Commercial Grade 20A Double Pole Toggle Switch is a heavy-duty, illuminated ON switch built for durability and ease of installation in demanding environments. Designed with side wiring and push-in terminals, it ensures fast, secure connections using 12 or 14 AWG copper wires. The galvanized steel mounting strap provides exceptional corrosion resistance, making it ideal for commercial lighting control and industrial-grade applications.

Rated for 120/277V, this double-pole toggle switch is perfect for controlling fluorescent lighting fixtures and other heavy electrical loads. It features large head double-drive screws (standard and Phillips) for quick wiring and removable yoke tabs for precise alignment during installation. The integrated pilot light clearly indicates when the load is ON, enhancing safety and convenience.

Key Features:

• Commercial-grade, heavy-duty double pole toggle switch

• 20A, 120/277V AC rating – ideal for fluorescent lighting and industrial circuits

• Side wired terminals for 12 or 14 AWG copper conductors

• Combination screw heads for faster installation

• Pilot light illuminates when load is ON

• Galvanized steel strap resists corrosion

• UL94 V2 flame-retardant housing

• Operating temperature range: -104°F (no impact) to 167°F

• 2-year warranty

• UL listed

Applications:

• Commercial buildings

• Industrial facilities

• Fluorescent lighting systems

• Workshops and warehouses
