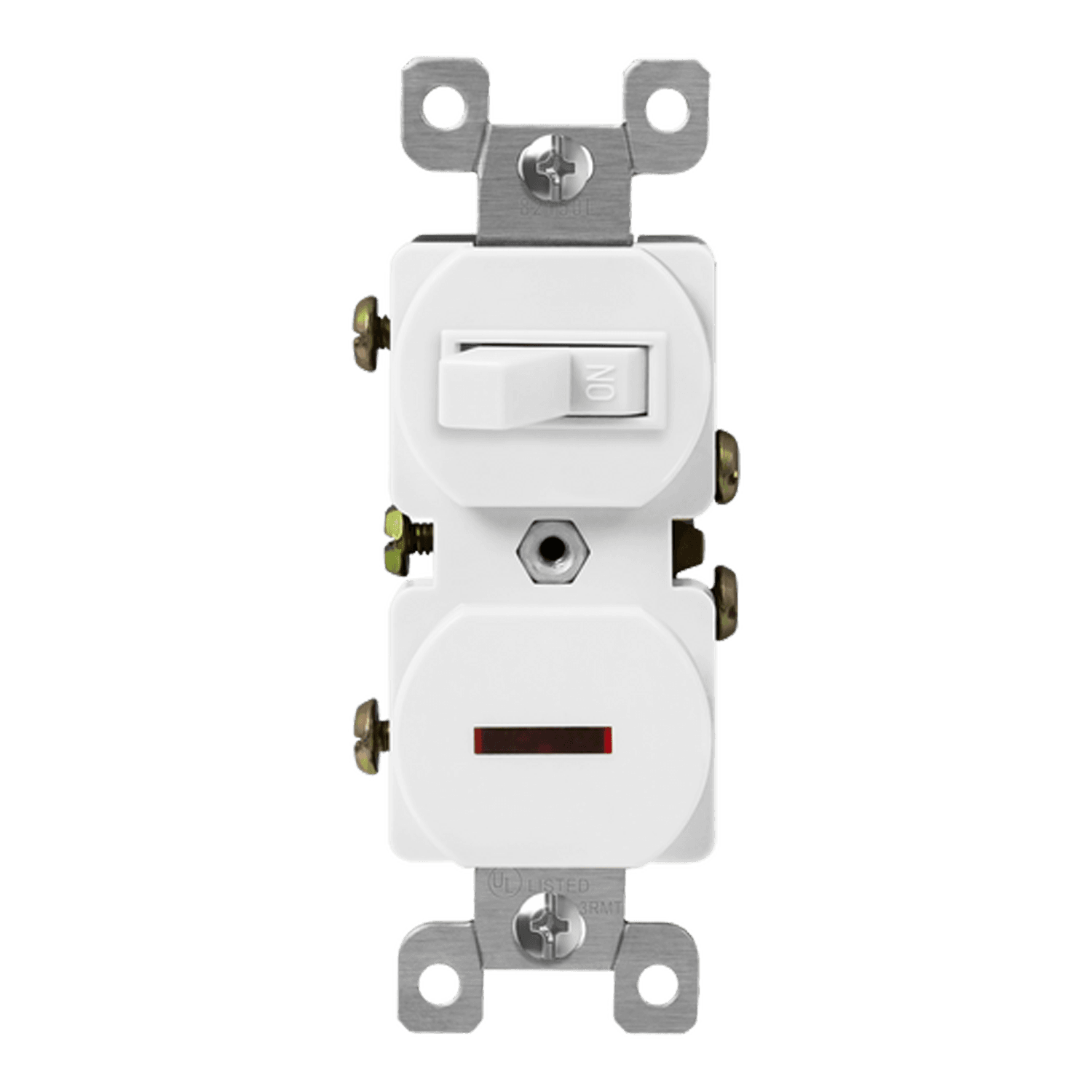

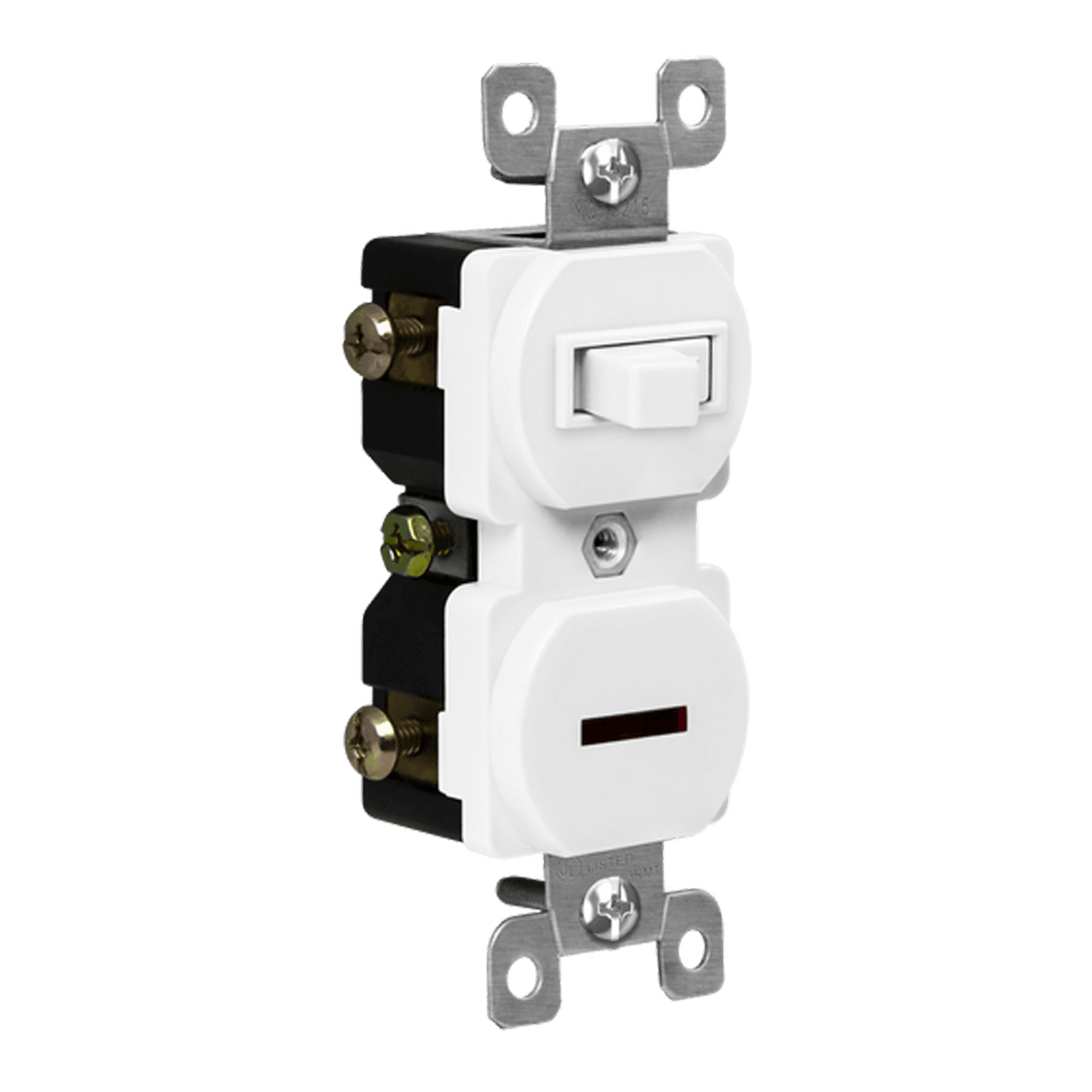

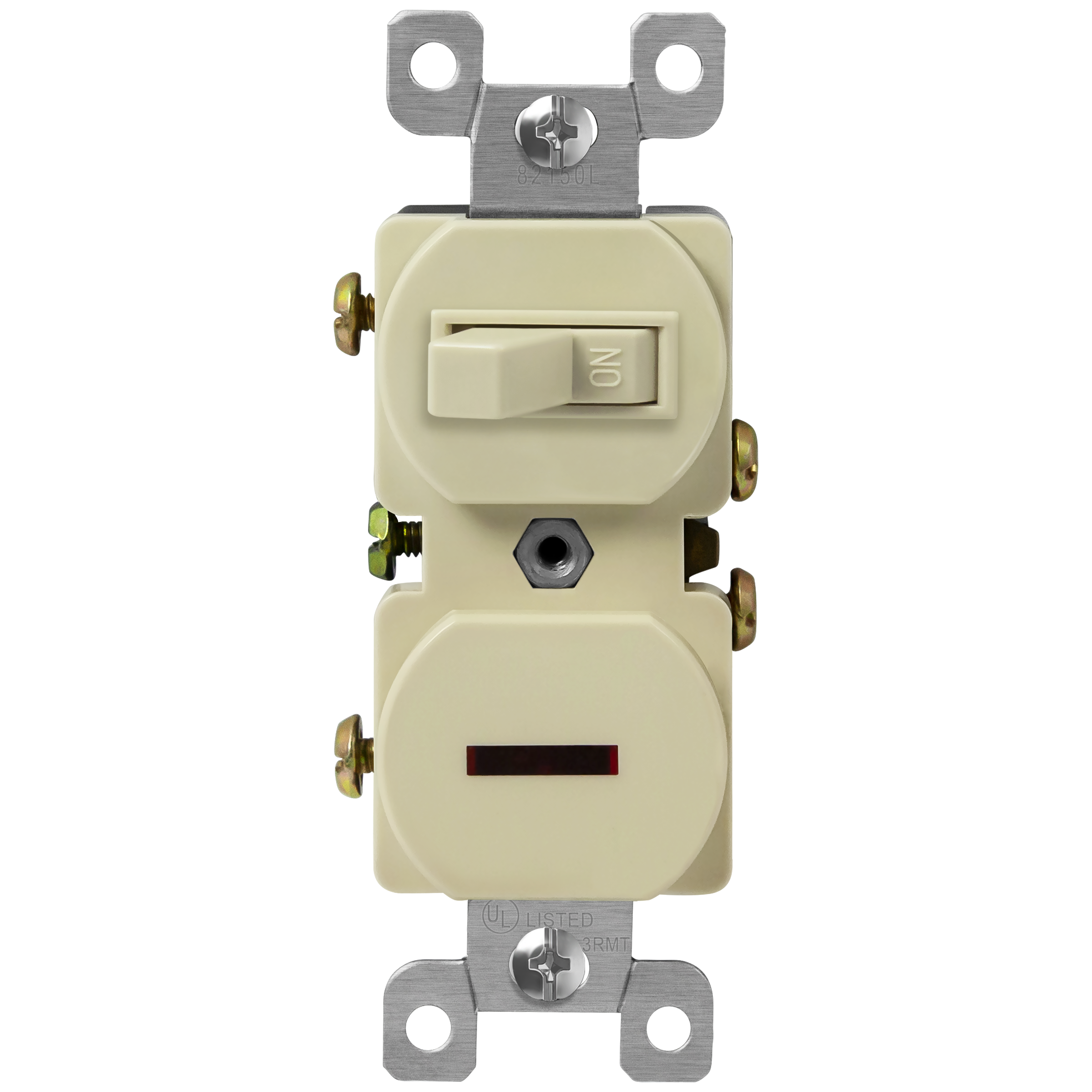

15 Amp Combination Toggle Switch With Pilot Light | 120V | Commercial Grade | Enerlites 82150L

The ENERLITES 82150L Combination 15 Amp Switch with Pilot Light is a reliable single-pole combination device designed for both residential and commercial applications where visual circuit status indication is required. The integrated pilot light provides a clear visual cue when the circuit is energized, making it ideal for closets, basements, mechanical rooms, stairways, and utility areas.

Built with a long, broad mounting strap, this device offers superior stability and helps eliminate floating installations for a secure, professional fit. The clamp-style side wire terminals accept 12 or 14 AWG solid or stranded copper wires, allowing for faster and easier installation using standard wire strippers. Terminal screws are pre-backed out and ready for wiring, reducing installation time on the job site.

Designed to fit standard wall boxes, the ENERLITES 82150L supports optional grounding via a self-grounding clip or green terminal screw. Constructed from durable materials with a UL94 V2 flammability rating, this switch is UL listed and backed by a 2-year warranty, ensuring dependable performance and long service life.

Technical Specifications

• Brand: ENERLITES

• Model: 82150L

• Device Type: Combination Switch with Pilot Light

• Switch Type: Single Pole

• Amperage: 15 Amp

• Voltage: 120 VAC

• Wiring Method: Side wire, clamp-style terminals

• Wire Compatibility: 12–14 AWG copper (solid or stranded)

• Mounting Strap: Long, broad strap for secure installation

• Grounding Options:

  • Self-grounding clip

  • Green terminal screw

• Wall Box Compatibility: Standard wall boxes

• Flammability Rating: UL94 V2

• Operating Temperature:

  • -104°F (without impact) to 167°F maximum continuous

• Certifications: UL Listed

• Warranty: 2-Year Limited Warranty

• Applications: Residential, commercial, closets, basements, stairways, utility rooms
