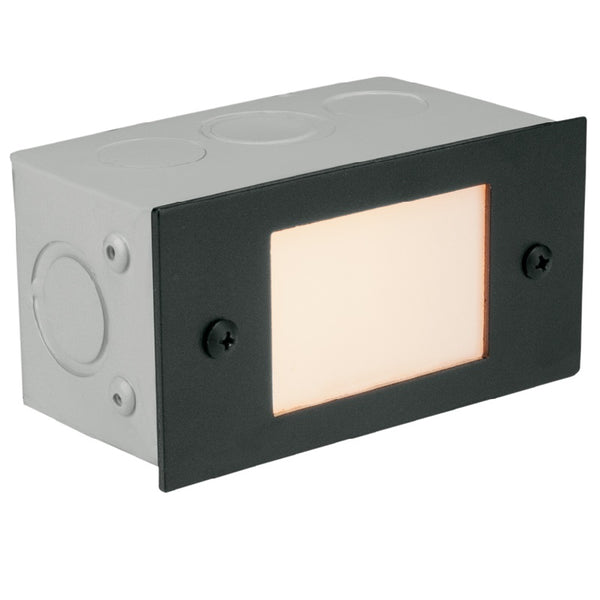

Lensed Step Light | Surface Mount | SCB Socket
| SKU(s) | CL-360-BK |
| Color | Black | Bronze | Rust | White |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black & Bronze & Rust & White |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-1/8" |
| LED Life | 25.000 Hrs |
| Wire | 25ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

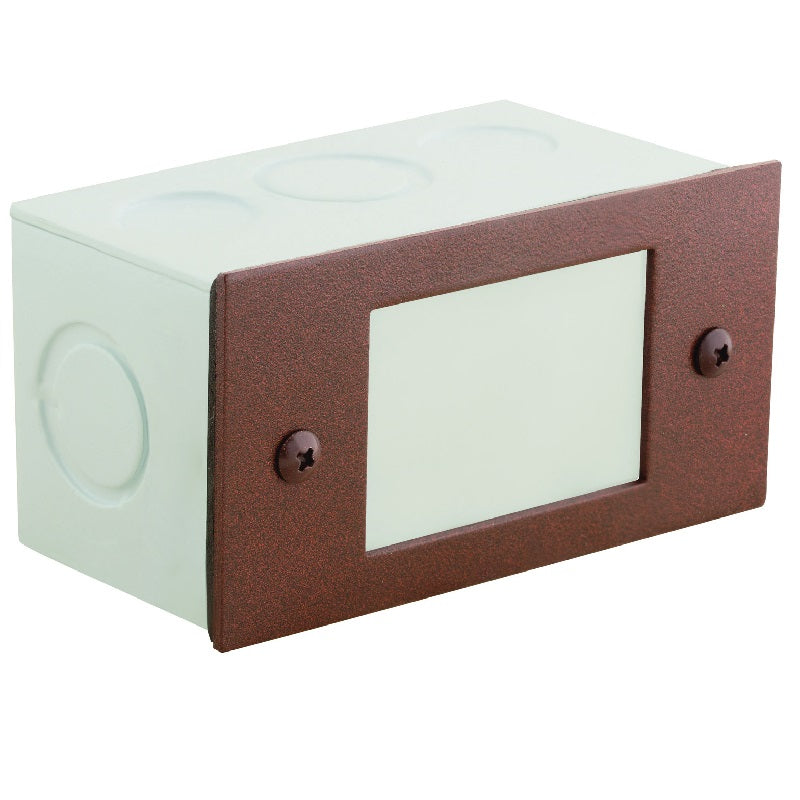

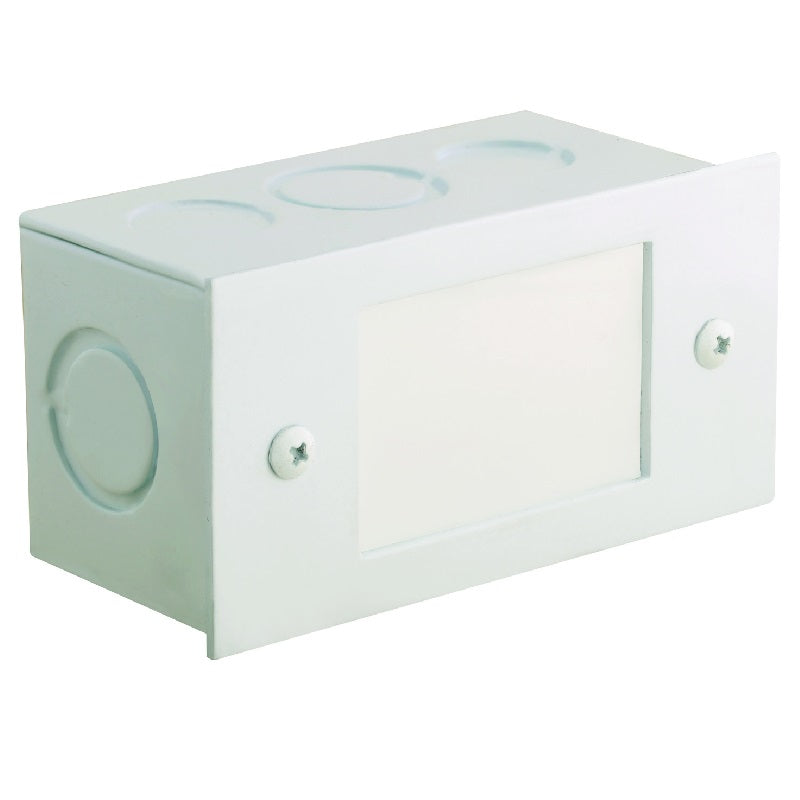

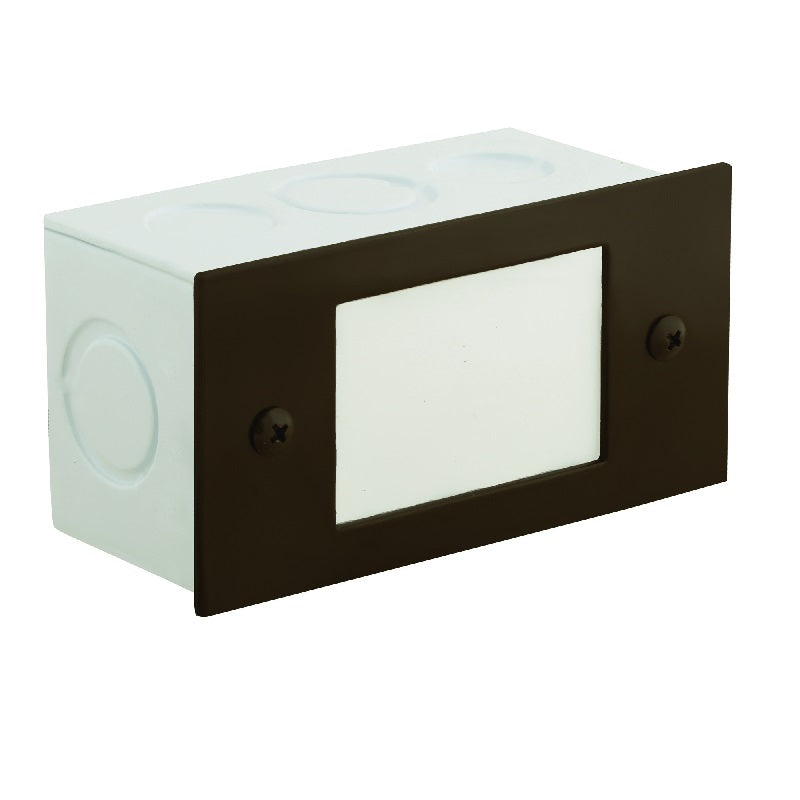

The Lensed Boxed Step Light is an architectural-grade lighting solution designed to enhance safety and ambiance for outdoor steps, walkways, and masonry applications. Built from durable aluminum with a white powder-coated steel mount box, this step light offers a sleek, long-lasting finish available in Black, Bronze, Rust, and White.
Its impact-resistant white polycarbonate lens is sealed and secured to the faceplate, ensuring durability against weather and wear. The fixture uses a top-grade S.C. bayonet socket for simple lamp replacement and supports 12V SCB lamps up to 27W halogen max (LED compatible for energy efficiency).
Engineered for recessed mounting in concrete, brick, and masonry surfaces, the step light is prewired with a 12-inch direct burial cord for quick installation. It operates within a 9–17V range when paired with LED lamps and requires a remote 12V transformer (sold separately).
✔ Housing: Aluminum with powder-coated steel recessed box
✔ Lens: High-impact white polycarbonate, sealed to faceplate
✔ Socket: S.C. bayonet socket for easy tool-free access
✔ Lamp: 12V SCB, 27W halogen max (LED compatible)
✔ Wiring: Prewired 12-inch direct burial cord, connector sold separately
✔ Mounting: Recessed back box with 3×½″ NPT inlets, ideal for masonry
✔ Electrical: 12V operation, 9–17V range with LED, transformer required
✔ Warranty: 5-year warranty on housing against defects
Perfect for residential and commercial projects, this boxed lensed step light provides safe, reliable, and aesthetically pleasing illumination.
$216.00 /each
| SKU(s) | CL-395-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 50LM - 410LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 8-3/4" |
| Height | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$100.85 /each
| SKU(s) | CL-301-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 14-1/2" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-ED16-5W-BT |
| Color | Black |
| Wattage | 1W-5W |
| Voltage | 9V-17V AC & DC |
| Lumens | 25LM - 530LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 1-7/8" |
| Diameter | 1-7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$73.85 /each
| SKU(s) | CL-641-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 12" / 18" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
