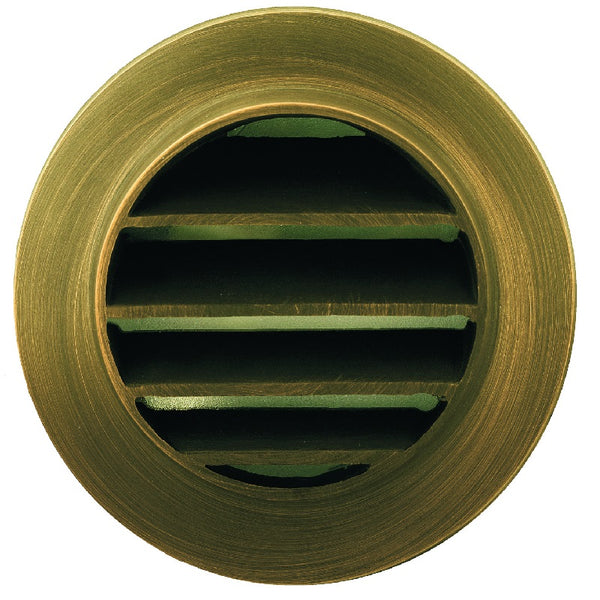

Brass Lensed Surface Brick-Step Light | Multiple Finishes | 12V T3
| SKU(s) | CL-342B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-3/8" |
| Length | 3-3/8" |
| Height | 3-3/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Brass Lensed Surface Brick-Step Light combines durability, architectural design, and reliable illumination for residential and commercial applications. Crafted from corrosion-resistant cast brass, this fixture is available in Antique Bronze, Gun Metal, Silver Plated, and Natural Brass finishes to complement a variety of outdoor styles.
The light features a frosted, heat-resistant flat glass lens that ensures even light diffusion while reducing glare. It includes a fixed T5 wedge socket and operates with a 12V T3 lamp (18W max, halogen or LED equivalent – lamp not included).
For convenience, the fixture is prewired with an 18-2 SPT1-W direct burial cord, compatible with optional silicone-filled wire nuts (CX-854) for secure connections. Its surface-mount design with mounting plate makes installation straightforward on brick, concrete, or other masonry surfaces.
This step light operates within a 9–17V range when used with LED lamps and requires a remote 12V transformer (magnetic recommended). Designed for long-lasting performance, it is backed by a limited lifetime warranty on the brass housing against manufacturer defects.
Key Features:
Step light with lensed design for even illumination
Constructed from corrosion-resistant cast brass
Available in Antique Bronze, Gun Metal, Silver Plated, and Natural Brass finishes
Frosted, heat-resistant flat glass lens reduces glare
Socket: Fixed T5 wedge socket for 12V T3 lamp (18W max, lamp not included)
Prewired with 18-2 SPT1-W direct burial cord for easy wiring
Surface-mount installation with included mounting plate – ideal for brick, concrete, and masonry
Works with 9–17V LED lamps or halogen equivalent
Requires remote 12V transformer (sold separately)
Limited lifetime warranty on brass housing
$344.75 /each
| SKU(s) | TR-40W-DT-TPC-SS |
| Wattage | 40W | 75W | 100W | 200W |
| Wattage | 40W, 75W, 100W, 200W |
| Voltage | 120V 60Hz |
| Width | W 3.67" / W 4.05" |
| Length | L 8.2" / L 11.35" |
| Height | H 4.2" / H 4.05" |
| Wire | 6 Foot plug-in cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$108.00 /each

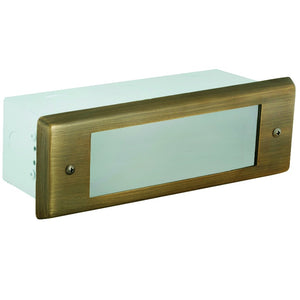

| SKU(s) | CL-373B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8" |
| Height | 2-5/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$108.00 /each

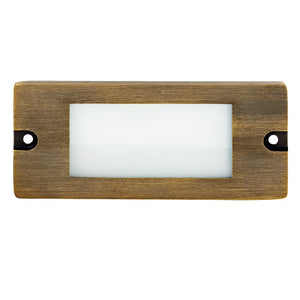

| SKU(s) | CL-344B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 5-1/2" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$108.00 /each

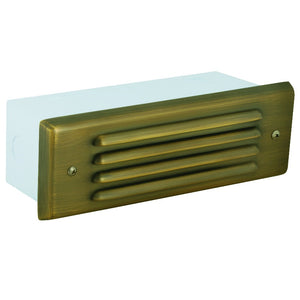

| SKU(s) | CL-374B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8" |
| Height | 2-5/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
