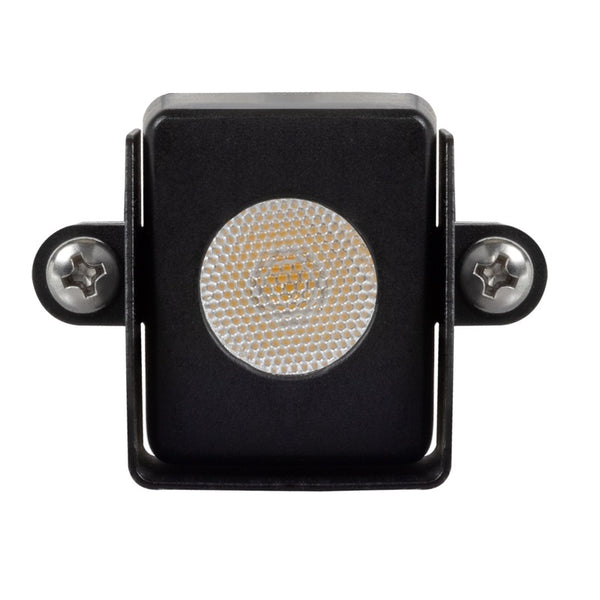

Brass Mini Beam LED Light | Black Finish | Optional 6” Stake
| SKU(s) | CL-MINI-BK |
| Color | Black |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 230LM |
| Color Temp | 3000K |
| Width | 1-1/4" |
| Height | 7-1/4" |
| LED Life | 30.000 Hrs |
| Wire | 10ft SPT-1W wire |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Brass Mini Beam Light delivers focused illumination in a compact, durable design ideal for outdoor and underwater applications. Constructed from corrosion-resistant cast brass with a black finish, this architectural-grade fixture is built for longevity in harsh environments.
Equipped with a 3W dimmable integrated LED module (230 lumens, >80 CRI), the light features a 45° beam spread with an adjustable color temperature switch (2700K or 3000K) to create the perfect ambiance. With an IP68 rating, it is fully protected against water and dust, making it ideal for installation in fountains, ponds, waterfalls, stone lanterns, rock beds, or beneath steps. (⚠️ Not suitable for swimming pools, lakes, or spas.)

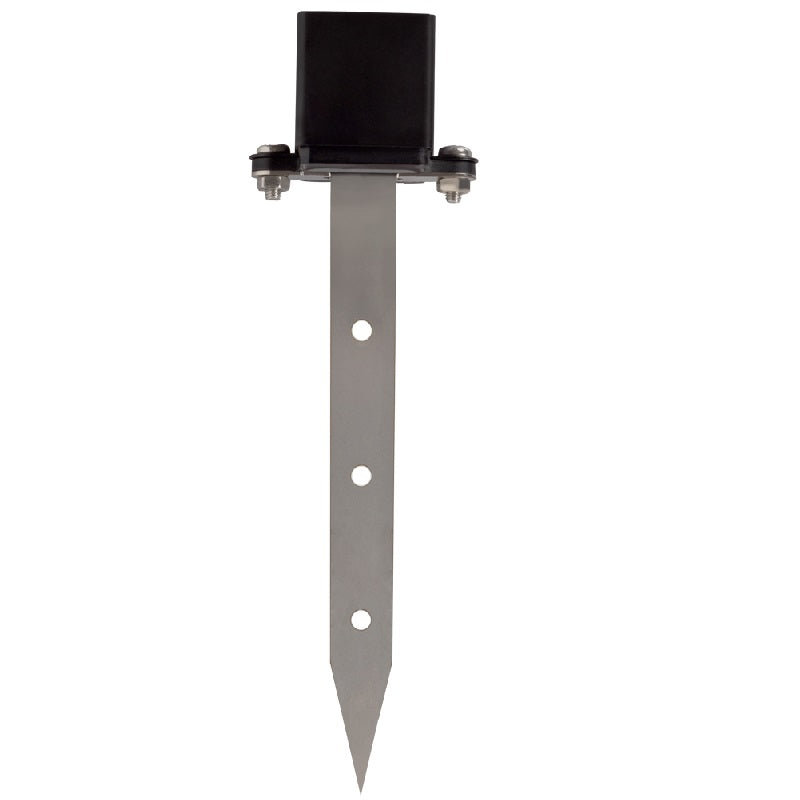

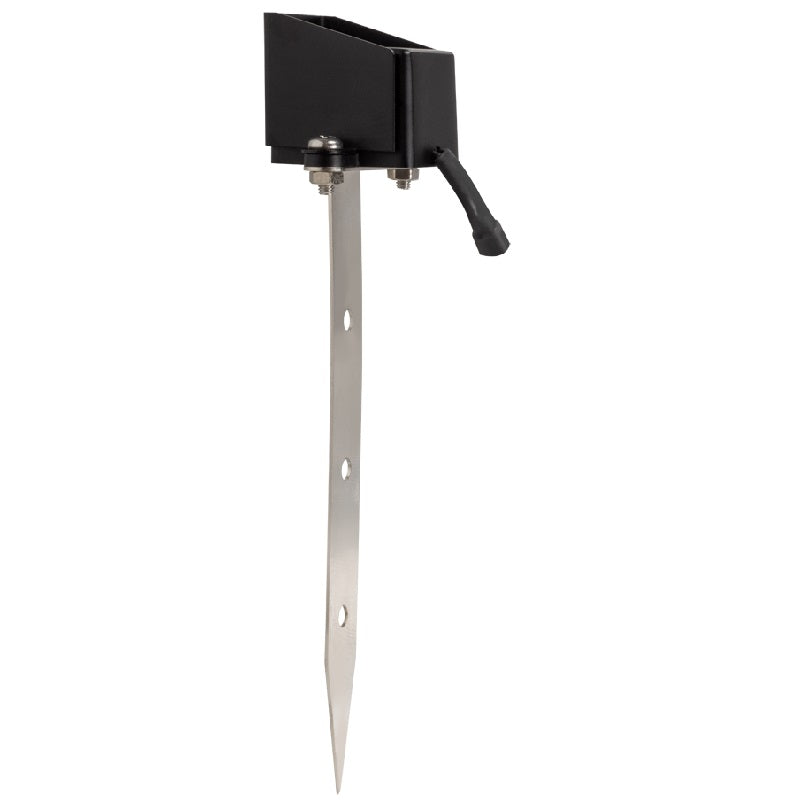

The fixture comes prewired with a 10-foot SPT-1W wire, ready for connection using optional silicone-filled wire nuts (CX-854) or quick-locking connectors (CX-LOC). A 6” stainless steel stake is available for ground mounting, while the included glare shield reduces unwanted light spill.
This mini beam light operates on a 12V low-voltage magnetic transformer (not compatible with electronic transformers). It supports a wide voltage range of 9–17V and performs reliably in extreme conditions, with an ambient temperature range of -22ºF to 176ºF. With a rated life of 50,000 hours and a 10-year warranty, this fixture is a long-lasting solution for precision outdoor lighting.
Key Features:
Mini beam LED light in durable black brass finish
3W integrated LED (230 lumens, CRI >80)
Adjustable CCT switch: 2700K or 3000K
Beam spread: 45° with glare shield included
Waterproof IP68 rating for fountains, ponds, waterfalls, and outdoor features
Prewired with 10-foot SPT-1W wire for easy installation
Optional 6” stainless steel stake for ground mounting
Dimmable with 12V magnetic transformer (9–17V range)
Operates in -22ºF to 176ºF environments
50,000-hour lifespan with 10-year warranty
$133.25 /each
| SKU(s) | CL-395B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$288.00 /each
| SKU(s) | CL-731B-T-AB-12 |
| Size | 12" | 18" | 24" |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 2.7K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 180LM |
| Color Temp | 2700K |
| Width | 1-3/8" |
| Length | 1-3/8" |
| Height | 12" / 18" / 24" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$118.85 /each
| SKU(s) | CL-652B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 5-1/4" |
| Length | 5-1/4" |
| Height | 23" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$108.00 /each
| SKU(s) | CL-364B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/8" |
| Height | 3-1/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
