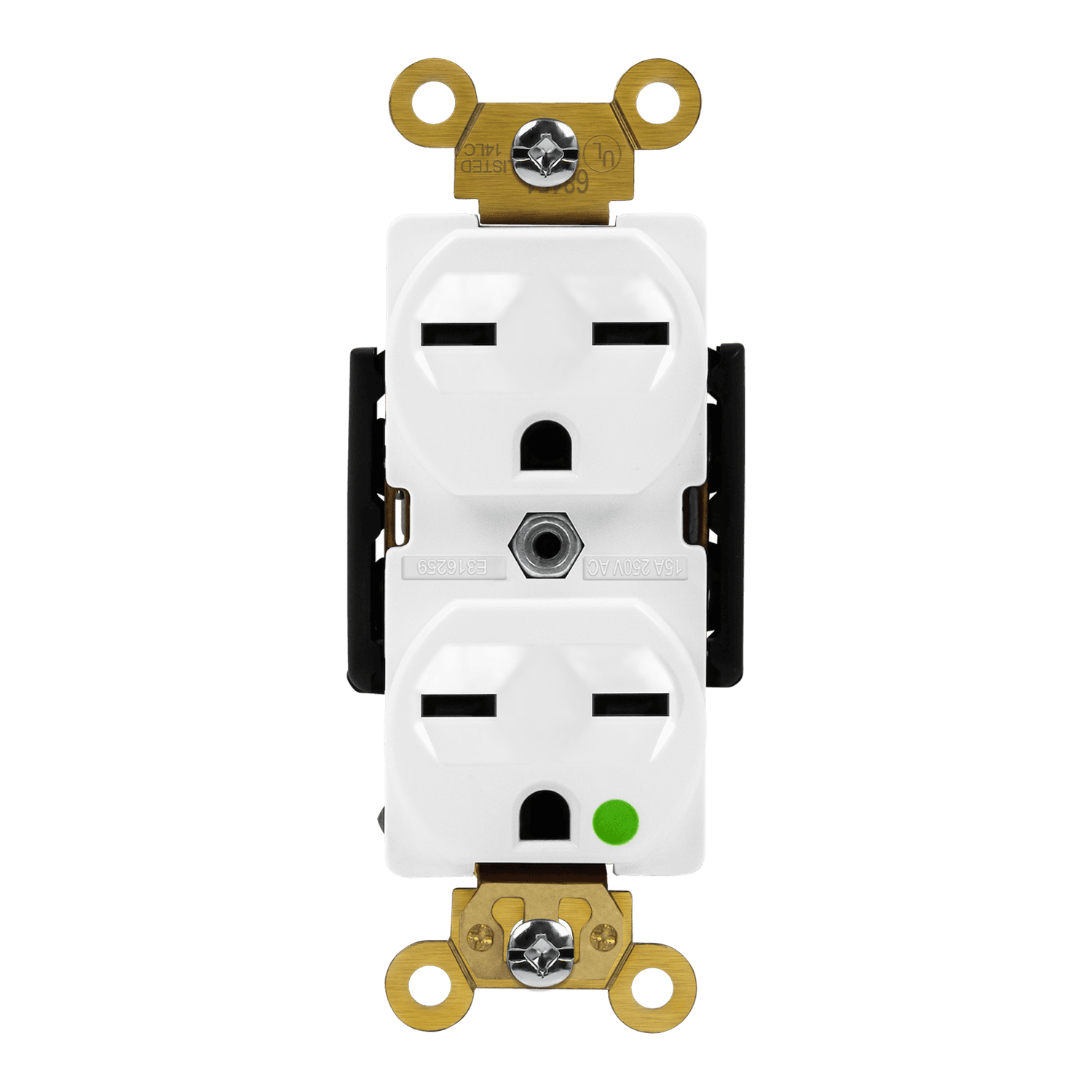

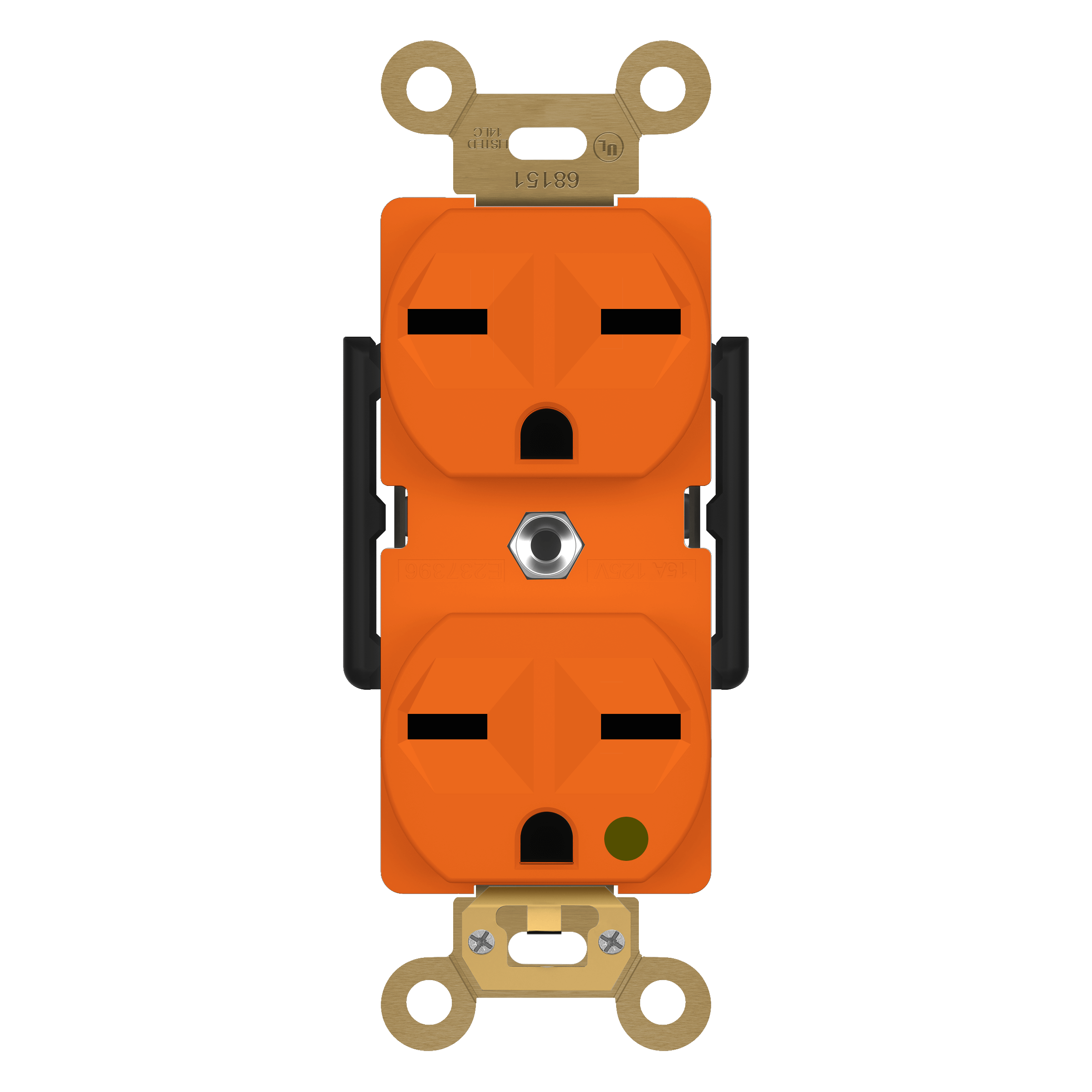

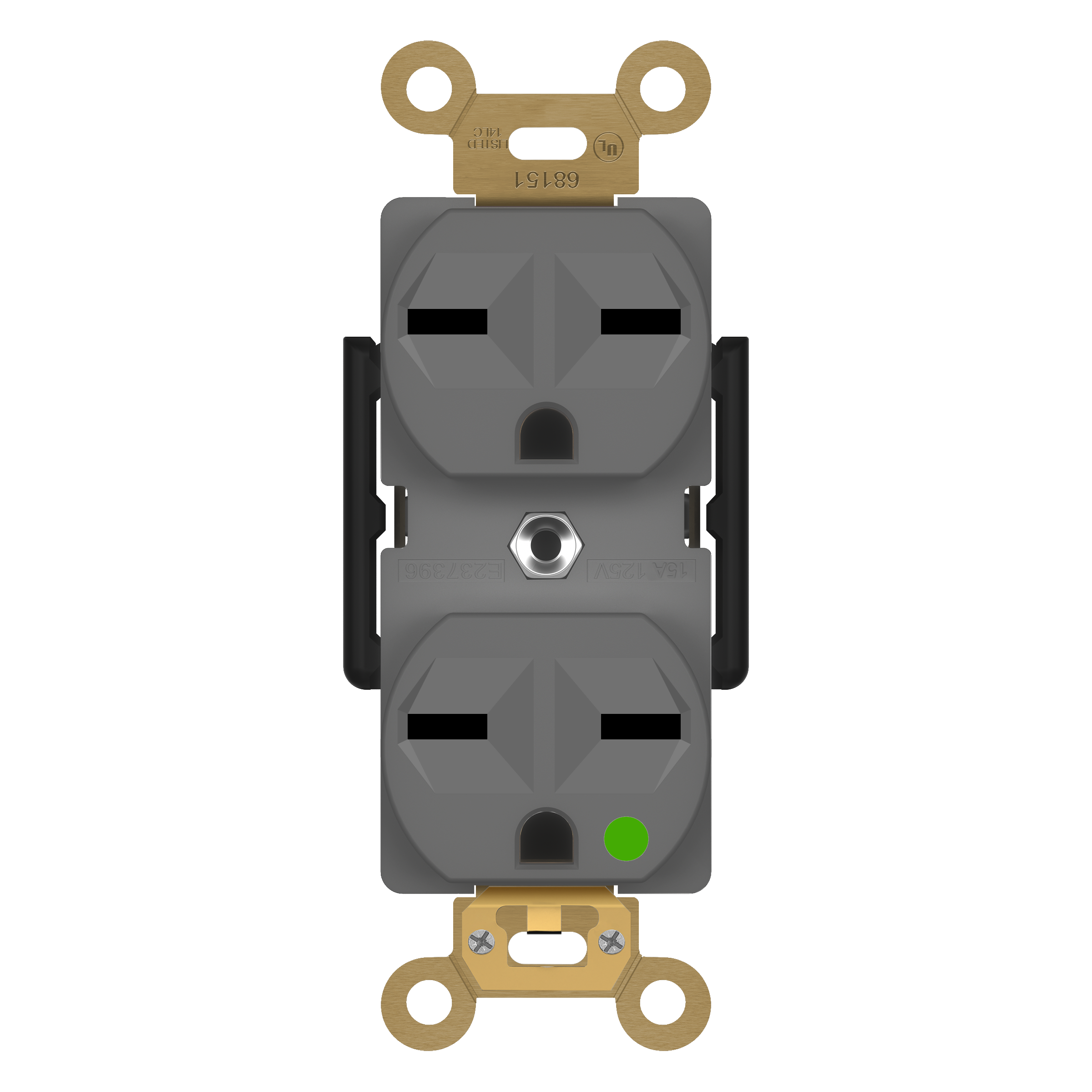

15 Amp Duplex Receptacle | 250V | 6-15R | Hospital Grade | Enerlites 68151

The ENERLITES 68151 Hospital Grade 15A Receptacle (NEMA 6-15R) is engineered to meet the strict performance and safety requirements of healthcare environments, including hospitals, clinics, laboratories, and medical facilities. In addition to complying with standard UL general-use receptacle requirements, this UL Hospital Grade device is subjected to enhanced grounding reliability, assembly integrity, and durability testing, ensuring dependable power delivery for critical medical equipment.

Constructed with a high-impact resistant thermoplastic body and cover, the 68151 receptacle is designed to withstand frequent use and demanding conditions typical in patient care areas. A brass grounding strap with self-grounding clip ensures a consistent and reliable ground path, while two insulated side barriers provide additional protection by covering wire terminals—an exclusive feature required for hospital-grade applications.

This receptacle supports back wiring for secure, professional installations and includes break-off tabs for easy two-circuit conversion, offering flexibility in both new construction and retrofit projects. Clearly marked terminals simplify installation and reduce wiring errors, while compatibility with 10–14 AWG copper conductors ensures code-compliant performance.

Rated for 15 Amps and designed for 250V applications, the ENERLITES 68151 is ideal for powering medical devices, diagnostic equipment, and other essential loads where reliability is non-negotiable. With a UL94 V-2 flammability rating, wide operating temperature range, and UL Listing, this hospital grade receptacle delivers long-term safety, strength, and compliance—backed by a 2-year warranty.

Technical Specifications

• Brand: ENERLITES

• Model Number: 68151

• Device Type: Hospital Grade Receptacle

• Amperage: 15 Amp

• Voltage: 250 VAC

• NEMA Configuration: 6-15R

• Grade: Hospital Grade

• Wiring Method: Back wired

• Wire Range: 10–14 AWG copper only

• Grounding: Brass strap with self-grounding clip

• Construction:

  • Impact-resistant thermoplastic body and cover

  • Dual side terminal barriers for insulation and isolation

• Break-Off Tabs: Yes, for two-circuit conversion

• Flammability Rating: UL94, V-2

• Operating Temperature:

  • -104°F (-40°C) without impact

  • Up to 167°F (75°C) continuous

• Certifications: UL Listed (Hospital Grade)

• Warranty: 2-Year Limited Warranty
