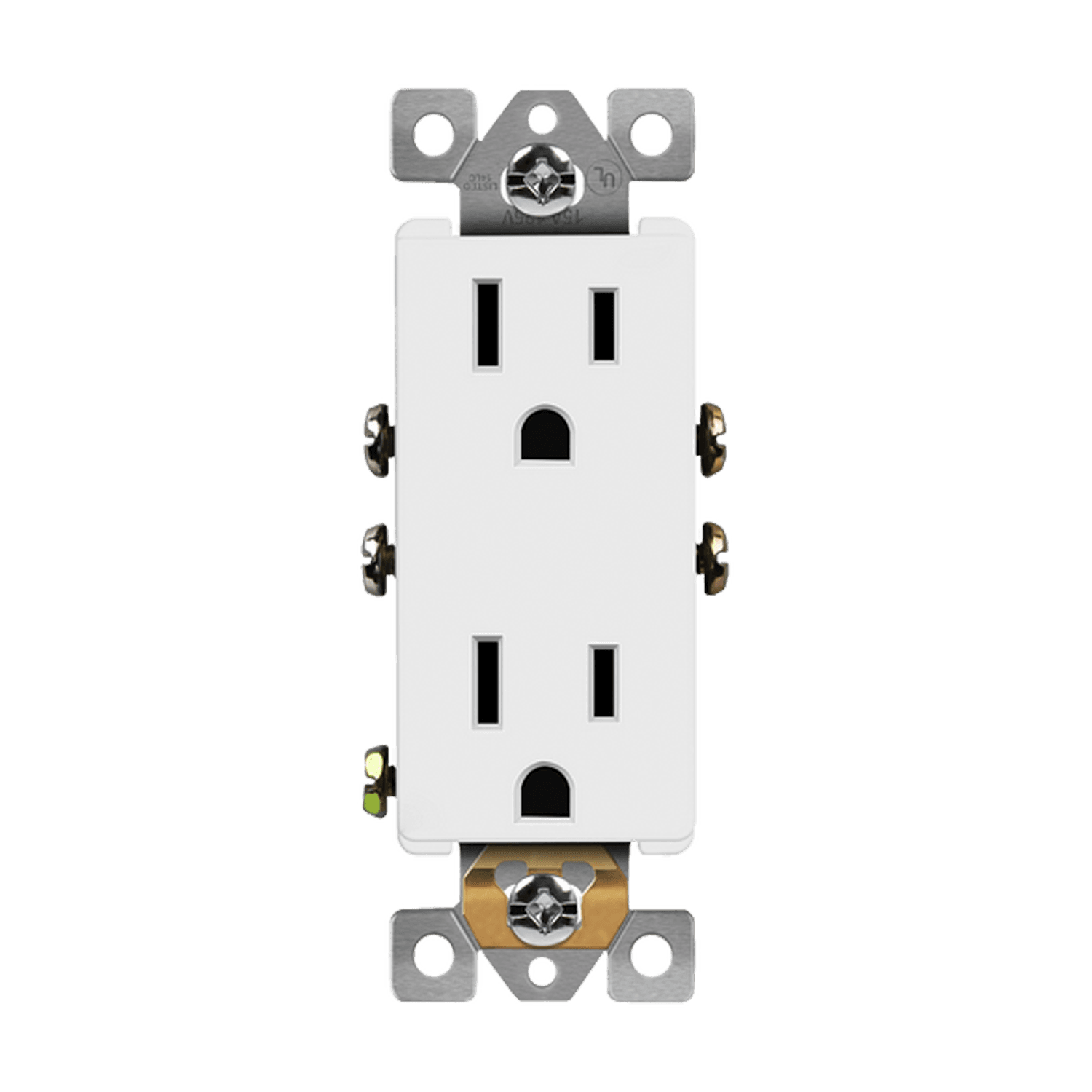

15 Amp Decorator Duplex Receptacle | Tamper Resistant | 125V | 5-15R | Industrial Grade | Enerlites 63150-TR

The ENERLITES 63150-TR Industrial Grade Heavy Duty Tamper-Resistant Receptacle is built for commercial, industrial, and high-traffic residential environments where durability, safety, and reliability are critical. Rated for 15 Amps at 125 Volts (NEMA 5-15R), this decorator-style duplex receptacle is ideal for areas requiring enhanced child safety, secure electrical connections, and long-lasting performance.

Constructed from impact-resistant polycarbonate thermoplastic, the 63150-TR features a smooth, easy-to-clean surface that resists dirt and wear in demanding installations. The tamper-resistant design incorporates built-in shutters to prevent the insertion of foreign objects, enhancing safety for children and reducing risk in public and commercial spaces such as schools, offices, hospitals, and healthcare facilities.

Equipped with a self-grounding clip and a brass grounding strap, this device ensures reliable grounding. Its back-wired configuration allows for a secure, professional installation, and break-off tabs provide easy two-circuit conversion for split-circuit applications. Optional grounding can be achieved using the self-grounding clip or a green terminal screw.

Designed for 10–14 AWG copper conductors only, the 63150-TR is UL listed, compliant with the 2017 NEC Article 406.12, and rated UL94 V-2 for flammability, providing a safe, dependable solution for commercial-grade wiring needs.

Technical Specifications

• Brand: ENERLITES

• Model Number: 63150-TR

• Device Type: Industrial Grade Heavy Duty Decorator Receptacle

• Amperage: 15 Amp

• Voltage: 125 VAC

• NEMA Configuration: 5-15R

• Grade: Industrial / Heavy Duty

• Grounding: Self-Grounding clip and brass strap

• Wiring Method: Back wired

• Wire Range: 10–14 AWG copper only

• Tamper-Resistant: Built-in shutters prevent insertion of foreign objects

• Break-Off Tabs: Yes, for two-circuit conversion

• Construction: Impact-resistant polycarbonate thermoplastic cover and body

• Flammability Rating: UL94, V-2

• Operating Temperature: -104°F to 167°F (-40°C to 75°C)

• Certifications: UL Listed, NEC 2017 Article 406.12 compliant

• Warranty: 2-Year Limited Warranty

• Applications: Schools, offices, hospitals, healthcare, commercial and residential high-traffic areas
