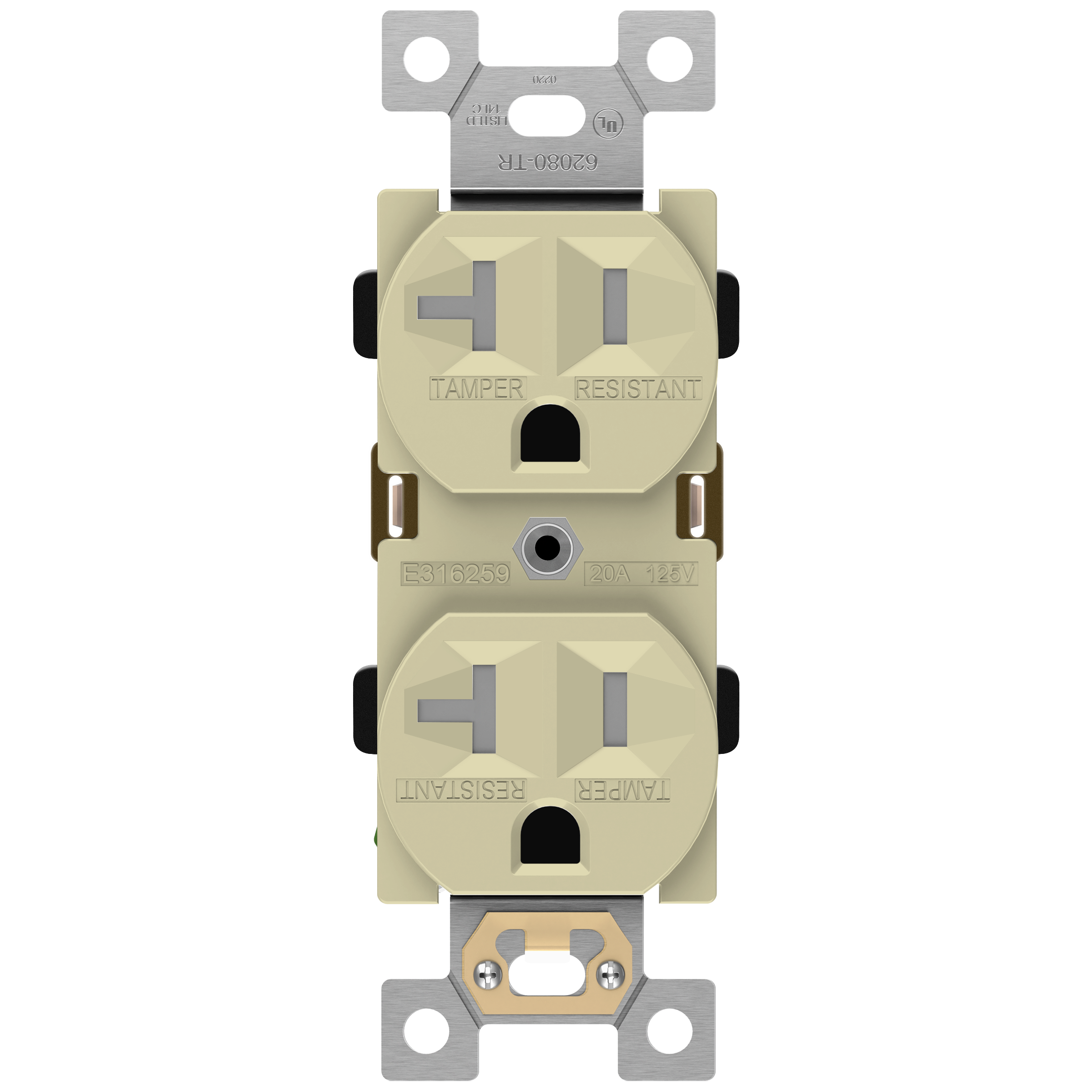

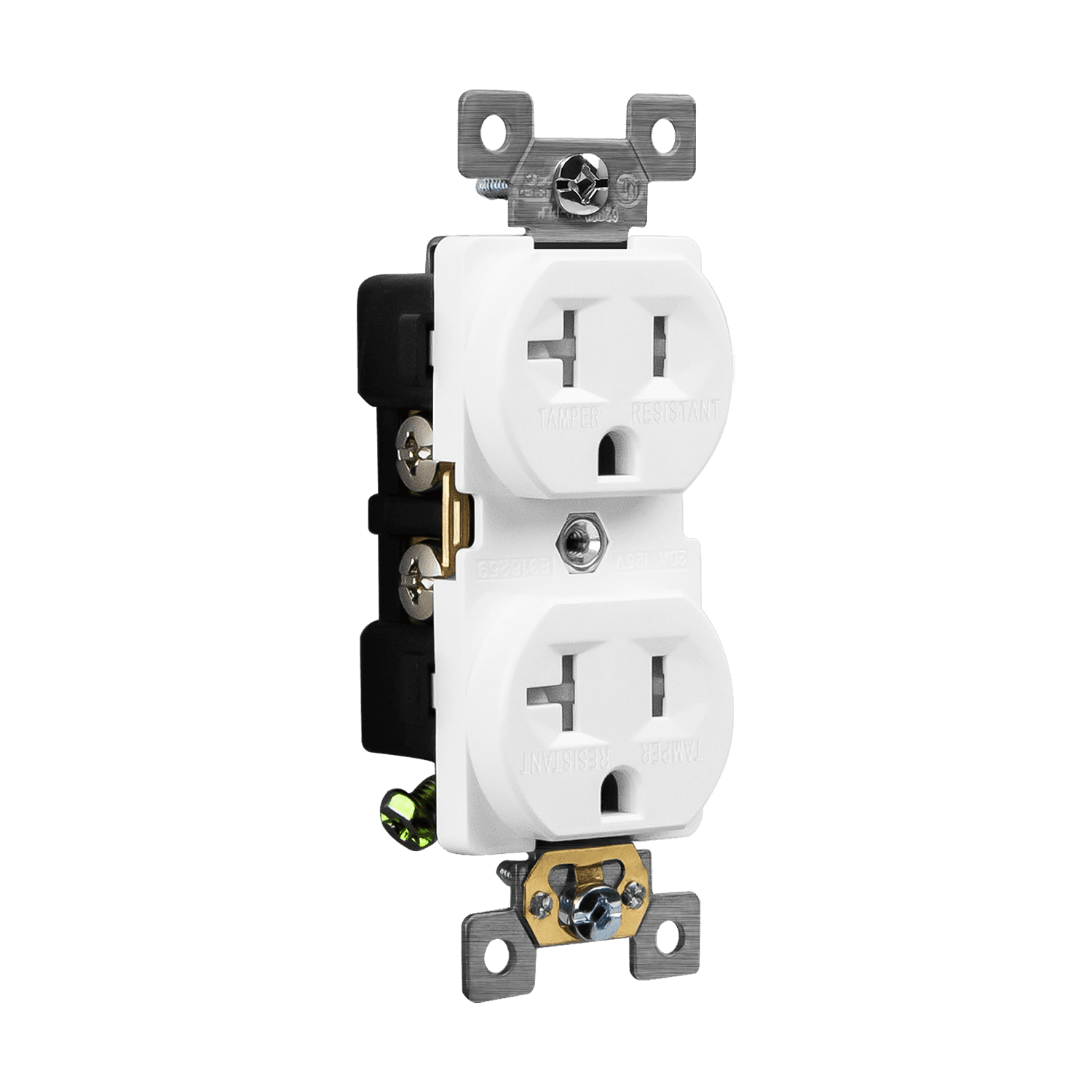

20 Amp Duplex Receptacle | Tamper Resistant | 125V | 5-20R | Industrial Grade | Enerlites 62080-TR

The ENERLITES 62080-TR Industrial Grade Heavy Duty Tamper-Resistant Duplex Receptacle is engineered for commercial, industrial, and high-traffic environments where durability, safety, and performance are essential. Rated for 20 Amps at 125 Volts (NEMA 5-20R), this receptacle is ideal for areas requiring enhanced child safety, secure electrical connections, and robust industrial performance.

Constructed from high-impact resistant polycarbonate thermoplastic, the 62080-TR features a smooth, easy-to-clean surface that resists dirt and wear in demanding installations. The tamper-resistant shutters prevent the insertion of foreign objects, providing superior safety in schools, offices, hospitals, and other commercial or institutional applications.

Equipped with a self-grounding clip and a brass grounding strap, this receptacle ensures reliable grounding. Its back-wired configuration allows for secure, professional installation, while break-off tabs enable easy two-circuit conversion for split-circuit applications. Dual side terminal barriers provide added insulation and isolation for hospital-grade safety applications.

Compatible with 10–14 AWG copper conductors only, the 62080-TR meets stringent performance and safety standards, including a UL94 V-2 flammability rating and UL Listing, and is designed to operate from -104ºF to 167ºF. With a 2-year limited warranty, this industrial-grade receptacle delivers reliable performance in the harshest conditions.

Technical Specifications

• Brand: ENERLITES

• Model Number: 62080-TR

• Device Type: Industrial Grade Heavy Duty Tamper-Resistant Duplex Receptacle

• Amperage: 20 Amp

• Voltage: 125 VAC

• NEMA Configuration: 5-20R

• Grade: Industrial / Heavy Duty

• Grounding: Self-Grounding clip and brass strap

• Wiring Method: Back wired

• Wire Range: 10–14 AWG copper only

• Tamper-Resistant: Built-in shutters prevent insertion of foreign objects

• Break-Off Tabs: Yes, for two-circuit conversion

• Terminal Barriers: Two side barriers for insulation and isolation (hospital grade only)

• Construction: Impact-resistant polycarbonate thermoplastic cover and body

• Flammability Rating: UL94, V-2

• Operating Temperature: -104°F to 167°F (-40°C to 75°C)

• Certifications: UL Listed

• Warranty: 2-Year Limited Warranty

• Applications: Schools, offices, hospitals, commercial and industrial high-traffic areas
