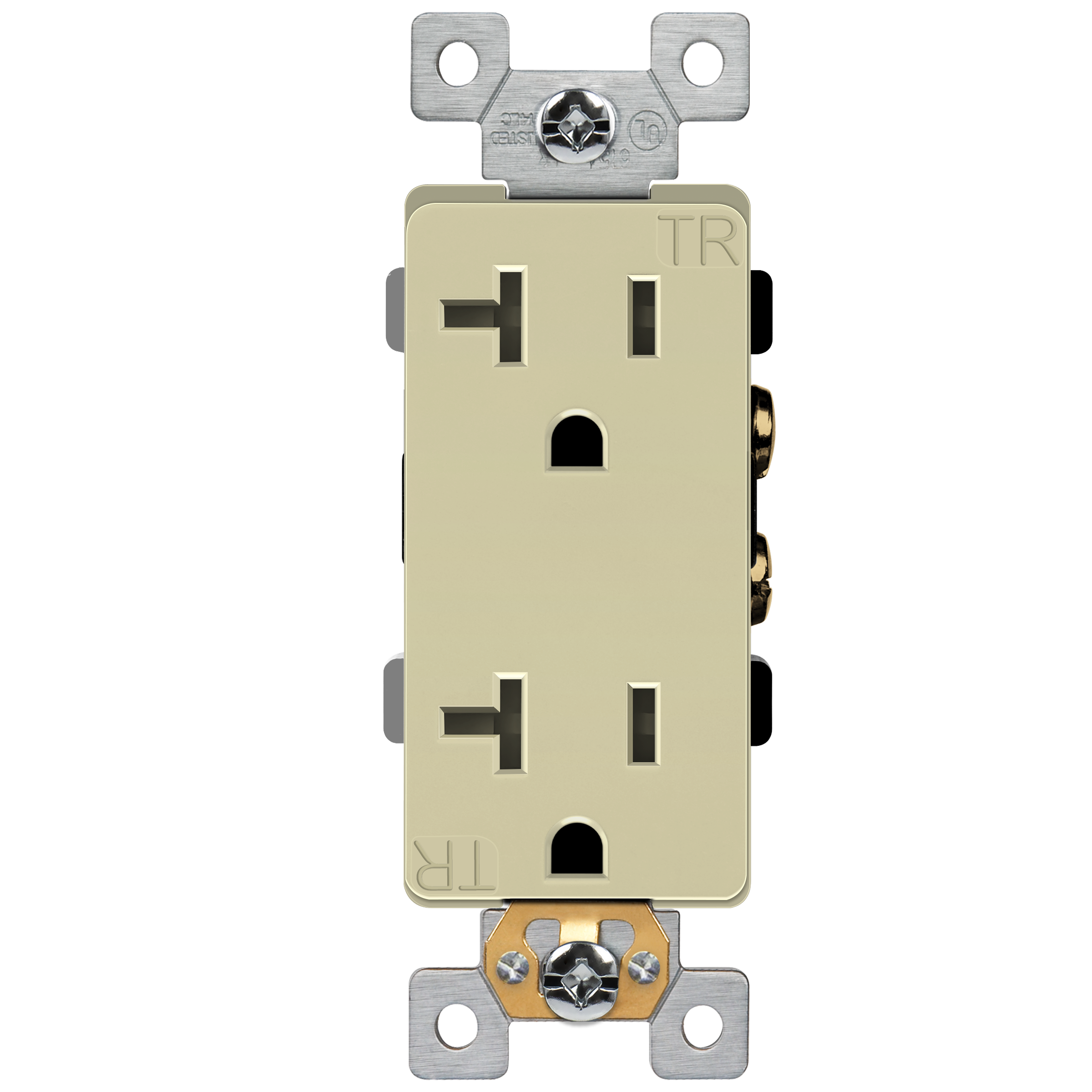

The 62060-TR Commercial Grade 20A Decorator Tamper-Resistant Receptacle (5-20R) is engineered to deliver long-lasting performance, enhanced safety, and simplified installation in demanding commercial environments. Designed with a heavy-duty, impact-resistant thermoplastic housing, this receptacle withstands daily wear in offices, retail stores, hotels, restaurants, schools, and other high-traffic facilities.

The built-in tamper-resistant shutters provide increased safety by preventing foreign objects from being inserted, ensuring compliance with NEC Article 406.12. The receptacle includes back and side wiring terminals that accept both solid and stranded wire, making installation flexible and efficient. Terminal screws come pre-loosened and ready for wiring, reducing installation time.

The device also features break-off tabs for simple two-circuit conversion and break-off plaster ears to ensure proper alignment during installation. With its shallow body design, electricians benefit from additional wiring room inside standard wallboxes.

Equipped for optional grounding via a self-grounding clip or green terminal screw, the 62060-TR meets commercial-grade durability and safety standards. Backed by a 2-year warranty, a UL94 V-2 flammability rating, wide operating temperature range, and UL listing, this receptacle provides reliable, code-compliant power delivery for any commercial infrastructure.

FEATURE SUMMARY

• Commercial grade 20A, 5-20R decorator receptacle

• Heavy-duty, impact-resistant thermoplastic body

• Tamper-resistant shutters for enhanced child safety

• Optional grounding: self-grounding clip or green screw

• Break-off tabs for 2-circuit conversion

• Break-off plaster ears for easy alignment

• Push-in terminals for #14 AWG solid copper wire (15A branch circuits only)

• Back and side-wiring terminals accept solid and stranded wire

• Terminal screws pre-loosened for fast installation

• UL94 V-2 flammability rating

• Operating temperature: -104ºF (no impact) to 167ºF

• UL listed & NEC 406.12 compliant

• 2-year warranty
