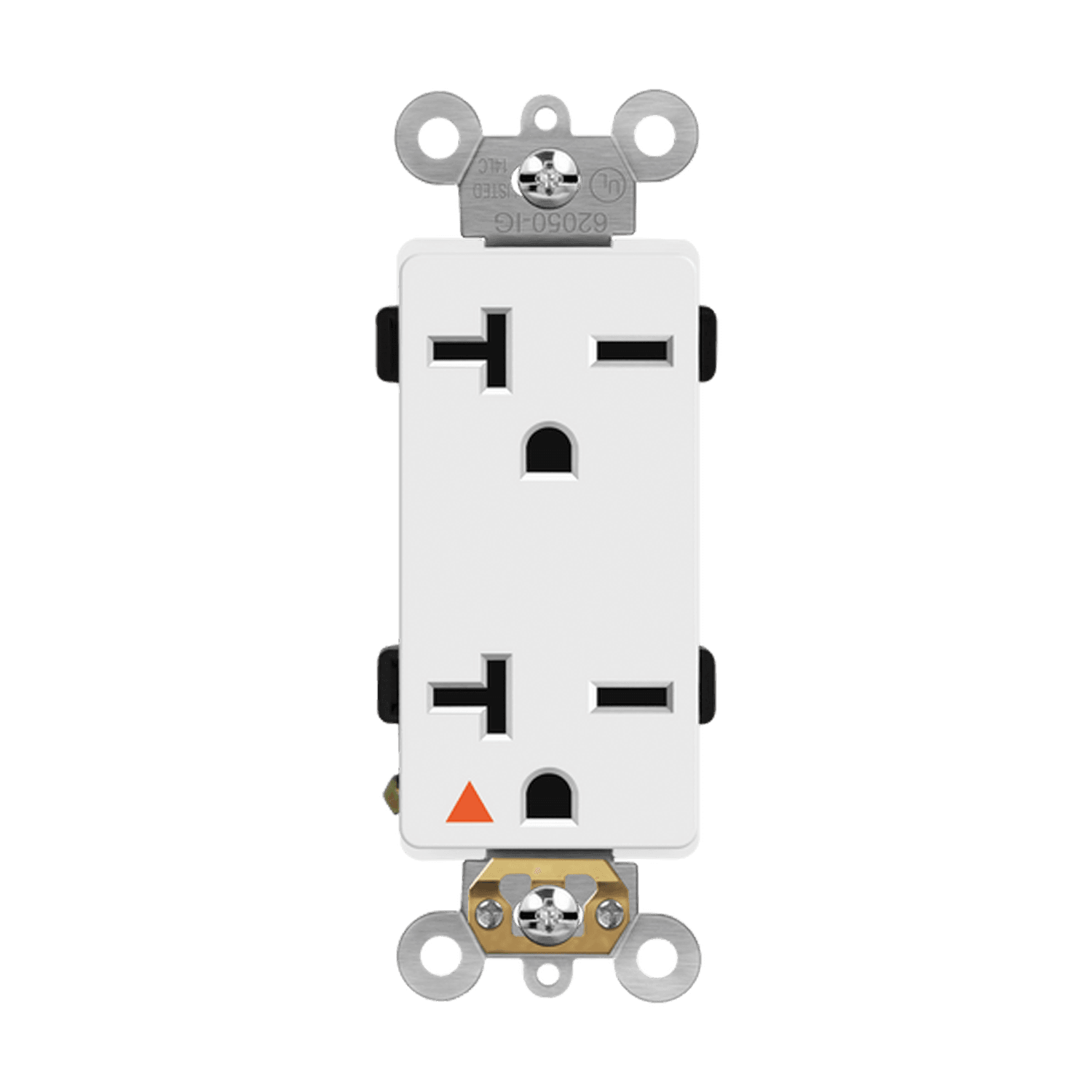

20 Amp Duplex Decorator Receptacle | Isolated Ground | 250V | Industrial Grade | Enerlites 62050-IG

The ENERLITES 62050-IG Isolated Ground Decorator Duplex Receptacle is designed for industrial and commercial applications where clean, reliable power and long-term durability are essential. This 20 Amp, NEMA 6-20R industrial-grade receptacle ensures a dedicated isolated grounding path, reducing electrical interference and providing safe operation for sensitive equipment in hospitals, laboratories, and commercial facilities.

Built to withstand harsh conditions, the device features an impact-resistant thermoplastic body and cover and a self-grounding clip for dependable grounding. Back-wired terminals allow for secure connections using 10 AWG to 14 AWG wires, while break-off tabs enable convenient two-circuit conversion. Optional grounding via a green terminal screw adds installation flexibility.

UL Listed and NEC 2017 Article 406.12 compliant, the ENERLITES 62050-IG delivers both safety and performance in demanding environments. With a 2-year manufacturer warranty, it’s a trusted choice for professionals who require reliability, code compliance, and long-lasting durability.

Technical Specifications

• Brand: ENERLITES

• Model: 62050-IG

• Device Type: Isolated Ground Decorator Duplex Receptacle

• Amperage: 20 Amp

• Voltage: 250V

• NEMA Configuration: 6-20R

• Wiring Method: Back wired

• Wire Size Compatibility: 10 AWG – 14 AWG copper

• Grounding Options:

  • Self-grounding clip

  • Brass strap ground termination

  • Optional green terminal screw

• Break-Off Tabs: Yes (for two-circuit conversion)

• Material: Impact-resistant thermoplastic cover and body

• Flammability Rating: UL94 V-2

• Operating Temperature: -104°F to 167°F

• Certifications: UL Listed

• Code Compliance: NEC 2017 Article 406.12

• Warranty: 2-Year Manufacturer Warranty

• Recommended Applications: Hospitals, laboratories, commercial and industrial facilities
