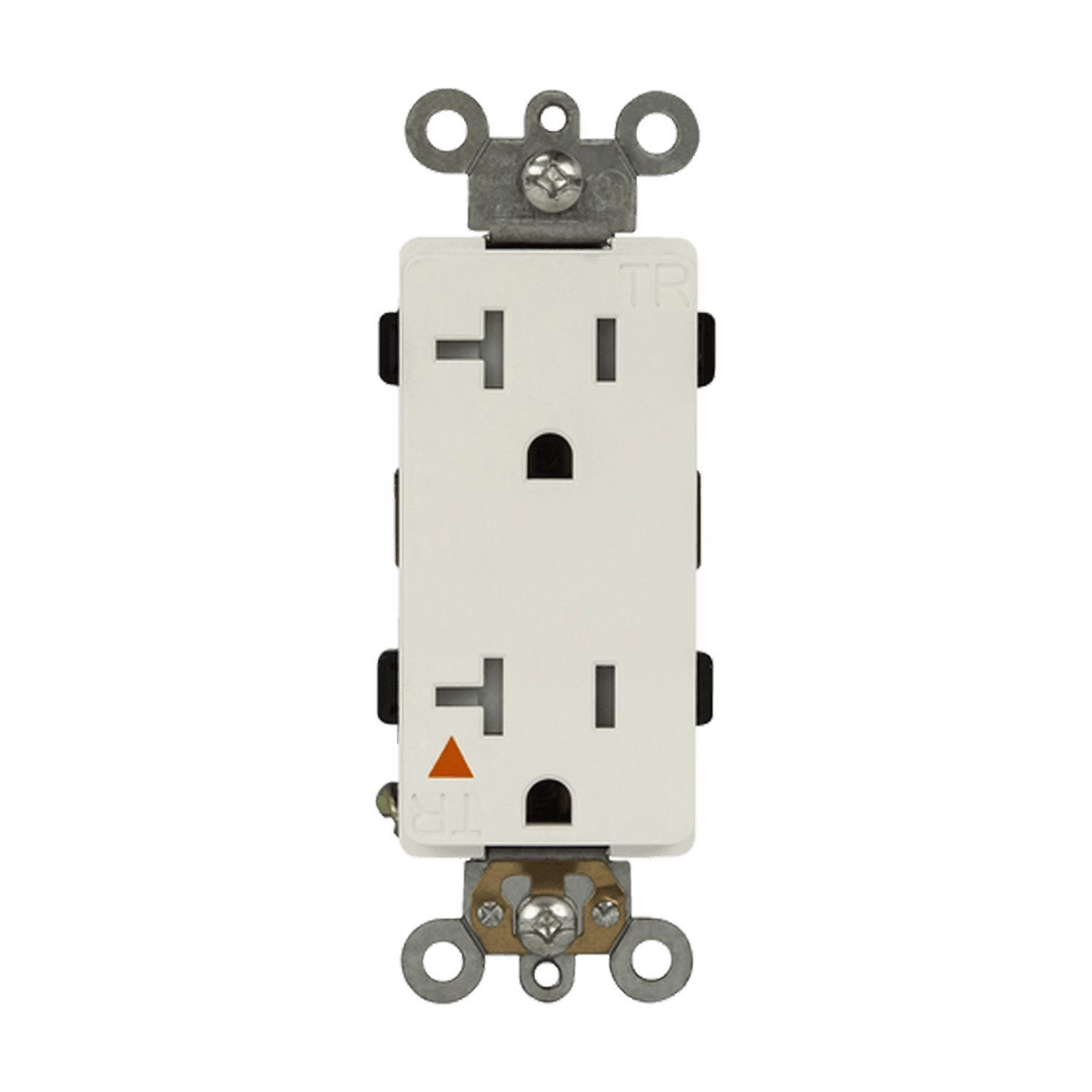

20 Amp Decorator Receptacle | Tamper Resistant | Isolated Ground | 125V | Industrial Grade | Enerlites 62000-IG-TR

The ENERLITES 62000-IG-TR Isolated Ground Tamper-Resistant Decorator Receptacle is engineered for safety, reliability, and durability in demanding environments such as hospitals, laboratories, commercial facilities, and industrial sites. This 20 Amp, NEMA 5-20R receptacle combines industrial-grade performance with enhanced child safety features, thanks to tamper-resistant shutters that prevent insertion of foreign objects.

Built to withstand harsh conditions, the device features an impact-resistant thermoplastic cover and body and a self-grounding clip for dependable grounding. Back-wired terminals allow for secure connections using 10 AWG to 14 AWG wires, while break-off tabs enable easy two-circuit conversion for flexible wiring. Optional grounding via a green terminal screw adds versatility for diverse installation requirements.

UL Listed and compliant with NEC 2017 Article 406.12, the 62000-IG-TR ensures clean electrical grounding, child safety, and long-term durability, making it ideal for critical and high-traffic areas. Backed by a 2-year warranty, this receptacle is a trusted solution for both safety and performance in professional installations.

Technical Specifications

• Brand: ENERLITES

• Model: 62000-IG-TR

• Device Type: Isolated Ground Tamper-Resistant Decorator Receptacle

• Amperage: 20 Amp

• Voltage: 125V

• NEMA Configuration: 5-20R

• Tamper-Resistant: Yes, built-in shutter prevents foreign object insertion

• Wiring Method: Back wired

• Wire Size Compatibility: 10 AWG – 14 AWG copper

• Grounding Options:

  • Self-grounding clip

  • Brass strap ground termination

  • Optional green terminal screw

• Break-Off Tabs: Yes (for two-circuit conversion)

• Material: Impact-resistant thermoplastic cover and body

• Flammability Rating: UL94 V-2

• Operating Temperature: -104°F to 167°F

• Certifications: UL Listed

• Code Compliance: NEC 2017 Article 406.12

• Warranty: 2-Year Manufacturer Warranty

• Recommended Applications: Hospitals, laboratories, commercial and industrial facilities
