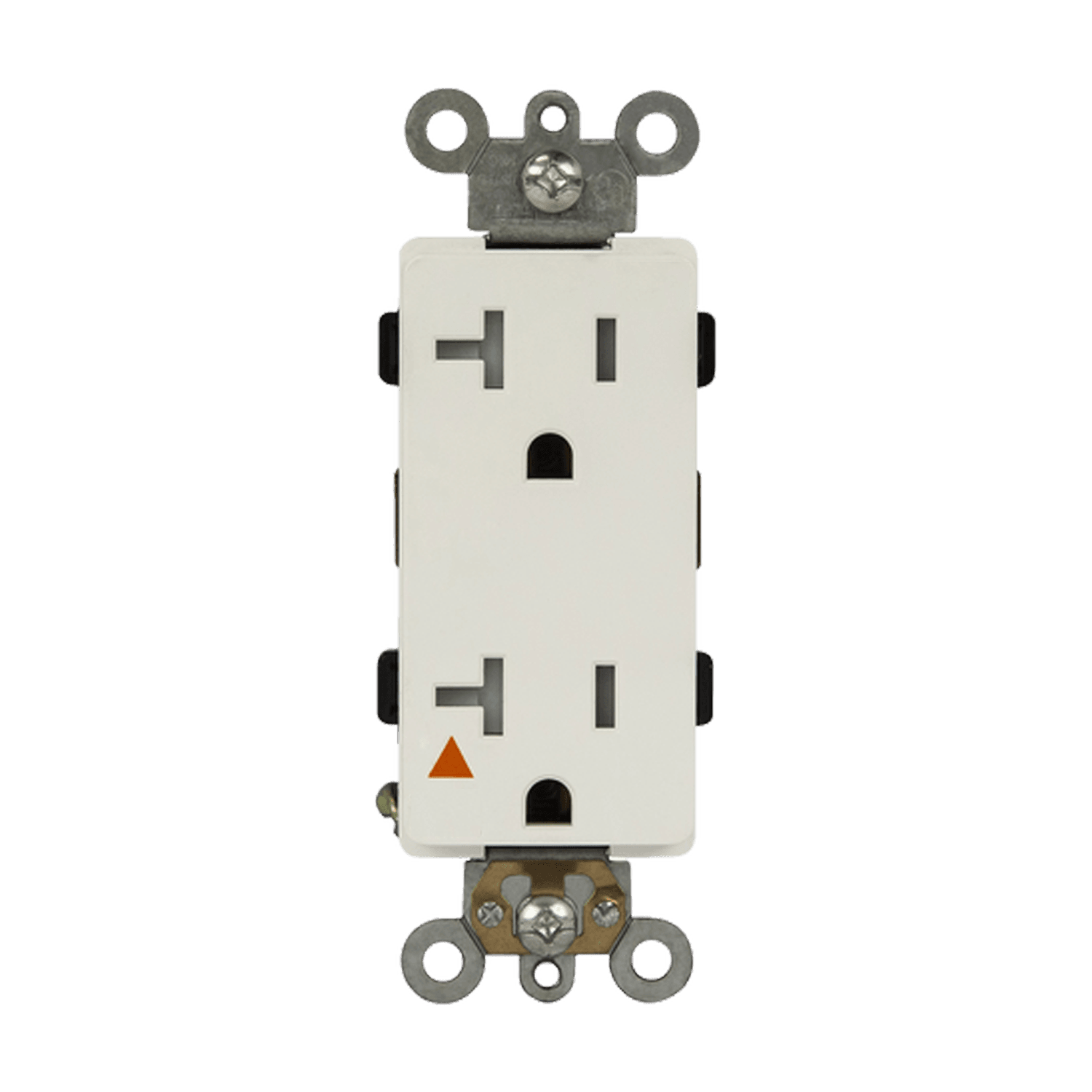

20 Amp Duplex Decorator Receptacle | Isolated Ground | 125V | 5-20R | Industrial Grade | Enerlites 62000-IG

Isolated Ground 20A Decorator Duplex Receptacle – NEMA 5-20R

The ENERLITES 62000-IG Isolated Ground Decorator Duplex Receptacle is a heavy-duty, industrial-grade 20 Amp outlet designed to perform reliably in hospitals, commercial buildings, and industrial environments where electrical noise reduction and grounding integrity are critical.

This NEMA 5-20R isolated ground receptacle is engineered to separate the equipment grounding conductor from the mounting yoke, helping minimize electromagnetic interference (EMI) and electrical noise in sensitive electronic equipment. Built with an impact-resistant thermoplastic body and cover, the device delivers exceptional durability in demanding applications.

The receptacle features back-wiring capability, a self-grounding clip, and brass ground termination strap for fast, secure installation. Break-off tabs allow easy two-circuit conversion, while compatibility with 10–14 AWG copper conductors ensures flexibility across a wide range of installations.

Rated UL94 V2 for flammability, UL listed, and compliant with 2017 NEC Article 406.12, the ENERLITES 62000-IG meets stringent safety and performance standards for professional-grade electrical systems.

Key Features

• 20A isolated ground decorator duplex receptacle

• NEMA 5-20R configuration

• Designed for hospitals, commercial & industrial applications

• Isolated ground design reduces electrical noise and interference

• Impact-resistant thermoplastic body and cover

• Back-wired for faster, more secure installation

• Self-grounding clip with optional green grounding screw

• Brass strap ground termination

• Break-off tabs for easy two-circuit conversion

• Accepts 10–14 AWG copper wire only

• UL94 V2 flammability rating

• UL listed

• NEC 2017 Article 406.12 compliant

• 2-year warranty

Applications

• Hospitals and healthcare facilities

• Commercial buildings and offices

• Industrial electrical systems

• Data rooms and sensitive electronic installations
