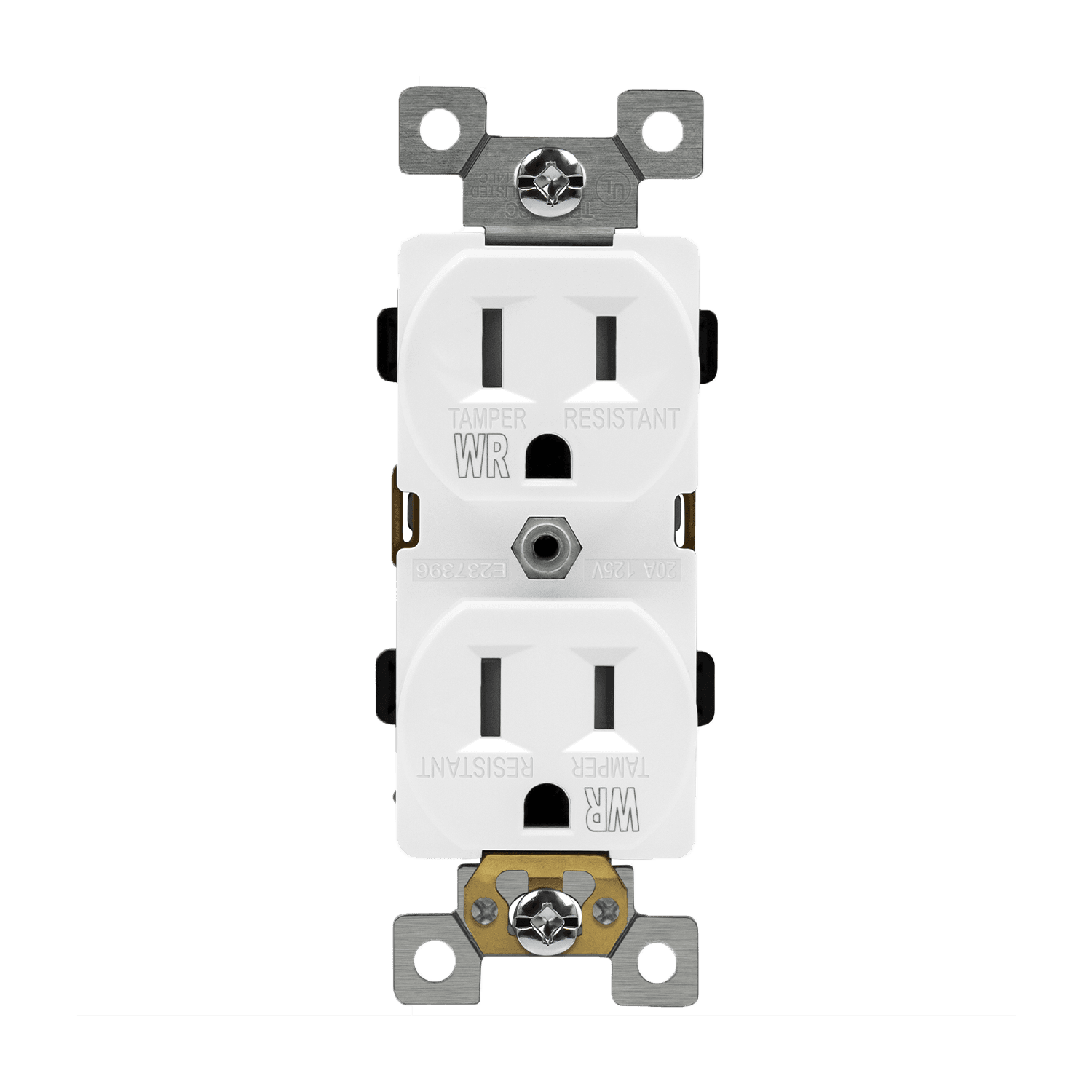

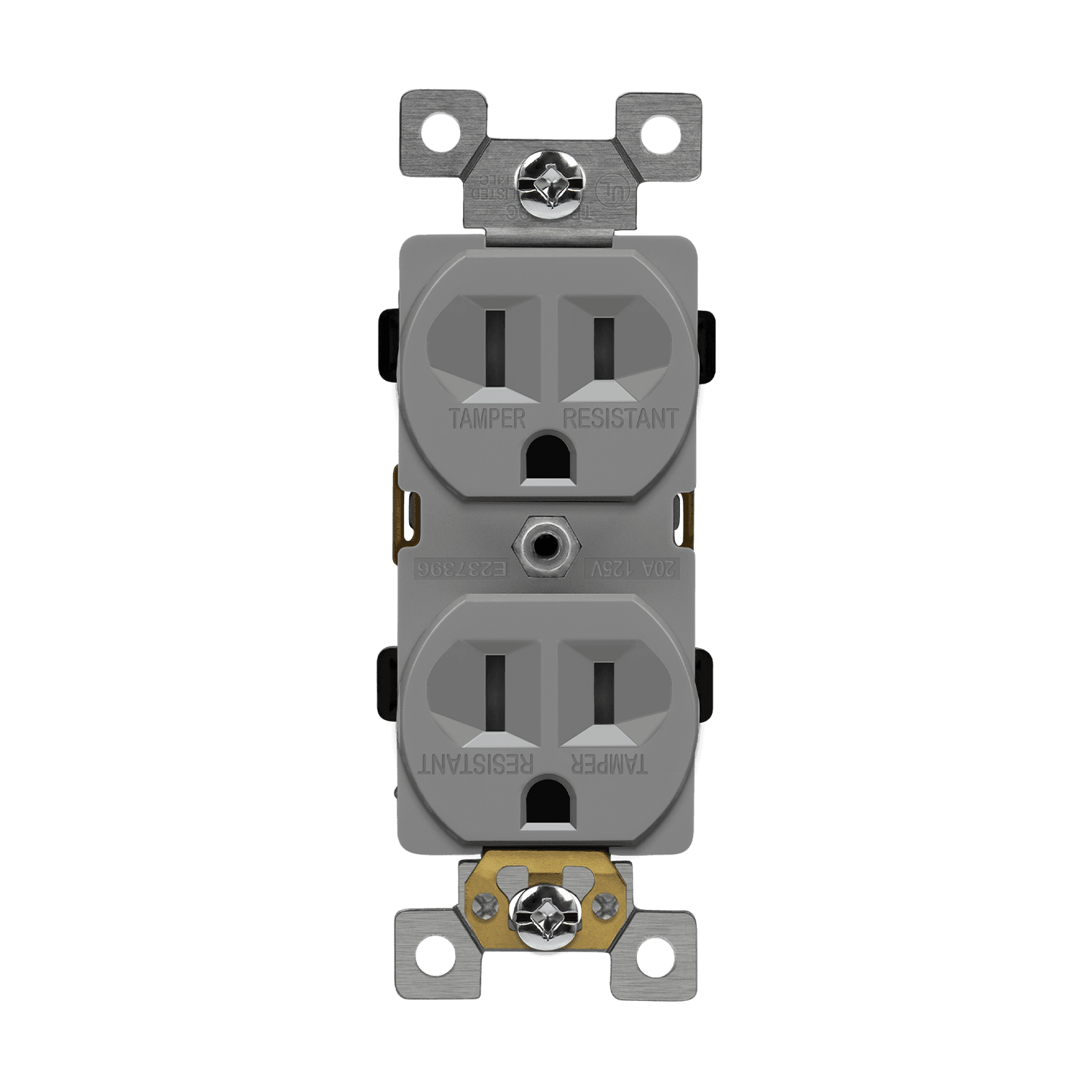

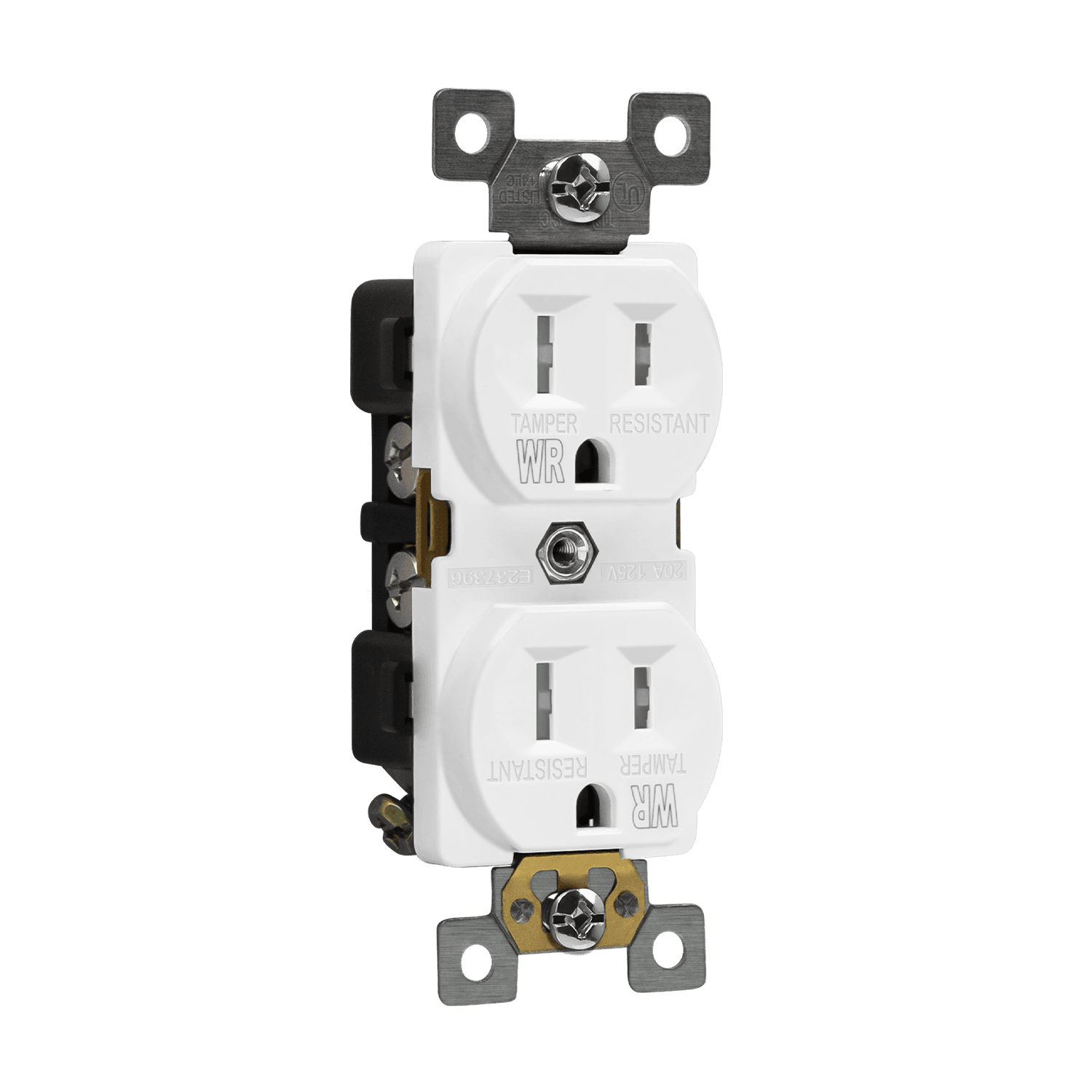

15Amp Duplex Receptacle | Tamper/Weather Resistant | 125V | Enerlites 61580-TR

The Residential Grade 15A Tamper and Weather Resistant Duplex Receptacle, 5-15R delivers exceptional safety, durability, and reliability for both indoor and outdoor applications. Built from impact-resistant thermoplastic, this weatherproof outlet withstands harsh environments, making it ideal for garages, patios, pool houses, restrooms, sheds, and other moisture-prone areas.

Featuring tamper-resistant shutters, it prevents the insertion of foreign objects for enhanced child safety, meeting NEC Article 406.12 requirements. The self-grounding clip or green terminal screw provides flexible grounding options, while break-off tabs allow easy conversion for two-circuit configurations.

Designed for maximum wiring efficiency, the shallow body offers extra room for installation, and push-in terminals accommodate #14 AWG solid copper wire. With combination Slot/Phillips screws and removable yoke tabs, this receptacle simplifies installation and ensures secure alignment in every setup.

Technical Specifications:

• Amperage: 15A

• Voltage: 125V AC

• Configuration: 5-15R

• Material: High-impact resistant thermoplastic

• Grounding: Self-grounding clip or green terminal screw

• Wiring Type: Back and side-wiring

• Wire Range: #14 AWG Cu solid wire

• Mounting: Combination Slot/Phillips screws, captive design

• Temperature Range: -104°F (without impact) to 167°F continuous

• Environmental Rating: UL94 V2 flammability, weather resistant

• Compliance: UL Listed, NEC Article 406.12 (tamper-resistant)

• Warranty: 2 Years

• Available Colors: Gray, White

Key Features:

• Tamper-resistant shutters enhance child safety

• Weather-resistant design for outdoor durability

• Self-grounding for simplified installation

• Dual back and side wiring for versatile connections

• Break-off tabs for easy two-circuit conversion

• Impact-resistant thermoplastic construction

• Large terminal screws for fast, secure wiring

Engineered for residential and light commercial use, the 15A Tamper & Weather Resistant Duplex Receptacle ensures long-lasting performance in demanding conditions—combining safety, convenience, and reliability in one modern design.
