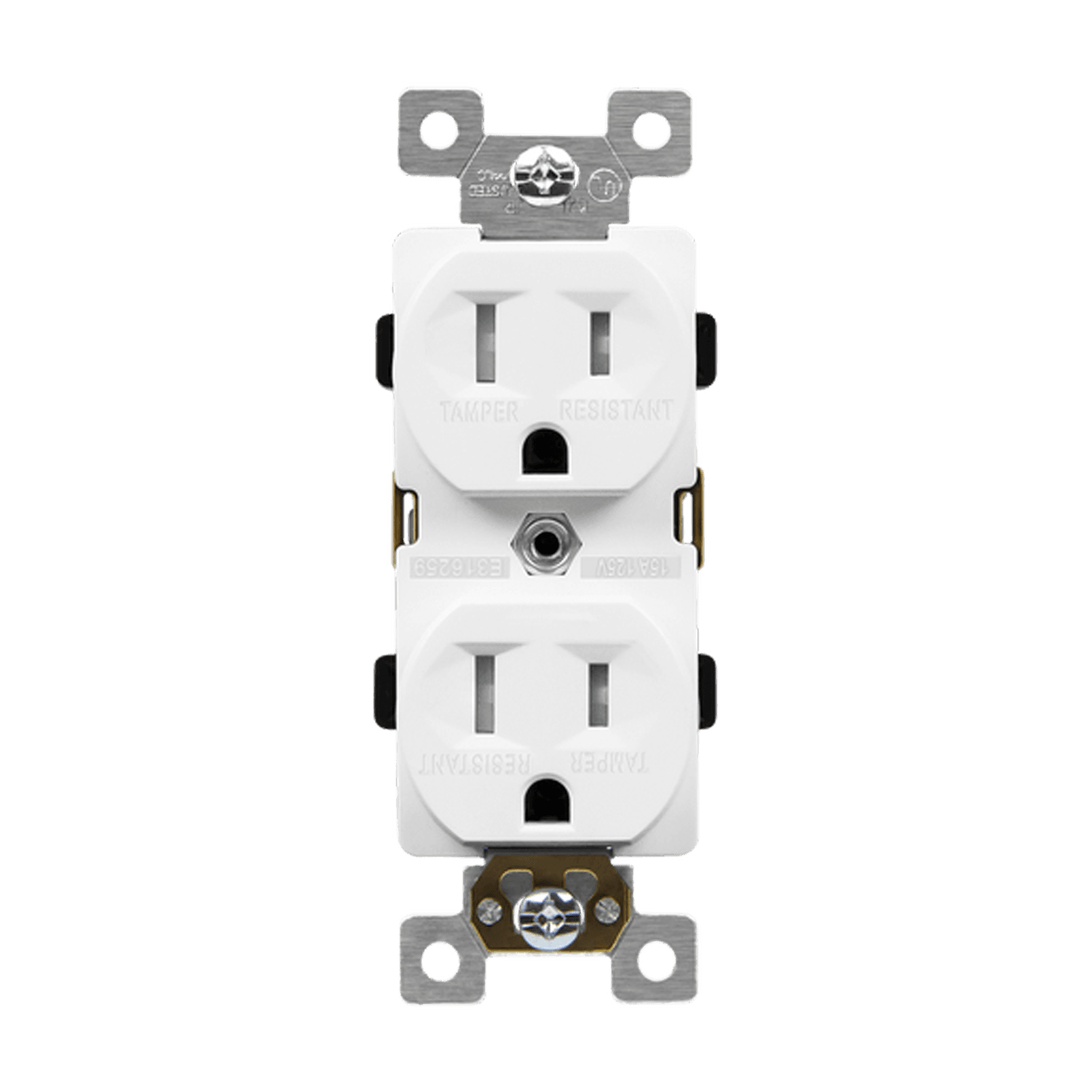

15 Amp Duplex Receptacle | Tamper Resistant | 125V | 5-15R | Industrial Grade | Enerlites 61570-TR

The ENERLITES 61570-TR Industrial Grade Heavy Duty Tamper-Resistant Duplex Receptacle is designed for commercial, industrial, and high-traffic residential environments where durability, safety, and reliability are essential. Rated for 15 Amps at 125 Volts (NEMA 5-15R), this receptacle is ideal for areas requiring enhanced child safety, secure electrical connections, and long-lasting industrial performance.

Constructed from impact-resistant polycarbonate thermoplastic, the 61570-TR features a smooth, easy-to-clean surface that resists dirt and wear in demanding installations. Its tamper-resistant shutters prevent the insertion of foreign objects, providing superior safety in schools, offices, hospitals, and commercial spaces.

Equipped with a self-grounding clip and a brass grounding strap, this device ensures reliable grounding. Its back-wired configuration allows for secure, professional installation, while break-off tabs provide easy two-circuit conversion. Dual side terminal barriers provide additional insulation and isolation, meeting hospital-grade standards.

Compatible with 10–14 AWG copper conductors only, the 61570-TR is UL listed, rated UL94 V-2 for flammability, and designed to operate in temperatures ranging from -104°F to 167°F (-40°C to 75°C). With a 2-year warranty, this industrial-grade receptacle delivers consistent performance even in harsh conditions.

Technical Specifications

• Brand: ENERLITES

• Model Number: 61570-TR

• Device Type: Industrial Grade Heavy Duty Tamper-Resistant Duplex Receptacle

• Amperage: 15 Amp

• Voltage: 125 VAC

• NEMA Configuration: 5-15R

• Grade: Industrial / Heavy Duty

• Grounding: Self-Grounding clip and brass strap

• Wiring Method: Back wired

• Wire Range: 10–14 AWG copper only

• Tamper-Resistant: Built-in shutters prevent insertion of foreign objects

• Break-Off Tabs: Yes, for two-circuit conversion

• Terminal Barriers: Two side barriers for insulation and isolation (hospital grade only)

• Construction: Impact-resistant polycarbonate thermoplastic cover and body

• Flammability Rating: UL94, V-2

• Operating Temperature: -104°F to 167°F (-40°C to 75°C)

• Certifications: UL Listed

• Warranty: 2-Year Limited Warranty

• Applications: Hospitals, schools, offices, commercial and industrial high-traffic areas
