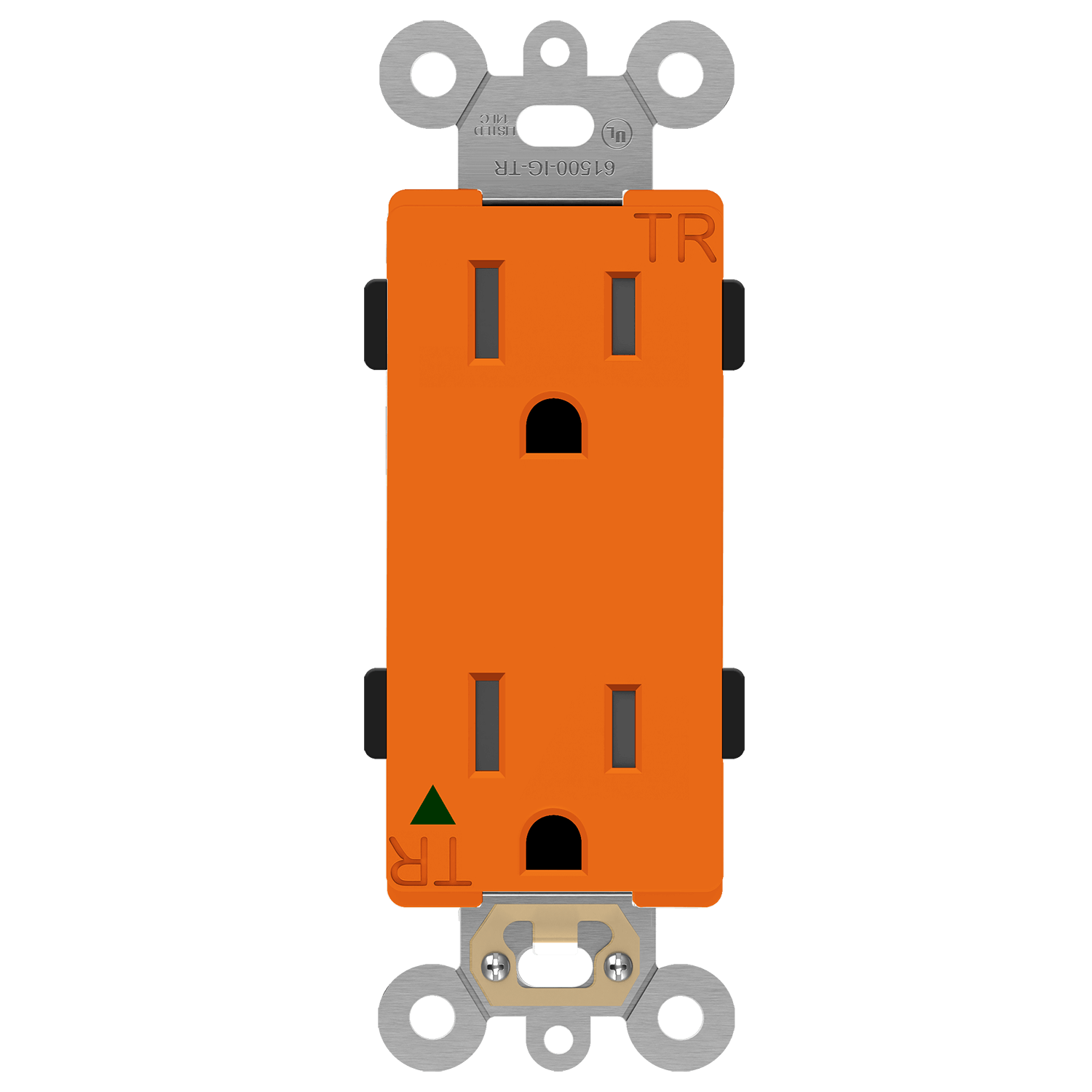

15 Amp Decorator Duplex Receptacle | Isolate Ground | Tamper Resistant | 125V | Industrial Grade | Enerlites 61500-IG-TR

The ENERLITES 61500-IG-TR Isolated Ground Tamper-Resistant Decorator Receptacle is an industrial-grade 15 Amp, NEMA 5-15R outlet engineered for environments that demand superior electrical performance, safety, and noise reduction. Designed specifically for hospitals, laboratories, data centers, and commercial/industrial facilities, this receptacle features an isolated ground (IG) configuration that helps reduce electrical interference in sensitive electronic equipment.

Manufactured from high-impact resistant thermoplastic, this heavy-duty receptacle is built to withstand harsh conditions while maintaining long-term reliability. Tamper-resistant internal shutters prevent the insertion of foreign objects, enhancing safety and ensuring compliance with 2017 NEC Article 406.12.

The back-wired design with brass ground termination strap simplifies installation, while break-off tabs allow easy two-circuit conversion. Optional grounding is supported through a self-grounding clip or green terminal screw, making this device versatile for a wide range of installations. UL listed and backed by a 2-year warranty, the ENERLITES 61500-IG-TR delivers dependable performance in critical applications where safety and signal integrity matter most.

Technical Specifications

• Brand: ENERLITES

• Model: 61500-IG-TR

• Device Type: Isolated Ground Tamper-Resistant Decorator Receptacle

• Amperage: 15 Amp

• Voltage: 125 VAC

• NEMA Configuration: 5-15R

• Grade: Industrial / Heavy Duty

• Ground Type: Isolated Ground (IG)

• Safety Feature: Tamper-Resistant shutters

• Wiring Method: Back wired

• Wire Range: 10 AWG to 14 AWG copper

• Construction: Impact-resistant thermoplastic cover and body

• Mounting: Standard decorator wall opening

• Special Features:

  • Self-grounding clip

  • Brass ground termination strap

  • Break-off tabs for two-circuit conversion

  • Optional grounding via green terminal screw

• Flammability Rating: UL94 V-2

• Operating Temperature:

  • -104°F (without impact) to 167°F max continuous

• Compliance: 2017 NEC Article 406.12

• Certifications: UL Listed

• Warranty: 2-Year Limited Warranty
