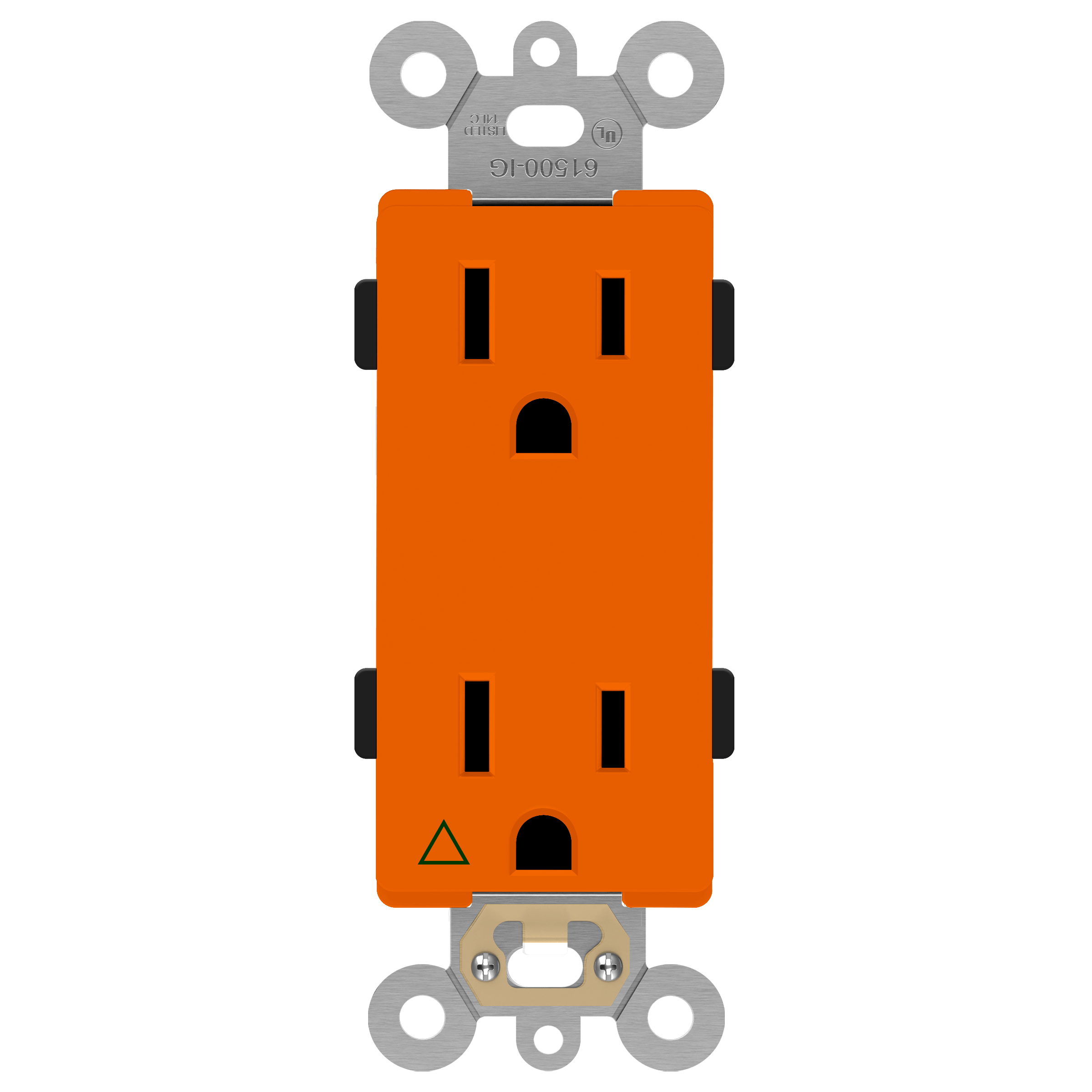

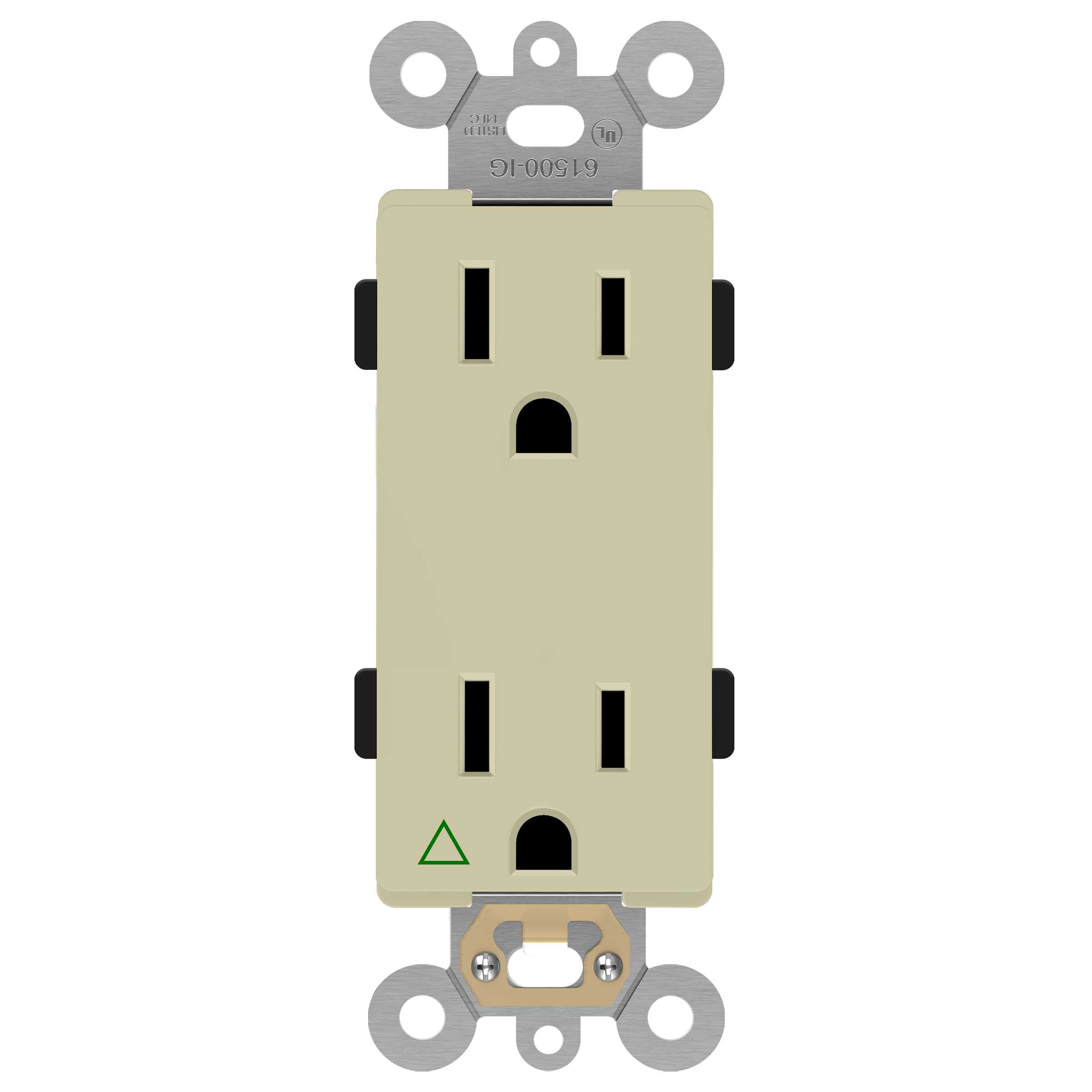

15 Amp Duplex Decorator Receptacle | Isolated Ground | 125V | 5-15R | Industrial Grade | Enerlites 61500-IG

The ENERLITES 61500-IG Isolated Ground Decorator Duplex Receptacle is a heavy-duty, industrial-grade 15 Amp outlet engineered for demanding hospital, commercial, and industrial environments where electrical noise reduction and grounding reliability are critical. Featuring an isolated ground (IG) design, this receptacle helps protect sensitive electronic equipment by separating the equipment ground from the building ground path.

Constructed with impact-resistant polycarbonate thermoplastic, the smooth decorator-style face resists wear, dirt, and discoloration for long-lasting performance. The device is back wired and includes break-off tabs for easy two-circuit conversion, providing installation flexibility in both new construction and retrofit applications.

Designed for professional use, the 61500-IG supports 10–14 AWG copper conductors, includes a self-grounding clip with optional grounding via a green terminal screw, and meets UL Listed safety standards. Fully compliant with 2017 NEC Article 406.12, this isolated ground receptacle delivers reliable power distribution in high-traffic and sensitive electrical environments.

Technical Specifications

• Brand: ENERLITES

• Model Number: 61500-IG

• Type: Isolated Ground Decorator Duplex Receptacle

• Amperage/Voltage: 15A, 125VAC

• Configuration: NEMA 5-15R, 2-Pole, 3-Wire

• Grounding: Isolated ground, self-grounding clip, optional green grounding screw

• Wiring Method: Back wired

• Construction: Impact-resistant polycarbonate thermoplastic

• Break-Off Tabs: Yes, for two-circuit conversion

• Wire Range: 10AWG – 14AWG

• Flammability Rating: UL94, V2

• Operating Temperature: -104°F to 167°F

• Compliance: 2017 NEC Article 406.12

• Certifications: UL Listed

• Warranty: 2-Year
