8-3/4” Brass Large Lensed Backless Box Brick & Step Light | 12V
| SKU(s) | CL-394B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

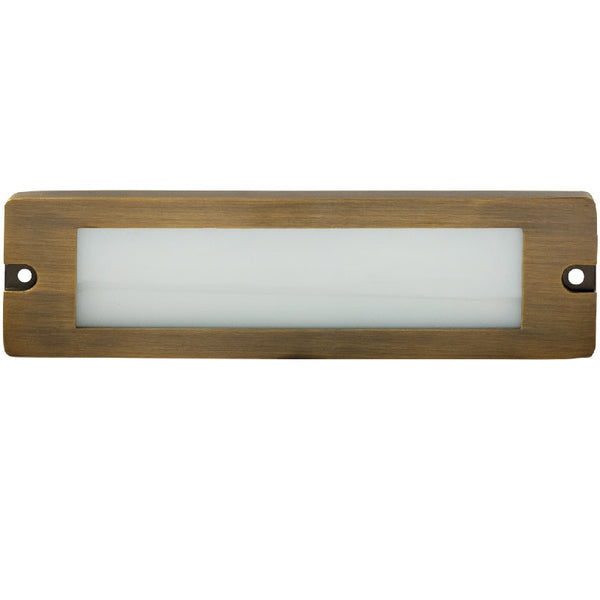

The 8¾” Large Lensed Backless Box Brick Light is a premium architectural-grade lighting fixture designed to provide safety, functionality, and elegant illumination for outdoor steps, walls, and brick applications. Constructed from heavy-duty, corrosion-resistant cast brass, this fixture is built to withstand the elements while maintaining a refined appearance. Available in antique bronze, gun metal, and silver plated finishes, it complements a wide variety of exterior designs.
Featuring a frosted lens mounted on a stainless steel backplate, the light delivers soft, even illumination that reduces glare, making it ideal for steps, pathways, brick walls, and masonry structures. It is powered by a removable 5W integrated LED module (450 lumens, 3000K warm white, equivalent to a 35W halogen lamp) and has a 30,000-hour rated lifespan, ensuring both performance and energy efficiency.
The fixture is designed for surface mounting with no backbox required, making installation simple and versatile. It comes prewired with a 25-foot 18-2 SPT2-W direct burial cord, ready for quick connection using silicone-filled wire nuts or optional connectors. The integrated LED module is dimmable when paired with a 12V magnetic transformer (not compatible with electronic transformers).
Ideal for brick walls, outdoor steps, retaining walls, and other masonry features, this step light combines modern LED efficiency with traditional brass durability. Backed by a 10-year housing warranty, it provides long-lasting reliability for residential and commercial lighting projects.
Key Features:
8.75” large lensed backless box brick/step light – no backbox required
Solid cast brass housing with corrosion resistance
Finishes: Antique Bronze, Gun Metal, Silver Plated
Frosted lens with stainless steel backplate for glare-free light
5W removable integrated LED module (450 lumens, 3000K, 35W halogen equivalent)
30,000-hour rated lifespan
Prewired with 25-foot direct burial cord
Surface mount installation for masonry, brick, or concrete
Dimmable with 12V magnetic transformer
10-year housing warranty
$108.00 /each
| SKU(s) | CL-345B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 5-1/2" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$158.45 /each
| SKU(s) | CL-219-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 210LM |
| Color Temp | 3000K |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 5-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$118.85 /each
| SKU(s) | CL-713B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 7-1/2" |
| Length | 7-1/2" |
| Height | 22" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
