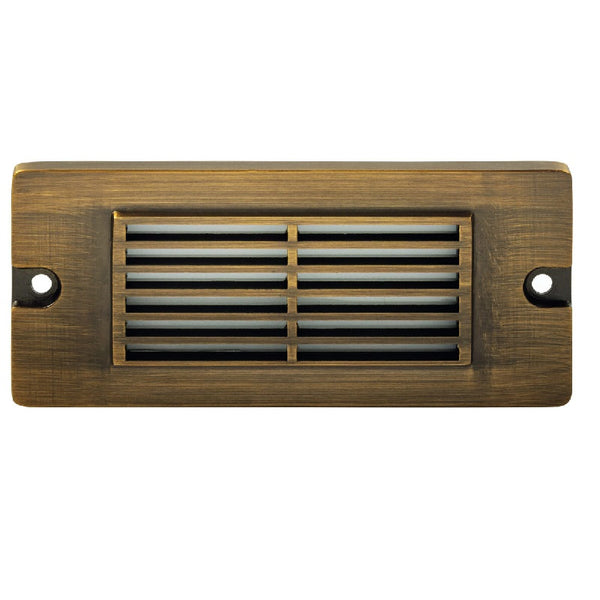

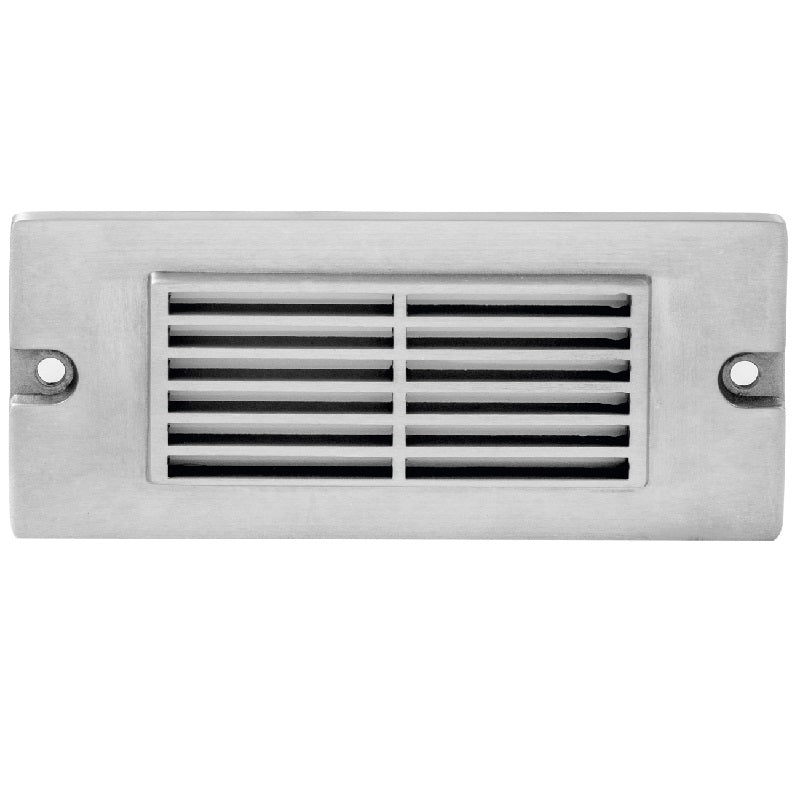

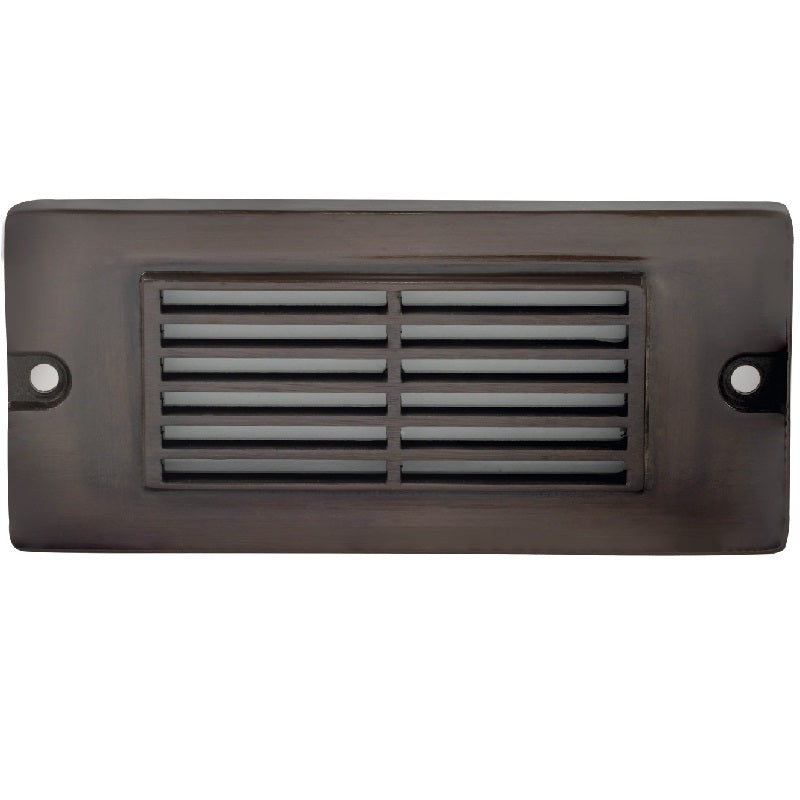

5.5” Brass Small Louvered Backless Box Step Light | 12V
| SKU(s) | CL-345B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 5-1/2" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The 5½” Small Lensed Backless Box Step Light combines architectural-grade construction with a sleek, functional design for steps, walls, and masonry applications. Crafted from heavy-duty, corrosion-resistant cast brass, this fixture is built to withstand outdoor conditions while maintaining its timeless appearance. Available in antique bronze, gun metal, and silver plated finishes, it provides versatile options to complement any project.
The fixture features a frosted lens mounted on a stainless steel backplate, delivering a soft, glare-free illumination perfect for safety and accent lighting. Powered by a removable 2.5W integrated LED module (250 lumens, 3000K warm white, 20W halogen equivalent), it ensures energy efficiency, a rated lifespan of 30,000 hours, and smooth dimming when paired with a 12V magnetic transformer (electronic transformers not supported).
Designed for surface mounting, this step light does not require a backbox, simplifying installation on concrete, brick, or masonry surfaces. Prewired with a 25-foot 18-2 SPT2-W direct burial cord, the fixture is ready for easy connection using silicone-filled wire nuts or optional connectors.
Perfect for steps, pathways, retaining walls, and architectural accents, this step light enhances outdoor safety and ambiance while delivering long-lasting performance. Backed by a 10-year housing warranty, it offers both durability and peace of mind.
Key Features:
5.5” small lensed backless box step light – no backbox required
Solid cast brass housing with corrosion resistance
Finishes: Antique Bronze, Gun Metal, Silver Plated
Frosted lens with stainless steel backplate for soft lighting
2.5W integrated removable LED module (250 lumens, 3000K, 20W halogen equivalent)
30,000-hour rated lifespan
Prewired with 25-foot burial-rated cord
Surface mount design – easy to install on concrete, brick, or masonry
Dimmable with 12V magnetic transformer
10-year housing warranty
$118.85 /each

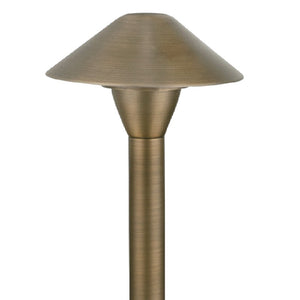

| SKU(s) | CL-652B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 5-1/4" |
| Length | 5-1/4" |
| Height | 23" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$108.00 /each

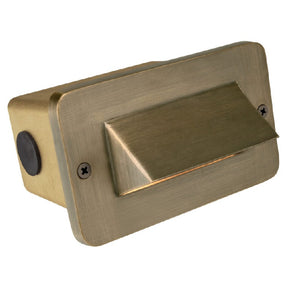

| SKU(s) | CL-364B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/8" |
| Height | 3-1/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$158.45 /each

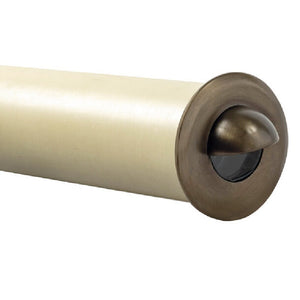

| SKU(s) | CL-221-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 210LM |
| Color Temp | 3000K |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 5-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$75.65 /each

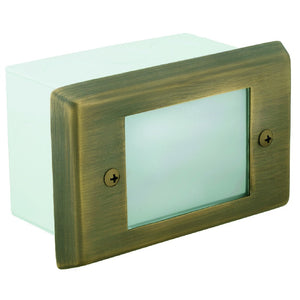

| SKU(s) | CL-371B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Height | 2-5/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
