| SKU(s) | ULR-CH-SURF-DEEP |
| Width | 16mm / 11.4mm |
| Length | 4Ft |
| Height | 12.01mm |
| Certs |
|
 View Spec Sheet
|

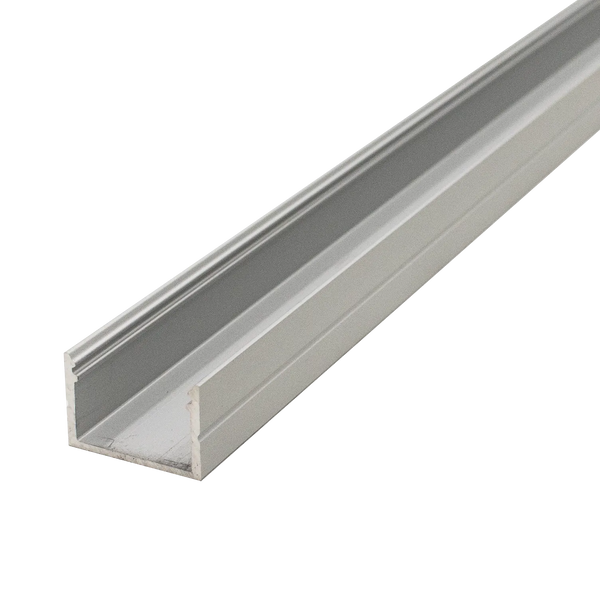

4Ft Surface Mount Aluminum LED Channel – 12x12mm Profile | Ribbon Lighting Series
Upgrade your LED strip light installations with the 4Ft Surface Mount Aluminum Channel (12x12mm) from the premium Ribbon Lighting Series. This square-profile aluminum housing is designed to provide a clean, professional finish while protecting your LED strips and improving light output quality.
Measuring 12mm wide by 12mm high, this channel is ideal for surface-mounted lighting applications where symmetry, strength, and effective heat management are essential. Crafted from high-grade aluminum, it offers superior thermal conductivity, helping extend the life of your LEDs by efficiently dissipating heat.
Perfect for use in kitchens, retail environments, workstations, shelving, or accent walls, the 12x12mm surface mount channel is compatible with most standard-width LED strip lights. Combine it with optional diffusers, end caps, and mounting clips (sold separately) for a fully customized lighting solution.
Length: 4 feet (48 inches)
Dimensions: 12mm width x 12mm height
Material: Premium anodized aluminum
Mounting Style: Surface mount – installs easily on flat surfaces
Finish: Sleek, modern aluminum finish for professional-grade installs
LED Compatibility: Supports most 8mm–10mm LED strip lights
Provides a refined, finished appearance for exposed LED tape lights
Improves light diffusion when paired with compatible diffusers
Protects LEDs from dust, physical contact, and moisture
Promotes effective heat dissipation for longer LED performance
Suitable for both residential and commercial lighting projects
$86.50 /each
| SKU(s) | ULR-IN-16F-HO-27K-BK |
| Light c... | 2700k Soft White | 3000k Warm White | 4100k Cool White | 5000k Super White | 3500k Neutral White |
| Wattage | 4.4W per ft |
| Voltage | 24V DC |
| Lumens | 75~79LM/W per ft |
| Color Temp | 27K, 30K, 35K, 40K, 50K |
| Certs |
|
|
View Spec Sheet
|
$197.50 /each
| SKU(s) | G-48520 |
| UPC | G-48520 |
| Color | White |
| Wattage | 4.6 FT / 15W M |
| Voltage | 24V DC |
| Lumens | 425 FT / 1394 M |
| Color Temp | Selectable CCT |
| CRI | 90> |
| Width | 12 MM |
| Length | 16.4 FT / 5 M |
| Height | 1.83 mm |
| LED Life | 50.000 Hours |
| Certs |
|
|
View Spec Sheet
|
16.4ft Led Cob Rope Light Ip20 | Selectable CCT | Tape Light Series | 4.6W
