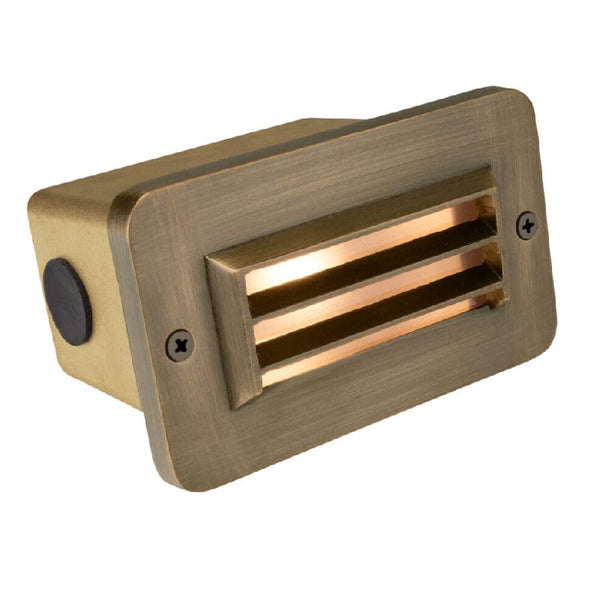

3 Louver Brass Step Light | Antique Bronze & Gun Metal | 12V SC Bayonet
| SKU(s) | CL-365B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 5-1/8" |
| Height | 3-1/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The 3 Louver Brass Step Light is an architectural-grade outdoor lighting fixture, built for long-lasting performance and designed to enhance both safety and aesthetics in stairways, walkways, patios, decks, and masonry walls. Constructed from heavy-duty, corrosion-resistant solid brass, this step light ensures superior durability and timeless appeal, available in Antique Bronze and Gun Metal finishes.
Its three-louver design paired with a frosted, heat-resistant glass lens delivers soft, glare-free illumination, perfect for lighting stairs, retaining walls, and outdoor pathways. The S.C. Bayonet socket with aluminum reflector supports 12V SCB lamps up to 27W halogen (lamp not included) and is fully LED compatible for energy-efficient lighting solutions.
The fixture comes prewired with a 3ft 18-2 SPT1-W direct burial cord for easy installation. A recessed mount back box with 3x 1/2" NPT inlets offers flexible wiring options, making it ideal for concrete, brick, and other masonry installations.
Backed by a limited lifetime warranty on the solid brass housing, the 3 Louver Step Light combines rugged construction, elegant finishes, and reliable performance for high-end residential and commercial applications.
Key Features:
Solid brass construction with Antique Bronze & Gun Metal finishes
3 louver design for shielded, glare-free illumination
Frosted, heat-resistant glass lens for soft lighting effect
S.C. Bayonet socket with aluminum reflector
Lamp type: 12V SCB, 27W halogen max (lamp not included)
LED compatible for long-lasting, efficient lighting
Prewired with 3ft 18-2 SPT1-W direct burial cord
Recessed mount back box with 3x 1/2" NPT inlets
Best suited for concrete, brick, and masonry applications
Limited lifetime warranty on brass housing
$97.25 /each

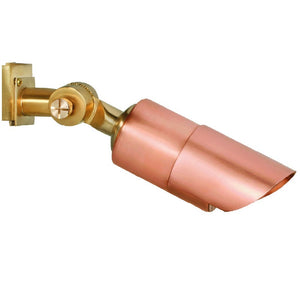

| SKU(s) | CL-114C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3/8" |
| Length | 6-3/4" |
| Height | 4-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$158.45 /each
| SKU(s) | CL-222-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 3W |
| Voltage | 12V |
| Lumens | 210LM |
| Color Temp | 3000K |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 5-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$133.25 /each
| SKU(s) | CL-395B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$106.25 /each

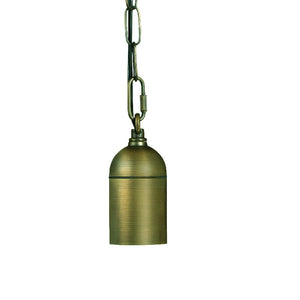

| SKU(s) | CL-392-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/4" |
| Length | 2-1/4" |
| Height | 2-1/2" |
| Diameter | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | a 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
