SKU(s) | P-11 |
UPC | 076335626352 |
Max. Voltage | 600v max building wiring; 1000v max in fixtures and signs |
Wire Range | 2 or 3 #14; 3 #16; 2 #18 solid or standard; 4 #18 |
Temperature | 105°C (221°F) Max |
Quantity | 500 Pieces |

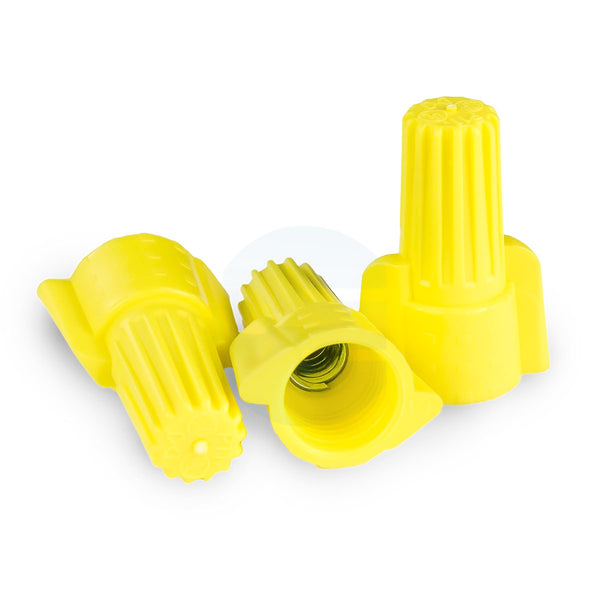

These wire connectors have a high temperature and voltage rating that makes them perfect for any job, big or small. They are rated up to 600v for building wiring and up to 1,000v for fixtures and signs.
Providing a safe connection between multiple types of wires is the reason you're shopping for high quality wire connectors. The knowledgeable electrical contractor buys from us because of the superior quality of our products! Our pressure type wire connectors are UL and CSA Listed, so you can be sure that your wirings are safe and secure.
We are so confident in our products' unmatched quality and pricing that we are willing to match the price of any comparable product. If you believe you have found a better price for certified wire connectors: Request a quote and include a link to the lowest priced product.
$24.75 /each
SKU(s) | P-12 |
UPC | 076335626307 |
Max. Voltage | 600v max building wiring; 1000v max in fixtures and signs |
Wire Type | Voltage rating 600v max: 1 #14 with 1 #18; 1 #18 with 1 #22 Voltage rating 300v max: 1 to 3 #10; 2 or 3 #12;2 to 4 #14; 3 to 5 #16; 5 to 9 #18; 2 #20; 3 #22 solid; 6 #22; 1 #8 standard with 2 #14 |
Temperature | 105°C (221°F) Max |
Quantity | 500 Pieces |
$10.99 /each
SKU(s) | P-2 |
UPC | 076335151298 |
Max. Voltage | 300v Max |
Wire Range | 1 #14; 1 #14 with 1 #16; 1 #14 with 1 or 2 #18; 1 #14 with 1 to 3 #20; 1 #14 with 1 to 3 #22; 1 #16; 1#16 with 1 to 3 #18; 1 #16 with 1 #18 with 1#20; 1 #16 with 1 to 4 #20 or #22; 1 #16 with 1 #22 with 1 #18 or #20; 2 or 3 #16; 2 #16 with 1 #18; 2 #16 with 1 or 2 #20; 2 #16 with 1 to 3 #22 |
Temperature | 105°C (221°F) Max |
Quantity | 500 Pieces |
$18.60 /each
SKU(s) | P-6 |
UPC | 076335626208 |
Max. Voltage | 600V max building wiring |
Wire Range | 6 #18; 2 to 4 #14; 2 to 3 #12; 2 #10; 3 #12; 1 #12 with 2 #14; 2 #12 with 1 #14; 1 310 with 2 #14; 1 #10 with 1 #12; 3 #14 with 1 #18 or 1 #16; 1 #12 + 2; 4 #16; 2 #12 with 2 #16; 2 #12 with 2 #18 or #16; 1 #10 solid + 1; 4 #16 solid; 1 #10 + 1; 3 #16; 2 #10 with 1 #16 |
Temperature | 105°C (221°F) |
Quantity | 500 Pieces |
