96W LED Driver 5-IN-1 Dimmable With Junction Box | Ribbon Lighting Series

96W LED Driver 5-IN-1 Dimmable with Junction Box | Ribbon Lighting Series | 24V DC Output

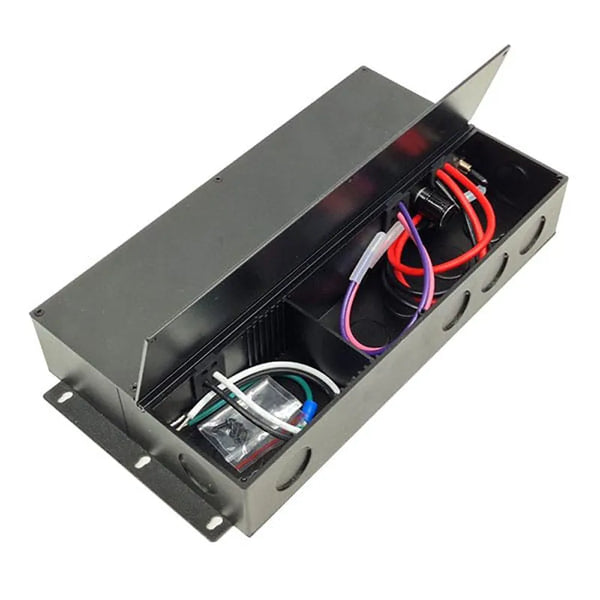

The 96W LED Driver 5-IN-1 Dimmable from the Ribbon Lighting Series is a powerful and flexible lighting power supply designed to support multiple dimming protocols and deliver reliable, high-performance LED lighting control. Featuring a built-in junction box, this driver offers ease of installation and is ideal for both indoor and outdoor lighting applications.

⚡ Key Specifications

• Output Power: 96W

• Output Voltage: 24V DC (Range: 18–25V)

• Output Current: 4 channels, up to 4A each (max total)

• Input Voltage Range: Wide range 100–277VAC compatible with global power supplies

• Power Efficiency: 85% at 220V AC ensuring energy-saving performance

• Power Factor: 0.95 for efficient electrical consumption

• Output Ripple & Noise: ≤600mV for smooth, flicker-free lighting

• Surge Current (Cold Start): 20A peak at 277VAC for robust startup performance

• Input Frequency: 50-60Hz for broad compatibility

🛡 Comprehensive Safety and Protection

• Short-Circuit Protection: Hiccup mode with automatic recovery to protect LED fixtures and the driver

• Over-Voltage Protection: Automatically shuts down output if voltage exceeds 28V, with auto recovery

• Leakage Current: Less than 0.75mA for safe operation

• Vibration Resistance: Tested at 10~500Hz, 1.0mm displacement for 15 minutes on X, Y, Z axes

• Operating Temperature: From -22°F to 140°F (-30°C to 60°C), suitable for various environments

• Storage Conditions: Temperature range from -40°F to 176°F and humidity tolerance from 10% to 95% RH

• Suitable for Dry, Damp, and Wet Locations: Certified for versatile lighting applications

• Maximum Case Temperature (Tcase): 194°F (90°C)

🎛 Advanced 5-IN-1 Dimming Functionality

The 96W LED driver supports 5 different dimming control protocols, providing maximum flexibility to integrate with different lighting control systems:

• TRIAC

• 0-10V

• PWM

• Resistance

• DMX (where applicable)

This allows tailored lighting effects for commercial, architectural, residential, and hospitality lighting installations.

✅ Ideal Applications

• LED strip, tape, and rope lighting requiring multi-channel dimmable power

• Indoor and outdoor commercial and residential lighting setups

• Lighting systems needing high reliability with integrated junction box for easy wiring

• Projects demanding energy efficiency, safety, and versatile dimming control
