60W LED Driver 5-IN-1 Dimmable With Junction Box | Ribbon Lighting Series

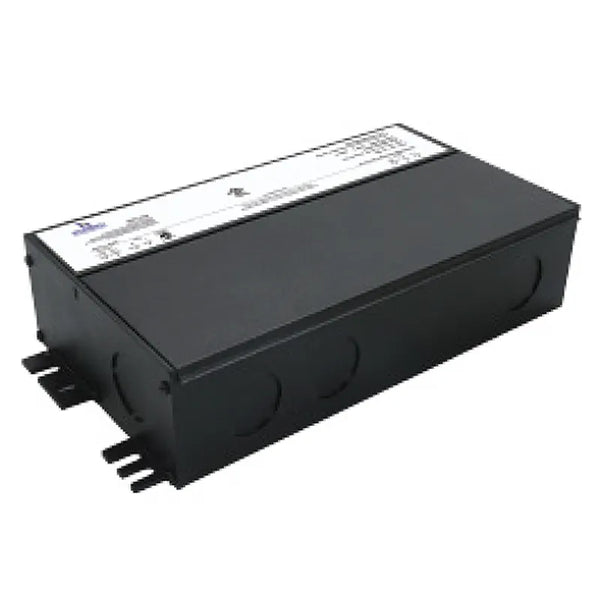

60W LED Driver 5-IN-1 Dimmable with Junction Box | Ribbon Lighting Series | 24V DC Output

The 60W LED Driver 5-IN-1 Dimmable from the Ribbon Lighting Series is a versatile and reliable power supply solution designed for a wide range of indoor and outdoor LED lighting applications. Featuring a built-in junction box and five dimming options, this driver supports flexible control while delivering stable 24V DC output with high efficiency and comprehensive protection features.

⚡ Key Performance Features

• Output Power: 60W

• Output Voltage: 24V DC (Range: 18–25V)

• Maximum Output Current: 2.5A

• Input Voltage Range: Wide 100–277VAC for compatibility with various power sources

• Power Efficiency: High efficiency at 87% (@ 220V AC)

• Power Factor: 0.95 for energy-efficient operation

• Low Output Ripple & Noise: ≤600mV for smooth, flicker-free lighting

• Surge Current (Cold Start): 20A peak, 1.6ms at 120VAC

🛡 Advanced Safety and Protection

• Short-Circuit Protection: Hiccup mode with automatic recovery to prevent damage

• Over-Voltage Protection: Output shuts down automatically if voltage exceeds 28V, with auto recovery

• Leakage Current: Less than 0.75mA ensuring safety and compliance

• Vibration Resistance: Tested for 10~500Hz, 1.0mm displacement over 15 minutes on all axes for durability

• Operating Temperature: -22°F to 140°F (-30°C to 60°C) suitable for harsh environments

• Storage Conditions: Temperature from -40°F to 176°F with humidity tolerance from 10% to 95% RH

• Suitable for Dry, Damp, and Wet Locations: Certified for versatile indoor and outdoor use

• Thermal Management: Maximum case temperature (Tcase) at 194°F (90°C) ensures safe operation

🎛 Flexible Dimming Compatibility

Equipped with a 5-IN-1 dimming function, this LED driver supports multiple dimming protocols for seamless integration with a variety of control systems:

• TRIAC

• 0-10V

• PWM

• Resistance

• DMX (where applicable)

This versatility allows customized lighting control for commercial, retail, architectural, and residential LED installations.

✅ Ideal Applications

• LED strip lighting, tape lights, and rope lights requiring dimmable power supply

• Indoor and outdoor lighting projects needing robust protection and flexible dimming

• Retail, hospitality, office, and residential environments

• Installations demanding reliable power with junction box integration for easy wiring
