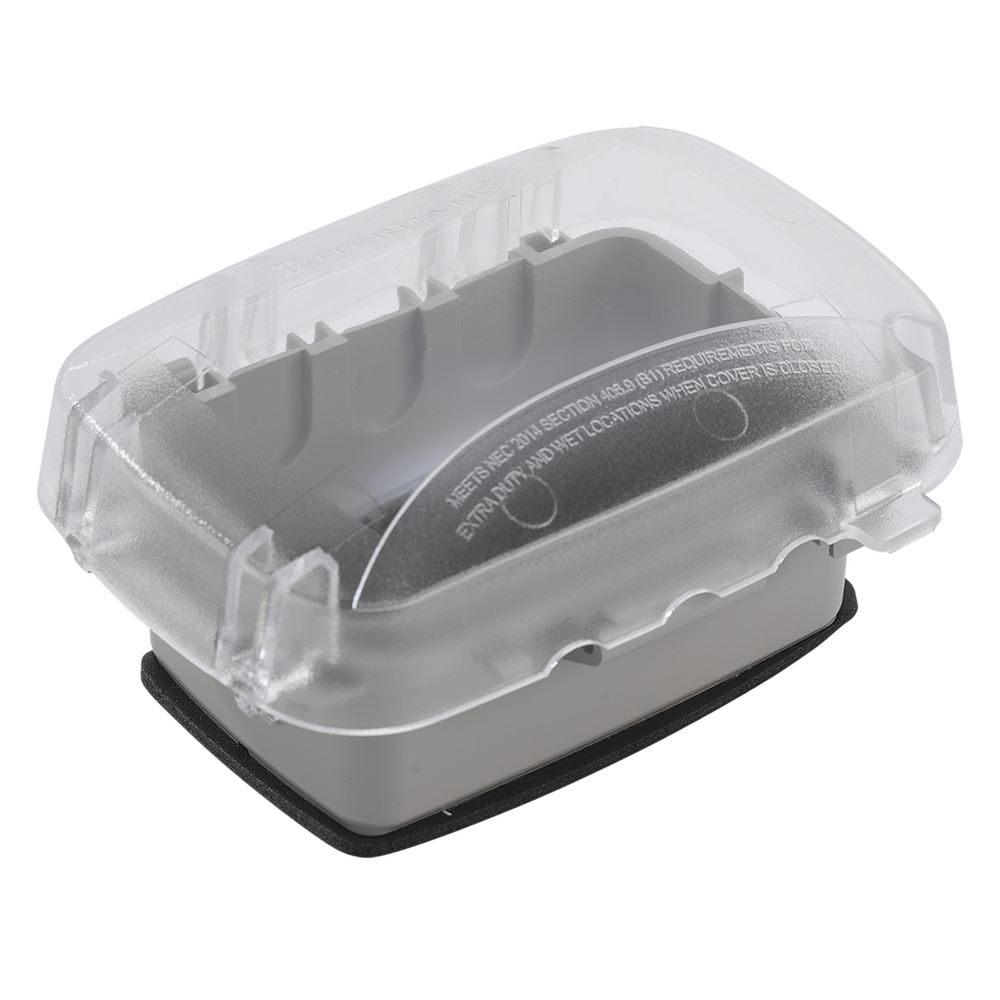

1-Gang Bubble Cover Weatherproof | Horizontal/Vertical Mounting | Extra-Duty Plastic | WP5100C

The WP5100C Extra-Duty Plastic In-Use Weatherproof Cover is engineered to deliver maximum protection for outdoor electrical outlets in wet, harsh, and demanding environments. Designed for single-gang applications, this cover supports both vertical and horizontal mounting and allows cords to remain connected while maintaining full weatherproof protection.

Manufactured from heavy-duty UV-stabilized polycarbonate, the WP5100C resists cracking, fading, and impact damage even under prolonged sun exposure and extreme temperatures. It is extra-duty rated and fully compliant with 2020 NEC Article 406.9(B)(1) for wet locations, as well as CEC Article 26-702, making it suitable for commercial, residential, and industrial installations.

This in-use cover is UL certified for Type 3R outdoor enclosures and meets cold impact testing down to -60°F (-51°C), ensuring dependable performance year-round. A reinforced hinge pin exceeds a 40 lbf stress test, while a 12 lbf impact rating ensures the cover remains intact during accidental impacts.

The clear, low-profile cover provides full device visibility while protecting receptacles from rain, snow, dirt, and debris. A lockable hasp accepts padlocks up to 1/4″ (6 mm) diameter for added security. Each kit includes a 3 mm neoprene gasket, mounting base, cover assembly, screws, and inserts—delivering a complete, installer-friendly solution right out of the box.

Technical Specifications

• Model Number: WP5100C

• Product Type: In-Use Weatherproof Cover

• Gang Size: Single-Gang

• Mounting Orientation: Vertical / Horizontal

• Material: UV-Stabilized Polycarbonate Plastic

• Color: Clear (Gray base)

• Enclosure Rating: UL Type 3R Outdoor

• Extra-Duty Rated: Yes

• NEC Compliance: 2020 NEC 406.9(B)(1)

• CEC Compliance: Article 26-702

• Cold Impact Rating: −60°F (−51°C)

• Impact Rating: 12 lbf

• Hinge Strength: Reinforced hinge pin, exceeds 40 lbf stress test

• Gasket: 1/8″ (3 mm) Neoprene

• Lockable Hasp: Accepts up to 1/4″ (6 mm) shank

• Accepted Cord Size (Max):

  • 1 × 12 AWG

  • 2 × 14 AWG

• Electrical Box Shape: Rectangle

• Dimensions:

  • Depth: 2.75″ (70 mm)

  • Height: 6.33″ (160.3 mm)

  • Width: 4.66″ (119.1 mm)

• UL Certification: cULus Listed

• RoHS: No

• Prop 65: Compliant

• Country of Origin: Mexico

• Warranty: 1-Year Limited

Key Features & Benefits

• Extra-duty rated for wet and outdoor locations

• Clear cover allows visibility of receptacles and devices

• Supports cords while maintaining weatherproof seal

• UV-stabilized plastic resists fading and cracking

• Lockable hasp for added safety and security

• Reinforced hinge for long service life

• Easy installation with included gasket, inserts, and hardware

Typical Applications

• Outdoor receptacles

• Patios, decks, and balconies

• Commercial storefronts

• Garages and workshops

• Industrial and utility installations
