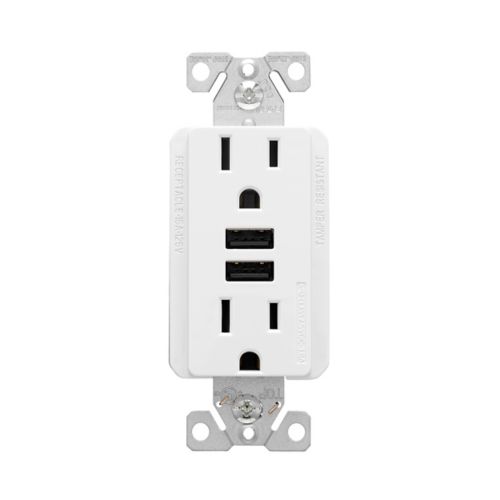

The Eaton TR7765W-BOX is a high-performance combination USB charger and duplex receptacle, designed to deliver both power and charging convenience in a single device. Featuring dual USB Type-A charging ports delivering 3.6A total output, this unit allows users to charge smartphones, tablets, cameras, and portable electronics without requiring bulky charging adapters.

Built to Eaton’s tamper-resistant safety standards, this 15A, 125V duplex receptacle includes internal shutters that prevent accidental insertion of foreign objects, making it ideal for homes, offices, hospitality applications, and commercial environments.

Constructed from durable thermoplastic material with reliable brass electrical contacts, the TR7765W ensures long-term performance. The device installs easily via screw terminal wiring, accommodates #12–14 AWG conductors, and fits into standard wall boxes with a flush-mount decorator-style design for a clean, modern finish.

Certified cULus Listed, this combination USB outlet is designed for safe, efficient, and code-compliant operation.

⚙️ Key Features

• 3.6A USB Type-A charging built into the device

• 15A, 125V duplex receptacle

• Tamper-resistant (TR) safety shutters

• Decorator/Decora style for modern appearance

• Brass contacts for reliable conductivity

• Durable thermoplastic construction

• Screw terminal wiring for easy installation

• Supports #12–14 AWG wires

• Flush mount design fits standard wall boxes

• NEMA 5-15R configuration

• Retail box packaging

• cULus listed for safety and compliance

🧾 Technical Specifications Table

🏭 Ideal Applications

• Residential bedrooms, kitchens, living rooms

• Office workstations

• Hotels and hospitality

• Airports, waiting areas, and public charging spaces

• Classrooms and libraries
