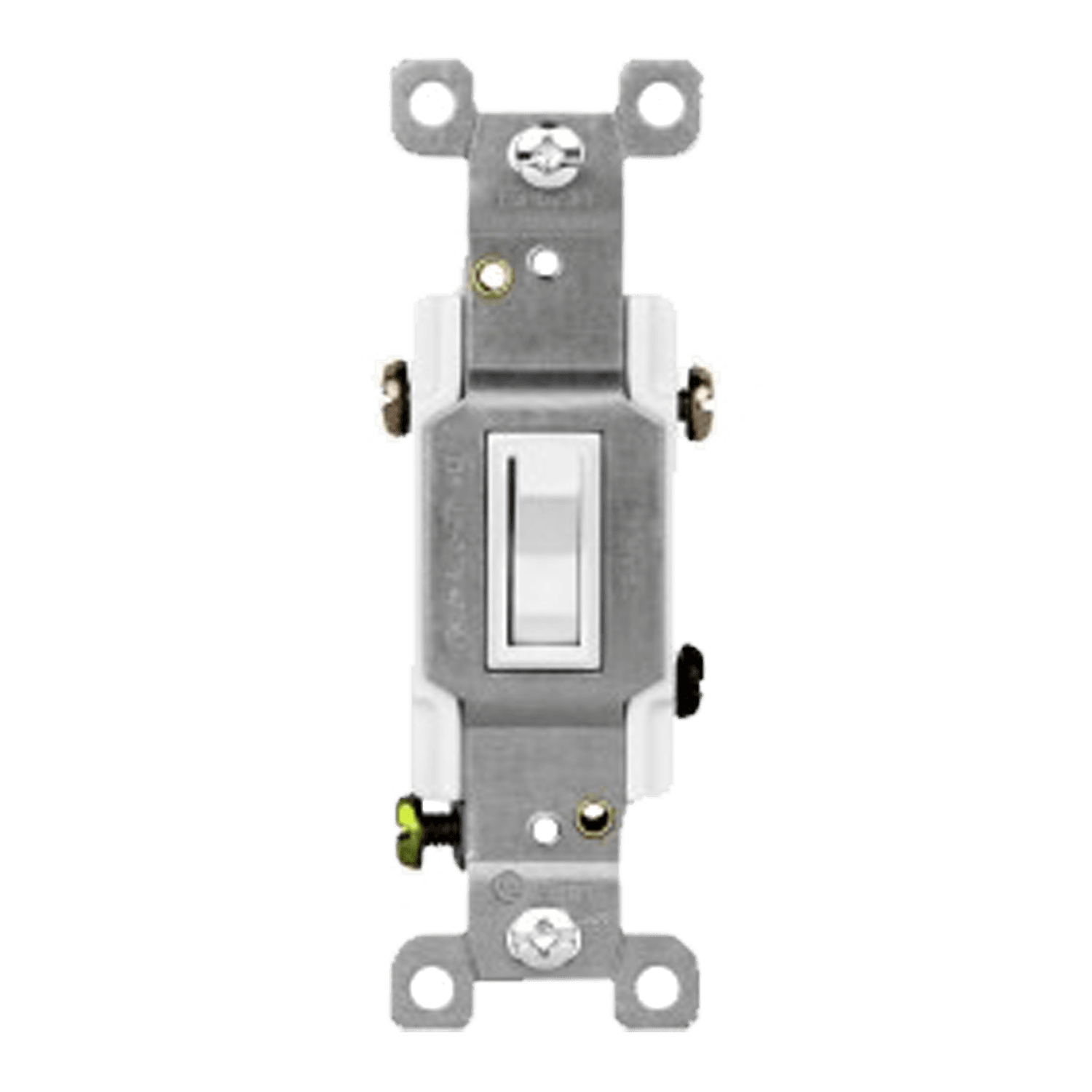

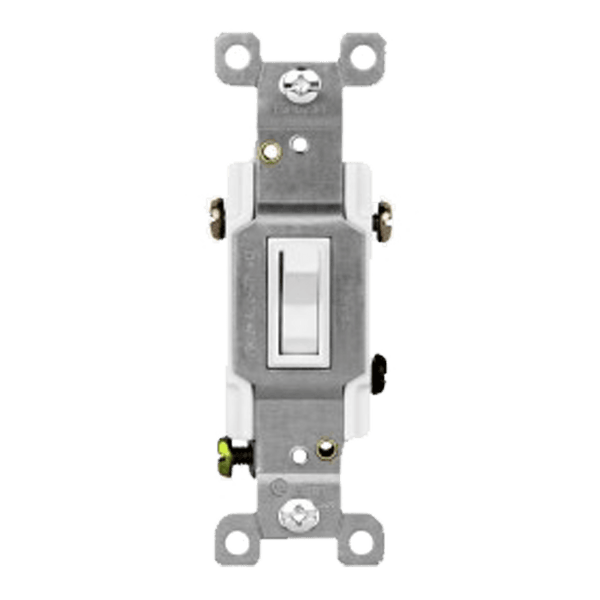

20Amp 1-Gang 3-Way Toggle Switch | 120/277V | Commercial Grade | Side & Push Wire
Upgrade your electrical systems with the Enerlites 83200 Commercial Grade 20A Three-Way Toggle Switch, designed for heavy-duty performance and long-lasting reliability in both residential and commercial applications.
This UL-listed toggle switch features a thermoplastic body for impact resistance and a galvanized steel mounting strap that resists corrosion, ensuring years of dependable use even in demanding environments. With its combination side-wiring and push-in wiring design, installation is faster and easier, supporting #14 AWG solid copper wire for a secure connection.
Perfect for controlling lighting or other electrical loads from two locations, this 20-amp, 120/277V switch is ideal for offices, schools, retail stores, and other commercial spaces where durability and safety are essential.
Engineered for performance and safety, the Enerlites 83200 meets UL94 V2 flammability standards and operates reliably in extreme temperatures ranging from -104°F (without impact) to 167°F continuous. Large head combination screws and removable yoke tabs allow for easy alignment and professional installation every time.
| Specification | Details |
|---|---|
| Part Number | 83200 |
| Current Rating | 20 Amps |
| Voltage Rating | 120/277 VAC |
| Switch Type | Three-Way |
| Material | Thermoplastic body, galvanized steel strap |
| Wiring Type | Side wiring and push-in terminals |
| Wire Compatibility | #14 AWG solid copper wire |
| Grounding | Green hex head ground screw |
| Mounting | Standard single-gang wall box |
| Temperature Range | -104°F (no impact) to 167°F continuous |
| Flammability Rating | UL94 V2 |
| Warranty | 2 Years |
| Certification | UL Listed |
Commercial-grade 20A, 120/277V three-way toggle switch
Thermoplastic construction for strength and impact resistance
Side and push-in wiring simplifies installation
Galvanized steel mounting strap resists corrosion
Removable yoke tabs for precise alignment
Combination head screws for fast and easy wiring
Green hex head grounding screw ensures secure connection
Suitable for residential, commercial, and institutional applications
UL Listed and 2-year warranty for safety and reliability
Commercial lighting systems
Multi-location lighting control setups
Office, retail, and hospitality environments
Residential homes and renovations
Schools and institutional buildings
| SKU(s) | 83200-W |
| UPC | 883951412135 |
| Color | White | Ivory |
| Color | White & Ivory |
| Voltage | 120VAC / 277VAC |
| Wire | 12 or 14 AWG copper wires |
| Certs |
|
