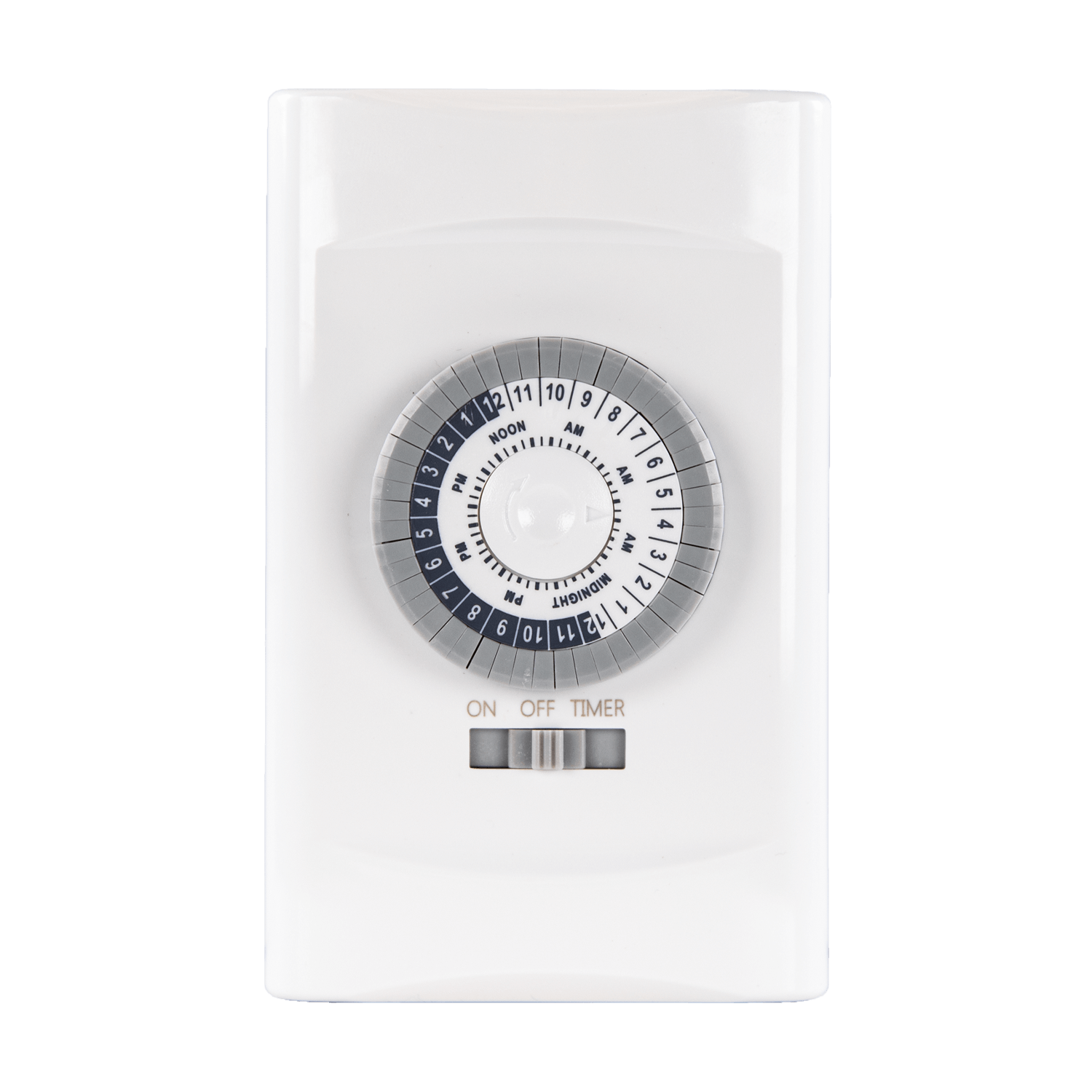

24-Hour Mechanical In-Wall Timer Switch | 120V/15Amp | Enerlites HMT01N

The ENERLITES HMT01N 24-Hour Mechanical In-Wall Timer Switch provides a simple, reliable, and energy-saving solution for automatically controlling lighting and electrical loads in residential and light commercial applications. Designed for ease of use, this timer features a mechanical dial clock that allows users to quickly set schedules without complex programming.

Installation is straightforward thanks to three color-coded wires, making it easy to replace a standard wall switch or existing timer. The ON/OFF pins are built directly into the dial, reducing the risk of lost parts while allowing up to 24 programmable ON/OFF settings per day. Time intervals range from a minimum of 30 minutes to a maximum of 23 hours and 30 minutes, offering flexible daily control.

A manual override switch allows the connected load to be turned ON or OFF at any time without disrupting programmed settings. The timer is compatible with CFL, incandescent, and LED lighting, making it ideal for controlling indoor or outdoor lights, fans, and other scheduled loads.

For added convenience and reliability, the ENERLITES HMT01N includes features such as automatic daylight savings time adjustment, random mode for security, and a built-in battery backup that retains programming for up to 14 days during power outages. Backed by a 2-year warranty and UL Listed for safety, this in-wall timer switch delivers dependable performance with long-term value.

Technical Specifications

• Brand: ENERLITES

• Model: HMT01N

• Device Type: 24-Hour Mechanical In-Wall Timer Switch

• Operation: Mechanical Dial

• Programmable Settings: Up to 24 ON/OFF settings per day

• Minimum Time Interval: 30 minutes

• Maximum Run Time: 23 hours 30 minutes

• Switch Type: Single Pole or 3-Way

• Lighting Compatibility: CFL, Incandescent, LED

• Special Functions:

  • Manual override ON/OFF

  • Random program function (security mode)

  • Automatic daylight savings time adjustment

• Display: Back-lit LCD screen

• Power Backup: Built-in battery (stores programs up to 14 days)

• Wiring Requirement: Neutral wire required

• Certification: UL Listed

• Warranty: 2-Year Manufacturer Warranty

• Typical Applications: Lighting control, fans, outdoor lighting, energy management
