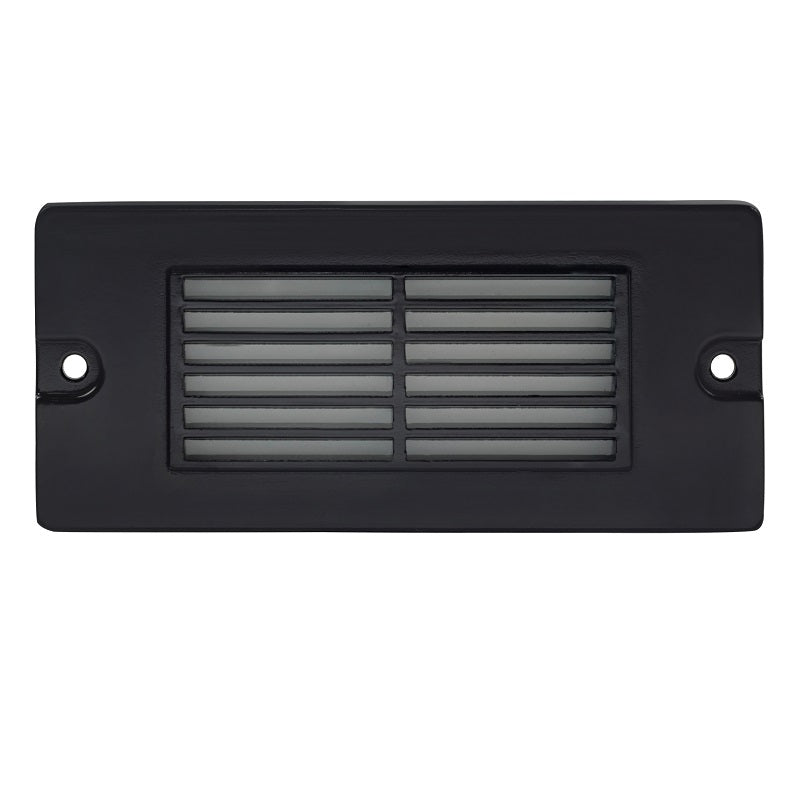

5.5″ Small Louvered Step Light | Backless Box | Integrated LED
| SKU(s) | CL-345-BK |
| Color | Black | Bronze |
| Lamp | 2.5W |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 5-1/2" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 25ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The 5½” Small Louvered Backless Box Step Light is a sleek, architectural-grade fixture designed for stairs, pathways, patios, and retaining walls. Featuring a backless design, it mounts directly onto concrete, brick, or other masonry surfaces with no recessed box required.
Constructed from premium corrosion-resistant die-cast aluminum, this step light is available in Black and Bronze finishes. Its frosted lens is paired with a stainless steel backplate to deliver soft, glare-free illumination with excellent light control.
Equipped with an integrated removable 2.5W LED module (12V, 250 lumens, 3000K warm white), this fixture is dimmable, highly energy-efficient, and equivalent to a 20W halogen lamp with a 30,000-hour lifespan.
✔ Housing: Die-cast aluminum, no back box required
✔ Lens: Frosted, glare-reducing lens with stainless steel backplate
✔ Lamp: 2.5W integrated LED module, 12V, 250 lm, 3000K, halogen equivalent
✔ Prewired with 25-ft 18-2 SPT2-W burial cord for easy installation
✔ Surface mount with two included screws and anchors
✔ Requires remote 12V magnetic transformer (not for use with electronic transformers)
✔ Dimmable LED for adjustable brightness
✔ Backed by a 10-year housing warranty against manufacturer defects
Perfect for architectural step lighting, landscape designs, safety illumination, and upscale outdoor projects.
$52.25 /each
| SKU(s) | CL-521-BK |
| Color | Black | Bronze | Silver | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Silver, White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 7" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$73.85 /each
| SKU(s) | CL-641-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 12" / 18" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$225.00 /each
| SKU(s) | CL-723-T-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$50.45 /each
| SKU(s) | CL-516-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-1/2" |
| Height | 6-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
