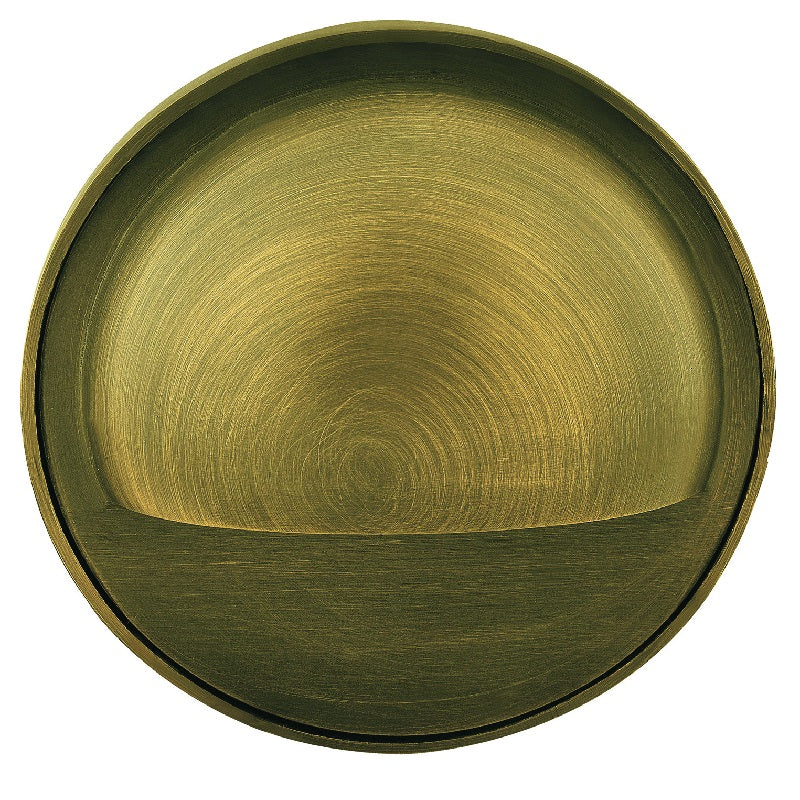

Brass Half-Moon Surface Brick-Step Light | Multiple Finishes | 12V T3
| SKU(s) | CL-343B-AB |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-3/8" |
| Length | 3-3/8" |
| Height | 3-3/8" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Brass Half-Moon Surface Brick-Step Light delivers both style and durability for outdoor architectural lighting. Constructed from corrosion-resistant cast brass, this fixture is available in Antique Bronze, Gun Metal, and Silver Plated finishes, offering a premium look for steps, walls, and masonry surfaces.
Designed with a half-moon faceplate and frosted, heat-resistant flat glass lens, the fixture provides smooth, glare-free illumination. It features a top-grade bi-pin socket designed for 12V T3 lamps (20W max, halogen or LED equivalent – lamp not included).
For convenience, the step light comes prewired with an 18-2 SPT1-W direct burial cord, compatible with optional silicone-filled wire nuts (CX-854) for secure connections. The surface-mount installation with included mounting plate ensures simple setup on brick, concrete, or other masonry surfaces.
Electrical performance supports a 9–17V operating range with LED lamps, requiring a remote 12V magnetic transformer (sold separately). Built to last, this fixture is backed by a limited lifetime warranty on the brass housing against manufacturer defects.
Key Features:
Half-moon surface-mount step light for architectural applications
Constructed from heavy-duty, corrosion-resistant cast brass
Available in Antique Bronze, Gun Metal, and Silver Plated finishes
Frosted, heat-resistant glass lens reduces glare and softens illumination
Bi-pin socket for 12V T3 lamp (20W max, lamp not included)
Prewired with 18-2 SPT1-W direct burial cord
Surface-mount installation with included mounting plate – ideal for brick, concrete, and masonry steps
Operates within 9–17V range when paired with LED lamps
Requires a remote 12V transformer (sold separately)
Limited lifetime warranty on brass housing
$120.65 /each
| SKU(s) | CL-311-AB |
| Color | Antique Bronze | Natural Brass |
| Size | 30" |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-1/2" |
| Length | 3-1/2" |
| Height | 2-3/4" |
| Diameter | 3-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$126.00 /each
| SKU(s) | CL-369B-AB |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 8-1/4" |
| Height | 3-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$68.45 /each
| SKU(s) | CL-361C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Raw Copper |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$144.00 /each
| SKU(s) | CL-450-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 3" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
